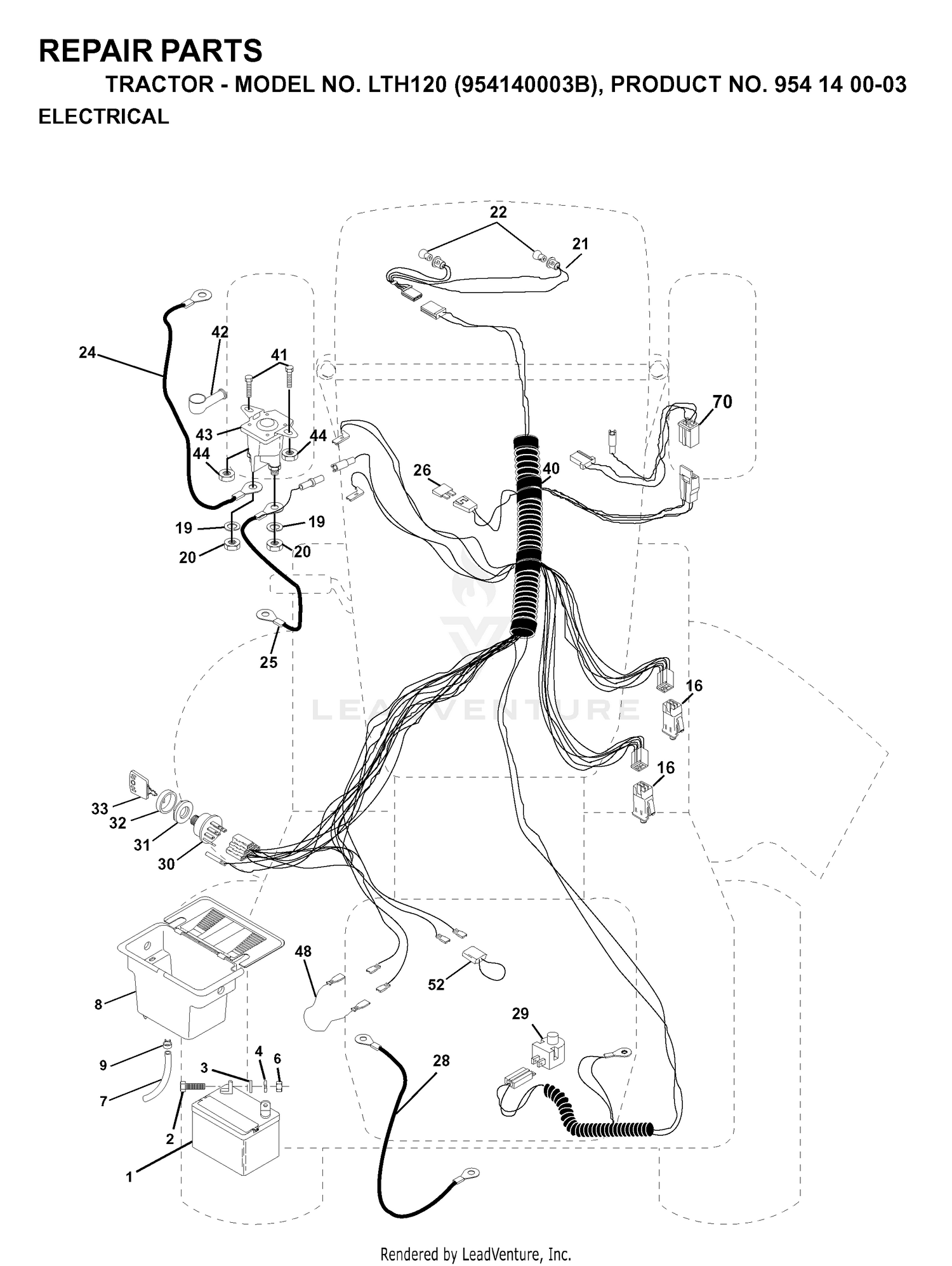

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144925. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 4 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 8 |
532404349 |
KIT.BOX.BATTERY.REAR.BOOT.POS This part replaces 532156417. Price: $24.99 |
| 9 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 10 |
127-0451 |
CRANKCASE ASM Price: $2,513.65 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN This part replaces 532153664. Price: $19.99 |
| 19 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 21 |
532136850 |
HARNESS LIGHT SOCKET Price: $15.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532140301 |
SWITCH.IGNITION.4.POSITION Price: $32.99 |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 31 |
532124211 |
NUT IGNITION Price: $4.99 |
| 32 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 33 |
532122147 |
KEY.MOLDED.GENERIC Price: $5.99 |
| 40 |
532156442 |
HARNESS IGN Price: $89.99 |
| 40 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 44 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 70 |
532140413 |
HARNESS, ENGINE Price: $14.99 |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 80 |
98-9379 |
PLUG-EXPANSION Price: $0.76 |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 120 |
98-9376 |
PIN-STRAIGHT Price: $0.41 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
105-3796 |
PIN-SPRING, START Price: $5.31 |
| 170 |
120-3121 |
DRAINCOCK ASM Price: $16.19 |
| 180 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 190 |
98-7654 |
GASKET Price: $8.84 |
