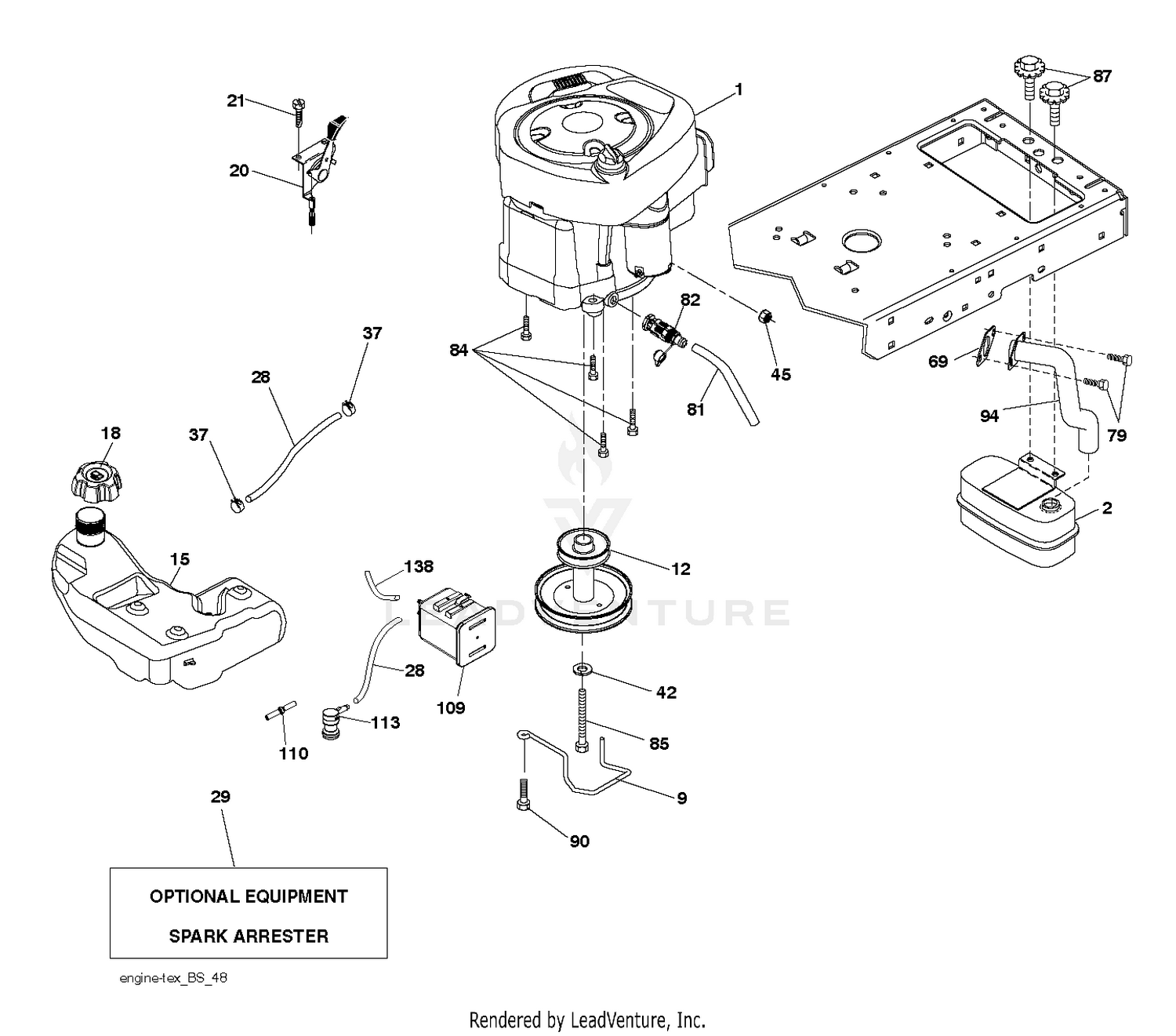

| Ref | Part Number | Description |
|---|
| 1 |
110-0641 |
COLLAR-HOC Price: $58.06 |
| 2 |
107-7915 |
WASHER-THRUST Price: $1.97 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S This part replaces 580532301. Price: $29.99 |
| 3 |
3290-256 |
PIN-HAIR Price: $1.01 |
| 4 |
107-7904 |
PIN-CLEVIS Price: $36.06 |
| 5 |
325-12 |
SCREW-HH Price: $2.27 |
| 6 |
3296-45 |
NUT-HEX Price: $3.79 |
| 7 |
105-2808 |
END-ROD Price: $88.58 |
| 8 |
3220-5 |
NUT-JAM Price: $0.65 |
| 9 |
107-7284 |
TUBE-HOC Price: $116.83 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 This part replaces 584911602. Price: $7.99 |
| 10 |
117-0806 |
LH LIFT ARM ASM Price: $900.19 |
| 11 |
117-0800 |
RH LIFT ARM ASM Price: $900.19 |
| 12 |
107-3457 |
PIN-CLEVIS Price: $5.89 |
| 12 |
586729001 |
PULLEY.ENGINE Price: $24.99 |
| 13 |
98-2330 |
PIVOT PIN ASM Price: $62.61 |
| 14 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 15 |
3213-20 |
SCREW-HH Price: $1.76 |
| 15 |
532420722 |
TANK ASM.FUEL.3 Price: $119.99 |
| 16 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 18 |
585124802 |
CAP ASSY FUEL 3" BLACK Price: $11.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $22.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 85 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 Price: $17.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $32.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $17.99 |
| 113 |
532414127 |
VALVE.SLANT.CARTRDG.90 DEG.TEX Price: $24.99 |
