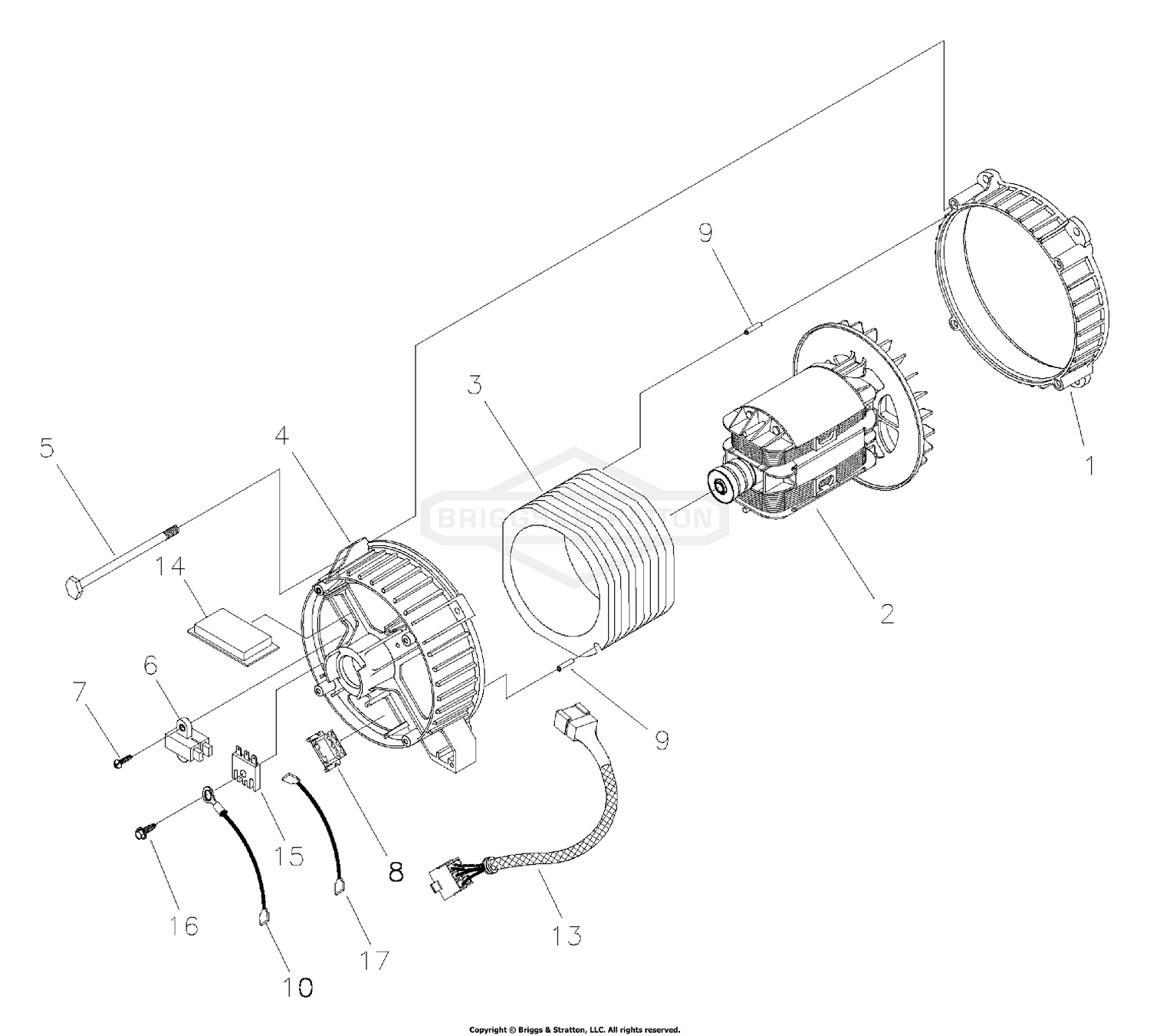

| Ref | Part Number | Description |
|---|
| 1 |
209599GS |
ADAPTER, Alternator This part replaces 186059GS. Price: $33.00 |
| 2 |
193034GS |
ROTOR Price: $222.59 |
| 3 |
193035AGS |
STATOR Price: $249.09 |
| 4 |
193336GS |
RBC, (with O-Ring p/n 189197GS) This part replaces 186060GS. Price: $36.50 |
| 5 |
86308GS |
SCREW Price: $2.60 |
| 6 |
66386GS |
ASSY, Holder, Brush Price: $21.52 |
| 7 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 8 |
22694GS |
RECEPTACLE, 6 pin Price: $5.44 |
| 9 |
81917GS |
PIN, Roll Price: $2.79 |
| 10 |
193428AGS |
ASSY,Wire, Ground Price: $2.77 |
| 13 |
193157GS |
HARNESS,Wire, Power Price: $36.03 |
| 14 |
205858GS |
BOARD, Circuit, System Control This part replaces 189769GS. Price: $98.29 |
| 15 |
65795GS |
RECTIFIER Price: $10.80 |
| 16 |
66849AGS |
SCREW Price: $4.02 |
