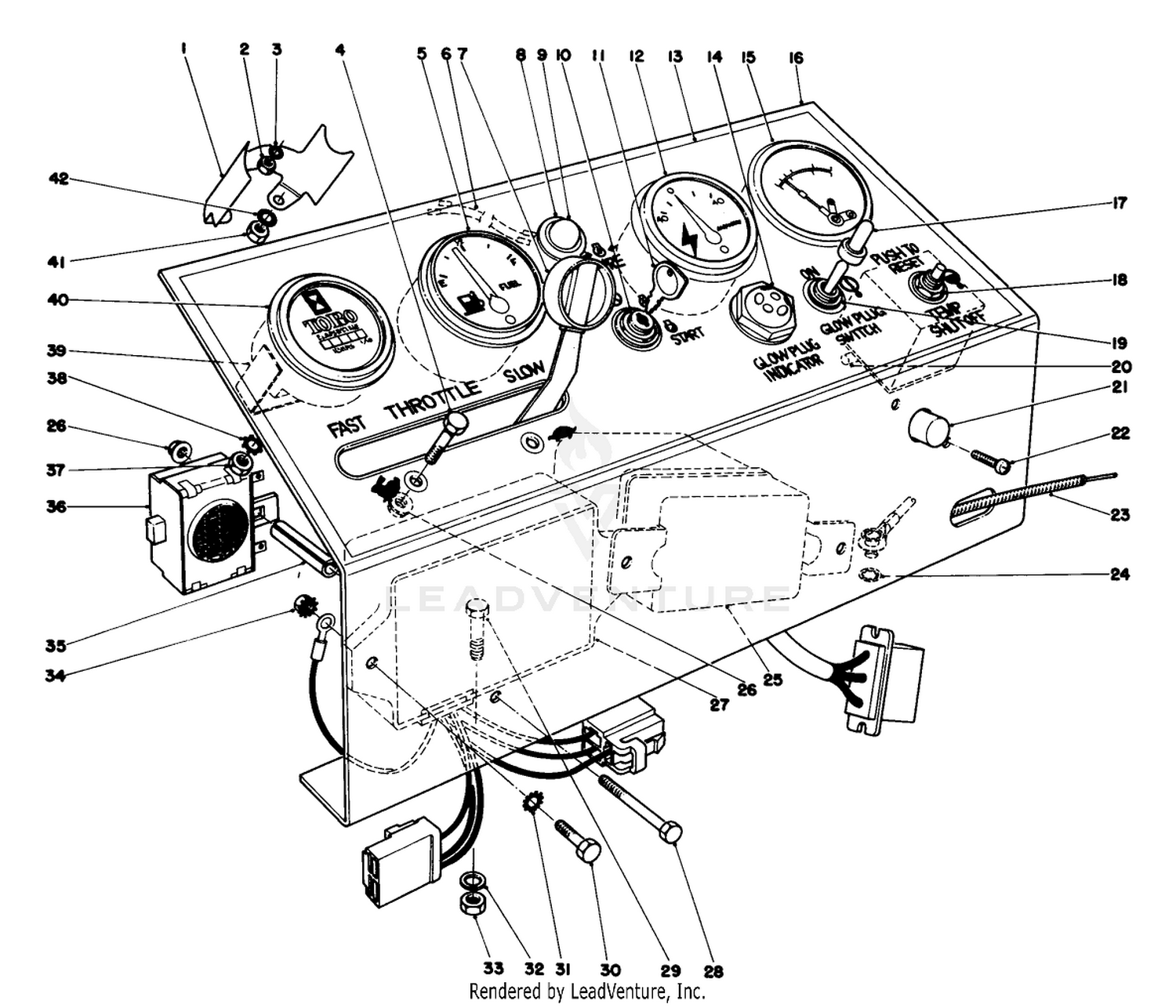

| Ref | Part Number | Description |
|---|
| 2 |
3217-29 |
NUT-HEX Price: $0.25 |
| 3 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 4 |
3290-134 |
SCREW Price: $0.27 |
| 5 |
38-1650 |
FUEL GAUGE Price: $185.83 |
| 6 |
44-2220 |
LEAD WIRE ASM Price: $9.24 |
| 7 |
233-35 |
KNOB Price: $8.06 |
| 8 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 9 |
218-533 |
LENS Price: $17.62 |
| 10 |
27-2360 |
SWITCH Price: $46.56 |
| 11 |
62-7770 |
KEY-IGNITION This part replaces 218-412. Price: $4.39 |
| 12 |
83-0820 |
GAUGE - AMMETER This part replaces 38-1660. Price: $76.09 |
| 13 |
43-3980 |
INST PANEL DECAL Price: $32.94 |
| 14 |
42-9190 |
GLOW LAMP (F/W & PPP) Price: $89.59 |
| 15 |
26-6750 |
ENG TEMP SWITCH GAGE Price: $332.79 |
| 16 |
43-3970-03 |
INSTRUMENT PANEL This part replaces 43-3970. Price: $111.29 |
| 17 |
218-473 |
BOOT-SWITCH Price: $17.61 |
| 18 |
26-6740 |
TEMP RESET RELAY Price: $165.84 |
| 19 |
6-1659 |
SWITCH & BOOT ASM Price: $78.15 |
| 21 |
43-4000 |
CIRCUIT BREAKER Price: $116.55 |
| 22 |
3250-17 |
SCREW-PPH Price: $1.76 |
| 23 |
43-3990 |
CONTROL-THROTTLE Price: $49.39 |
| 24 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 25 |
43-0410 |
REGULATOR (F/W & PPP) Price: $416.45 |
| 26 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 27 |
43-1880 |
CONT UNIT (F/W ENG&PPP) Price: $434.93 |
| 28 |
3290-424 |
SCREW-SHH Price: $2.54 |
| 29 |
322-3 |
SCREW-HH Price: $0.79 |
| 30 |
321-4 |
SCREW-HH Price: $0.99 |
| 31 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
3217-6 |
NUT-HEX Price: $1.19 |
| 34 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 35 |
43-3820 |
BUZZER SPACER Price: $2.80 |
| 36 |
119-2865 |
KIT-GM300 BUZZER, LOW OIL PRESSURE This part replaces 22-7820. Price: $135.43 |
| 37 |
3217-26 |
NUT-HEX Price: $0.25 |
| 38 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 39 |
218-515 |
BRACKET Price: $12.11 |
| 40 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 41 |
3219-14 |
NUT-HEX Price: $0.25 |
