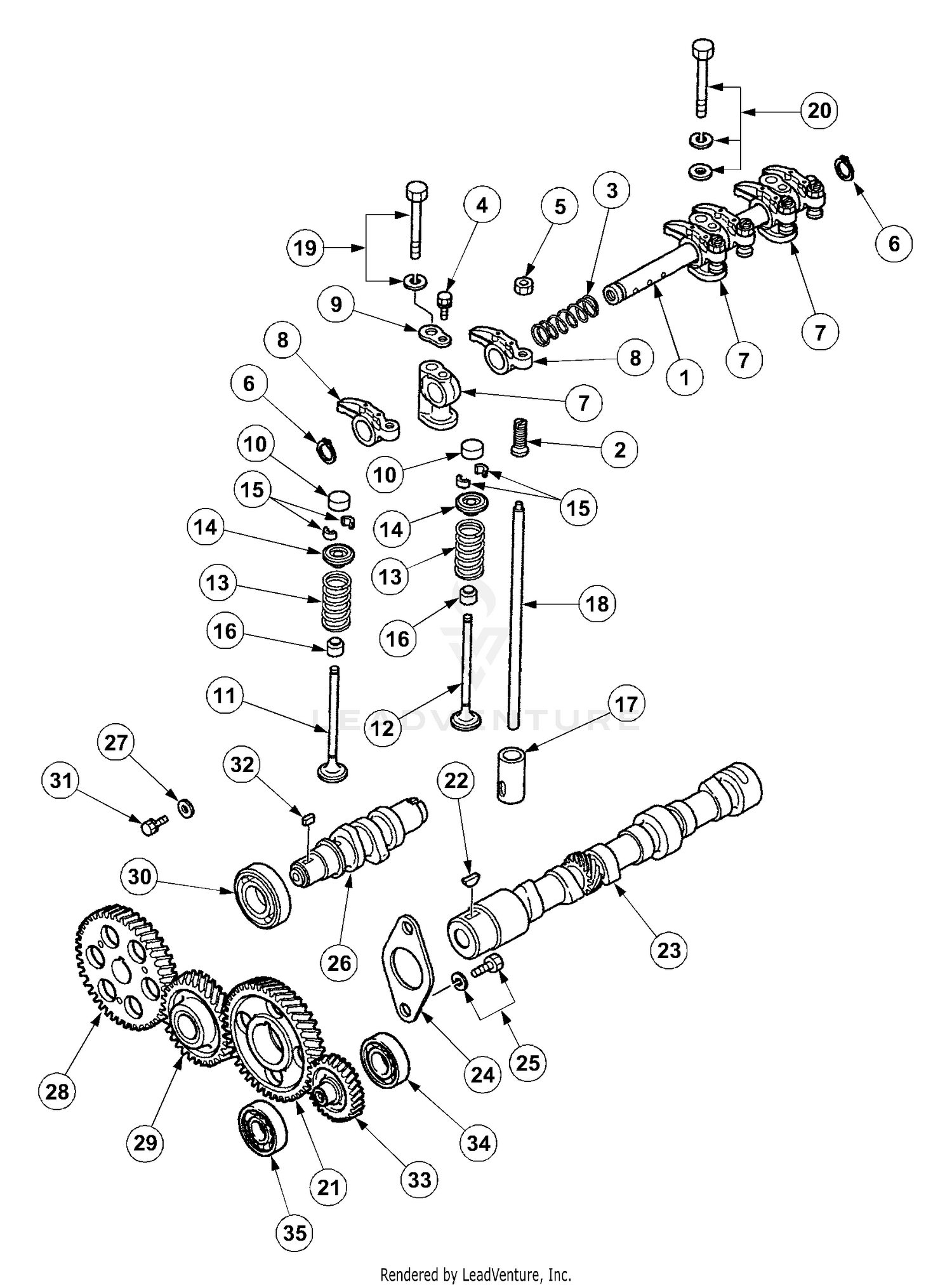

Valves & Timing
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 76-5260 | DISCONTINUED Price: Call Us |
| 1 | MA-MM435527 | SHAFT ASSEMBLY,ROCKER Not Available Price: |
| 2 | 94-3265 | GLOW PLUG CABLE ASM Price: $26.36 |
| 2 | MA-K7231220 | SCREW Not Available Price: |
| 3 | 94-3264 | PLUG-GLOW Price: $57.03 |
| 3 | MA-MD000963 | SPRING Not Available Price: |
| 4 | 76-5290 | WASHER-SPRING Price: $0.53 |
| 4 | MA-MF241225 | BOLT Not Available Price: |
| 5 | 94-3266 | NUT Price: $0.75 |
| 5 | MA-A3030110003 | NUT Not Available This part replaces MA-MF430726. Price: |
| 6 | 33003-00 | NUT-HF This part replaces 94-3267. Price: $0.25 |
| 6 | MA-07400001900 | SNAP RING Not Available This part replaces MA-MF522010. Price: |
| 7 | 3255-7 | WASHER-LOCK/EXT This part replaces 76-5310. Price: $1.39 |
| 7 | MA-MM413043 | BRACKET Not Available Price: |
| 8 | 48-7880 | NUT-HEX This part replaces 94-3251. Price: $0.25 |
| 8 | MA-MM406732 | ARM ROCKER Not Available Price: |
| 9 | MA-MM406745 | WASHER Not Available Price: |
| 10 | MA-MM433510 | VALVE CAP SPRING Not Available Price: |
| 11 | MA-30H04-14100 | INTAKE VALVE Not Available Price: |
| 12 | MA-30H04-04600 | EXHAUST VALVE Not Available Price: |
| 13 | MA-MM432350 | SPRING,VALVE Not Available Price: |
| 14 | MA-MD008761 | RETAINER Not Available Price: |
| 15 | MA-MD008760 | LOCK-VALVE SPRING Not Available Price: |
| 16 | MA-MM41306001 | VALVE SEAL Not Available This part replaces MA-MM413060. Price: |
| 17 | MA-31A05-00300 | TAPPET Not Available This part replaces MA-MM402737. Price: |
| 18 | MA-K7331230 | ROD Not Available Price: |
| 19 | MA-MF241293 | BOLT Not Available Price: |
| 20 | MA-MF244891 | BOLT Not Available Price: |
| 21 | MA-30H23-00300 | CAMSHAFT GEAR Not Available Price: |
| 22 | MA-MF476215 | KEY Not Available Price: |
| 23 | MA-30H05-00300 | CAMSHAFT Not Available Price: |
| 24 | MA-30405-31403 | PLATE-THRU Not Available Price: |
| 25 | MA-MF240051 | SCREW Not Available Price: |
| 26 | MA-30H65-08800 | SHAFT-FUEL Not Available Price: |
| 27 | MA-MD000425 | WASHER Not Available Price: |
| 28 | MA-30H65-08200 | GEAR-INJECTION Not Available Price: |
| 29 | MA-MM40666101 | IDLER GEAR Not Available Price: |
| 30 | MA-MD703856 | BEARING NSK62/128 Not Available Price: |
| 31 | MA-MF241251 | BOLT Not Available Price: |
| 32 | MA-MF476018 | KEY Not Available Price: |
| 33 | MA-30A26-00500 | GEAR,OIL PUMP Not Available Price: |
| 34 | MA-30A26-00200 | BEARING.NTN 6205LU Not Available Price: |
| 502286101 | 502286101 | CLAMP Price: $3.99 |
| 531008650 | 531008650 | SCREW Price: $3.99 |
| 531008728 | 531008728 | CYLINDER COVER Price: $79.99 |
| 537345301 | 537345301 | DECAL Price: $3.99 |
| 537345303 | 537345303 | DECAL Price: $8.99 |
| 537345304 | 537345304 | DECAL Price: $3.99 |
