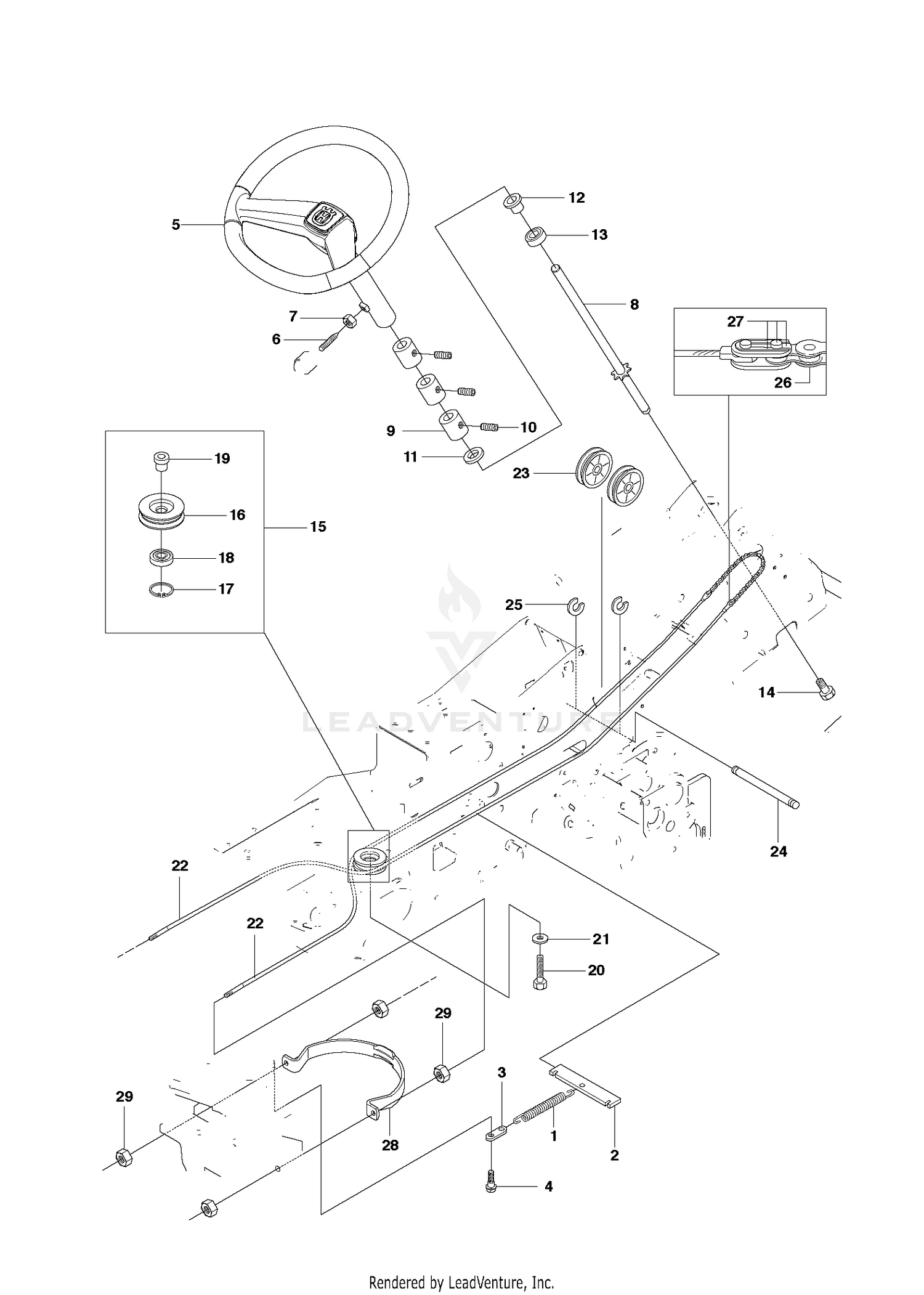

STEERING
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-0839 | PTO BRAKE ASM Price: $221.16 |
| 1 | 506671901 | SPRING Price: $22.99 |
| 2 | 107-0837 | ROD-PUSH Price: $3.69 |
| 2 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 3 | 107-0833 | PTO SHAFT ASM Price: $537.81 |
| 3 | 506670801 | CONNECTOR Price: $6.99 |
| 4 | 107-0825 | RING-SEAL Price: $24.55 |
| 4 | 506597401 | BOLT Price: $5.99 |
| 5 | 107-0827 | SHAFT-PUMP Price: $64.67 |
| 5 | 544375202 | STEERING WHEEL Price: $54.99 |
| 6 | 107-0823 | GEAR-PUMP Price: $221.64 |
| 6 | 728745505 | SCREW Price: $3.99 |
| 7 | 731231801 | NUT Price: $3.99 |
| 7 | 92-0765 | PIN-PARALLEL Price: $3.03 |
| 8 | 107-0816 | GASKET-HOUSING, GEAR Price: $67.05 |
| 8 | 575631901 | STEERING ROD Price: $44.99 |
| 9 | 107-0826 | BEARING Price: $32.70 |
| 9 | 587080901 | DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 | 120-5152 | HOUSING-CASE, GEAR Price: $1,676.75 |
| 10 | 728844305 | Screw Price: $1.99 |
| 11 | 107-0863 | BOLT Price: $1.22 |
| 11 | 506863601 | WASHER Price: $7.99 |
| 12 | 506887801 | SPACER Price: $7.99 |
| 12 | 92-0757 | RING-SNAP Price: $6.85 |
| 13 | 107-0813 | SPACER Price: $8.69 |
| 13 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 14 | 107-0814 | SEAL Price: $49.69 |
| 14 | 506570104 | BOLT Price: $4.99 |
| 15 | 506500903 | RP PULLEY Price: $101.22 |
| 15 | 93-0475 | O-RING This part replaces 104-3298. Price: $8.99 |
| 16 | 107-0861 | PLUG-NPTF Price: $11.67 |
| 17 | 107-0817 | O RING-PLUG Price: $3.09 |
| 17 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 18 | 107-0857 | PLUG Price: $31.81 |
| 18 | 738220419 | BALL-BEARING 6204-2RS Price: $14.99 |
| 19 | 107-0811 | PIPE Price: $133.81 |
| 19 | 506500802 | BUSHING Price: $7.46 |
| 20 | 107-0821 | BEARING Price: $40.03 |
| 20 | 506675402 | BOLT Price: $5.99 |
| 21 | 107-0836 | SPACER Price: $0.88 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 107-0820 | GEAR-INPUT Price: $244.00 |
| 22 | 501604804 | WIRE ASSY This part replaces 506589104. Price: $17.99 |
| 23 | 107-0834 | GEAR-PTO Price: $602.09 |
| 23 | 506522401 | ROLLER Price: $9.99 |
| 24 | 107-0822 | SHAFT-PUMP Price: $147.02 |
| 24 | 506539404 | SHAFT This part replaces 506539403. Price: $14.99 |
| 25 | 107-0819 | SHAFT-INPUT Price: $136.89 |
| 25 | 735311420 | RETAINING RING Price: $2.99 |
| 26 | 506554601 | STEERING CHAIN Price: $17.99 |
| 26 | 92-0758 | RING-SNAP Price: $3.66 |
| 27 | 107-0838 | BEARING Price: $62.42 |
| 27 | 506554701 | LINK Price: $4.99 |
| 28 | 107-0866 | KEY Price: $5.67 |
| 28 | 544427301 | WIRE GUIDE Price: $29.99 |
| 29 | 107-0835 | CLUTCH CYLINDER ASM Price: $820.45 |
| 29 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 30 | 107-0854 | GEAR HOUSING SEAL KIT Price: $83.24 |
