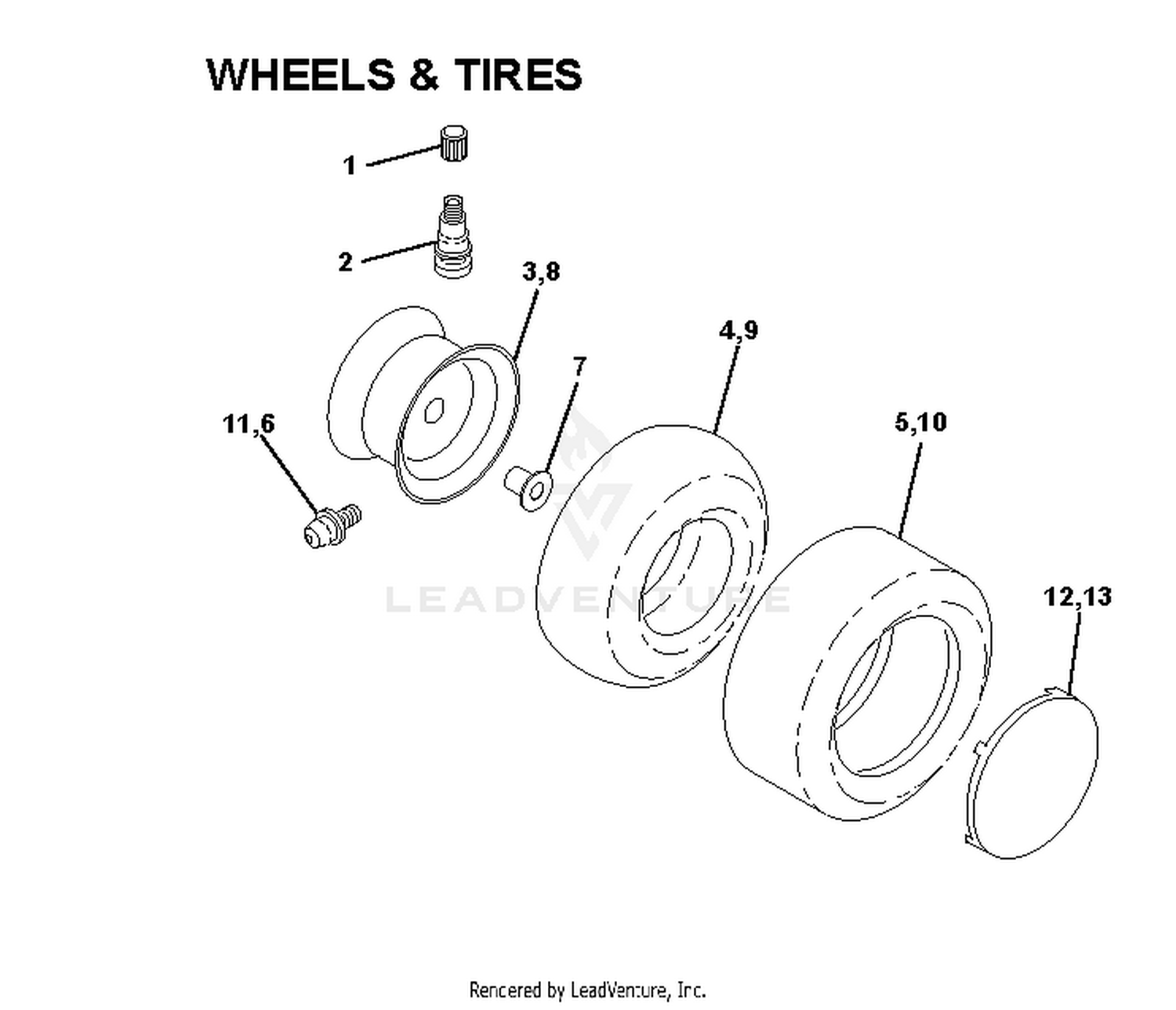

| Ref | Part Number | Description |
|---|
| 1 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 1 |
532059192 |
VALVE CAP Price: $4.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532065139 |
VALVE STEM LT Price: $5.99 |
| 3 |
104-7520 |
SPRING-DAMPER Price: $49.77 |
| 3 |
532148736 |
RIM.ASM.8X5.FRONT.SILVER This part replaces 532141624. Price: $99.99 |
| 4 |
104-7521 |
BUSHING Price: $3.43 |
| 4 |
532008134 |
TUBE.16X6.5/7.5-8 Price: $37.99 |
| 5 |
105-2808 |
END-ROD Price: $88.58 |
| 5 |
532122075 |
TIRE.16X6.5-8.TURF.SAVER.FRONT This part replaces 532106230. Price: $59.99 |
| 6 |
3220-5 |
NUT-JAM Price: $0.65 |
| 6 |
532000278 |
FITTING LT. This part replaces 532124957. Price: $5.99 |
| 7 |
105-2809 |
TUBE-LINK Price: $77.02 |
| 7 |
532009040 |
BEARING.FLANGE This part replaces 532124959. Price: $6.99 |
| 8 |
114-2717 |
CRANK-BELL, LH Price: $170.50 |
| 8 |
532141625 |
RIM.ASM.12X7.REAR.WHITE Price: $82.99 |
| 9 |
114-2716 |
CRANK-BELL, RH Price: $170.50 |
| 10 |
325-9 |
SCREW-HH Price: $1.87 |
| 10 |
532122077 |
TIRE.23X10.5-12.TURF.SAVER.REA This part replaces 532105588. Price: $219.99 |
| 11 |
322-10 |
SCREW-HH Price: $0.70 |
| 11 |
532124860 |
ZERK FITTING M Price: $5.99 |
| 12 |
104-8331 |
END-ROD, SPHERICAL Price: $46.75 |
| 12 |
532124578 |
CAP,HUB REAR Price: $13.99 |
| 13 |
105-3249 |
DAMPER Price: $176.72 |
| 13 |
532124579 |
COVER,WHEEL Price: $19.57 |
| 14 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 15 |
3290-360 |
SCREW-HH Price: $4.34 |
| 16 |
105-4552 |
BEARING-PLASTIC Price: $25.10 |
| 17 |
100-8138 |
SPRING-COMPRESSION Price: $48.65 |
| 18 |
105-4551 |
WASHER-FLAT Price: $3.35 |
| 19 |
105-4548 |
SHAFT-SPRING Price: $211.58 |
| 20 |
105-4550 |
BUSHING-STRAIGHT Price: $8.87 |
| 21 |
145-8390 |
PLATE This part replaces 105-2807-03. Price: $13.74 |
| 22 |
3220-7 |
NUT-JAM Price: $4.09 |
| 23 |
105-2806 |
END-ROD Price: $98.92 |
| 24 |
105-0756 |
SPACER Price: $21.53 |
| 25 |
323-7 |
SCREW-HH Price: $0.65 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 27 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 28 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 29 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 30 |
140-6478 |
LH REAR ARM ASM This part replaces 120-8884. Price: $428.39 |
| 31 |
140-6480 |
RH REAR ARM ASM This part replaces 120-8883. Price: $540.59 |
| 32 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 33 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 34 |
327-23 |
SCREW-HH Price: $3.60 |
| 35 |
120-8856-03 |
BRACKET-ROLLER, LH Price: $57.85 |
| 36 |
120-8874-03 |
BRACKET-ROLLER, RH Price: $54.83 |
| 37 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 39 |
3256-61 |
WASHER-FLAT Price: $1.79 |
| 40 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 41 |
119-8308 |
PLATE This part replaces 119-8308-03. Price: $25.33 |
| 42 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 43 |
3256-27 |
WASHER-FLAT Price: $0.47 |
