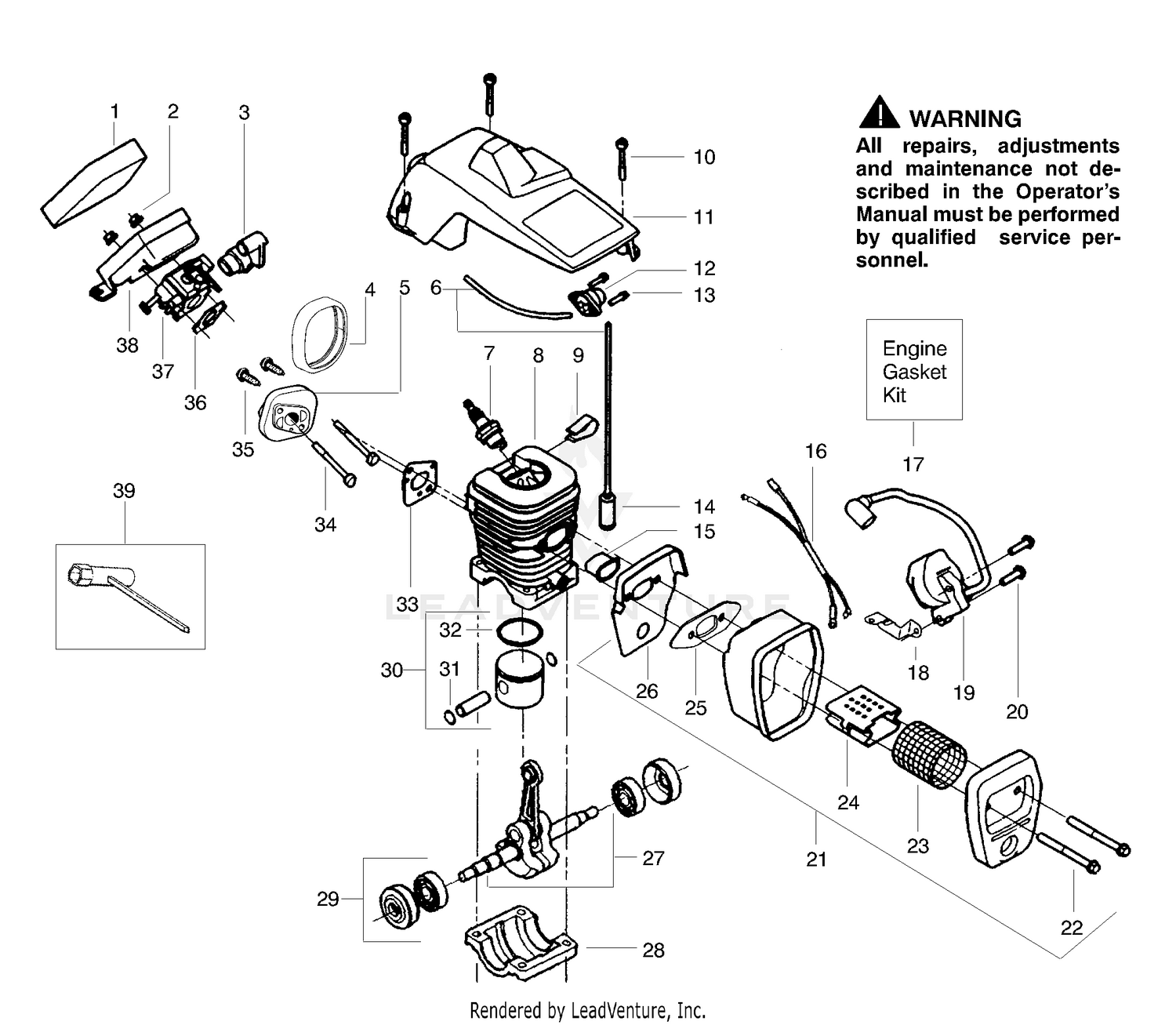

| Ref | Part Number | Description |
|---|
| 1 |
108-9083 |
PLATE-SIDE, RH Price: $328.36 |
| 1 |
530037793 |
Foam Air Filter Price: $1.99 |
| 2 |
108-9082 |
PLATE-SIDE, LH Price: $328.36 |
| 2 |
530016101 |
Nut Price: $1.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
530035526 |
Grommet Carb Adjust Price: Call Us |
| 4 |
530054144 |
Seal Carb Adapter Price: $2.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
530049700 |
Adapter Carb. Price: $3.99 |
| 6 |
530069247 |
Kit Fuel Line (Small) Price: $3.99 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
530047127 |
CYLINDER This part replaces 530069606. Price: $59.99 |
| 9 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 9 |
530016136 |
Clip High Tension Lead Price: $1.99 |
| 10 |
530016153 |
Screw Price: $1.99 |
| 11 |
530071310 |
Shield Cylinder Price: $9.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 13 |
115-2007 |
ROD-SPRING Price: $34.97 |
| 13 |
530015780 |
Screw Price: $1.99 |
| 14 |
530095646 |
Assy Fuel Pick up Price: $2.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
530037652 |
Insulator Heat Price: $1.99 |
| 16 |
119-8010-03 |
KICKSTAND This part replaces 110-4088-03. Price: $34.60 |
| 16 |
530052296 |
Assy. Wire Harness Price: $4.99 |
| 17 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 18 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 18 |
530047442 |
Strap Ground Price: $1.99 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 19 |
530039198 |
Module Ignition Price: $29.99 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
530015814 |
Screw Price: $1.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 22 |
530016132 |
Screw Price: $1.99 |
| 22 |
67-9410 |
WASHER Price: $2.04 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 23 |
530036103 |
Screen Spark Price: Call Us |
| 24 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 24 |
530037813 |
Diffuser Muffler Price: $1.99 |
| 25 |
110-9713 |
CARRIER FRAME ASM Price: $642.24 |
| 25 |
530069608 |
Gasket Muffler(kit) Price: $5.99 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
530049870 |
Backplate Muffler Price: $3.99 |
| 27 |
323-7 |
SCREW-HH Price: $0.65 |
| 27 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 28 |
114-3972 |
CHAIN Price: $8.62 |
| 28 |
530037935 |
Cap Crankcase Price: $8.99 |
| 29 |
112-6564 |
BRACKET-CHAIN Price: $47.71 |
| 29 |
530056363 |
Assy. Seal & Bearing Price: $11.99 |
| 31 |
530015697 |
Retainer Piston Pin Price: $1.99 |
| 32 |
530029805 |
Ring Piston Price: $2.99 |
| 33 |
530069608 |
Gasket Adapter (kit) Price: $5.99 |
| 34 |
530016187 |
Screw Price: $1.99 |
| 35 |
530016386 |
Screw Price: $5.99 |
| 36 |
530069608 |
Gasket Carb. (kit) Price: $5.99 |
| 37 |
545081885 |
Kit-Carburetor (Walbro-WT-89) This part replaces 530069703. Price: $22.99 |
| 38 |
530057480 |
Housing- Air Filter This part replaces 530037804. Price: $4.99 |
| 39 |
530031163 |
Wrench Bar Price: $4.99 |
