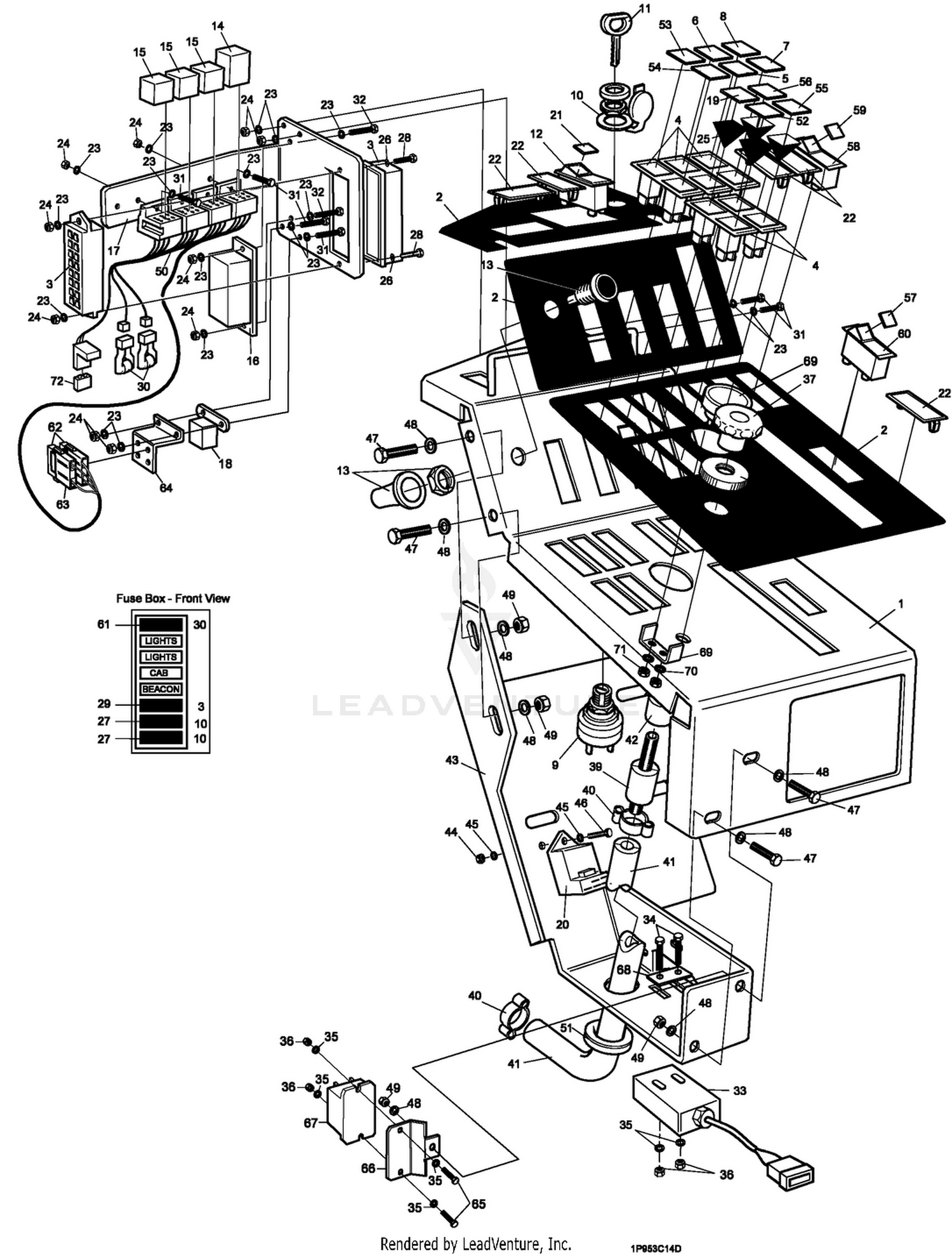

| Ref | Part Number | Description |
|---|
| 1 |
994430W |
PANEL CONTROL W/A Price: $324.29 |
| 2 |
994912 |
DECAL CONTROL PANEL T424 Price: $106.42 |
| 3 |
70-09-096 |
FUSE BOX Price: $39.75 |
| 4 |
HY924601 |
LIGHT PANEL Price: $31.88 |
| 5 |
924605 |
LENS BATTERY Price: $4.24 |
| 6 |
924606 |
LENS OIL PRESSURE Price: $4.10 |
| 7 |
924602 |
LENS ENGINE OVERHEAT Price: $4.10 |
| 8 |
924603 |
Lens - Warning Transmission Temp. Price: $4.10 |
| 9 |
74-09-009 |
IGNITION SWITCH Price: $163.43 |
| 10 |
74-09-010 |
SWITCH-COVER Price: $14.35 |
| 11 |
74-09-017 |
KEY-IGNITION Price: $18.31 |
| 12 |
924864 |
SWITCH CUTTER DRIVE CONTROL Price: $63.91 |
| 13 |
924618 |
SWITCH-HORN, PUSH Price: $37.21 |
| 14 |
924625 |
RELAY-70A Price: $62.42 |
| 15 |
111-0336 |
RELAY Price: $8.47 |
| 16 |
70-01-512 |
TIMER ASSY Price: $318.85 |
| 17 |
924404W |
BRACKET FUSE BOX Price: $48.58 |
| 18 |
16259-60250 |
RELAY Price: $61.88 |
| 19 |
950857 |
Lens - Glow Plug Price: $3.99 |
| 20 |
15694-65990 |
GLOW LAMP TIMER This part replaces 15694-65992. Price: $101.51 |
| 21 |
950856 |
LENS GREEN Price: $3.81 |
| 22 |
924600 |
BLANK-SWITCH Price: $7.85 |
| 23 |
09470 |
WASHER M5 X 10 X 1 ZN & PASS Price: $1.25 |
| 24 |
09430 |
NUT M5 NYL INS T TYPE Price: $1.25 |
| 25 |
950872 |
REFLECTOR PANEL LIGHT Price: $9.05 |
| 26 |
09644 |
WASHER SPRING Price: $1.40 |
| 27 |
70-09-026 |
FUSE-10AMP Price: $1.42 |
| 28 |
ZCS1E012U |
SOC.HD.CAP SCW. M5*12 Z&P Price: $1.31 |
| 29 |
70-09-024 |
FUSE-3AMP Price: $1.42 |
| 30 |
950868 |
DIODE ASSEMBLY 6A Price: $56.61 |
| 31 |
ZDH1E012U |
SETSCREW M5*12 Price: $1.31 |
| 32 |
ZDH1E016U |
HEX HD SET SCREW M5*16 Price: $1.38 |
| 33 |
111-6525 |
SWITCH ASSY 2-POLE This part replaces 950865. Price: $112.18 |
| 34 |
09704 |
SETSCREW M4X35 Price: $1.40 |
| 35 |
09658 |
WASHER M4 X 9 X 0.8 Z/P Price: $1.40 |
| 36 |
09657 |
NUT M8 HX.NYL/INSERT T TYPE ZP Price: $1.40 |
| 37 |
924160 |
Handwheel Price: $10.73 |
| 38 |
924814 |
Handnut Price: $6.59 |
| 39 |
910522 |
BAR WEIGHT TRANSFER SHAFT Price: $50.40 |
| 40 |
924815 |
O Clip Price: $1.59 |
| 41 |
924686 |
HOSE Price: $15.71 |
| 42 |
924817 |
Bush - Nylon Price: $4.92 |
| 43 |
910415W |
LIFT VALUE BRACKET Price: $165.15 |
| 44 |
09544 |
NUT M6 NYL INS GD 8 Price: $1.34 |
| 45 |
09472 |
WASHER-PLAIN Price: $1.25 |
| 46 |
09363 |
SETSCREW M6 X 20 Price: $1.31 |
| 47 |
09368 |
SCREW Price: $1.40 |
| 48 |
09267 |
WASHER 5/16 X 7/8 X 15G GALV Price: $1.39 |
| 49 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 50 |
111-0191 |
HARNESS WIRING T424D Price: $2,445.19 |
| 51 |
74-07-019 |
GROMMET 30 O.D. Price: $1.42 |
| 52 |
950858 |
LENS PARKING BRAKE Price: $3.99 |
| 53 |
950863 |
DISCONTINUED Price: $3.58 |
| 54 |
950866 |
Lens - Return Oil Filter Price: $48.78 |
| 55 |
950862 |
LENS NEUTRAL Price: $4.13 |
| 56 |
950873 |
LENS REEL STOP Price: $7.74 |
| 57 |
950859 |
Lens - 2/4 WD Price: $5.26 |
| 58 |
924608 |
SWITCH-BEACON Price: $45.93 |
| 59 |
953835 |
LENS LIFT CONFIGURATION Price: $3.99 |
| 60 |
924607 |
SWITCH Price: $77.77 |
| 61 |
70-09-027 |
FUSE-30 AMP Price: $1.42 |
| 62 |
950926 |
FUSE 60A Price: $10.44 |
| 63 |
111-0283 |
HOLDER-MAXIFUSE Price: Call Us |
| 64 |
994299W |
BRACKET FUSE MAIN Price: $45.86 |
| 65 |
ZDH1D012U |
SET SCREW M4 * 12 Price: $1.38 |
| 66 |
924452 |
Bracket - Relay Neutral Start Price: $40.08 |
| 67 |
995713 |
RELAY NEUTRAL START Price: $61.14 |
| 68 |
940342 |
PLATE SWITCH CLAMP Price: $4.04 |
| 69 |
910850 |
HOURMETER DIGITAL Price: $99.91 |
| 70 |
HY09733 |
WASHER M4 PLAIN NYLON Price: $1.09 |
| 71 |
ZNN1D000U |
NYLOC NUT Price: $1.42 |
