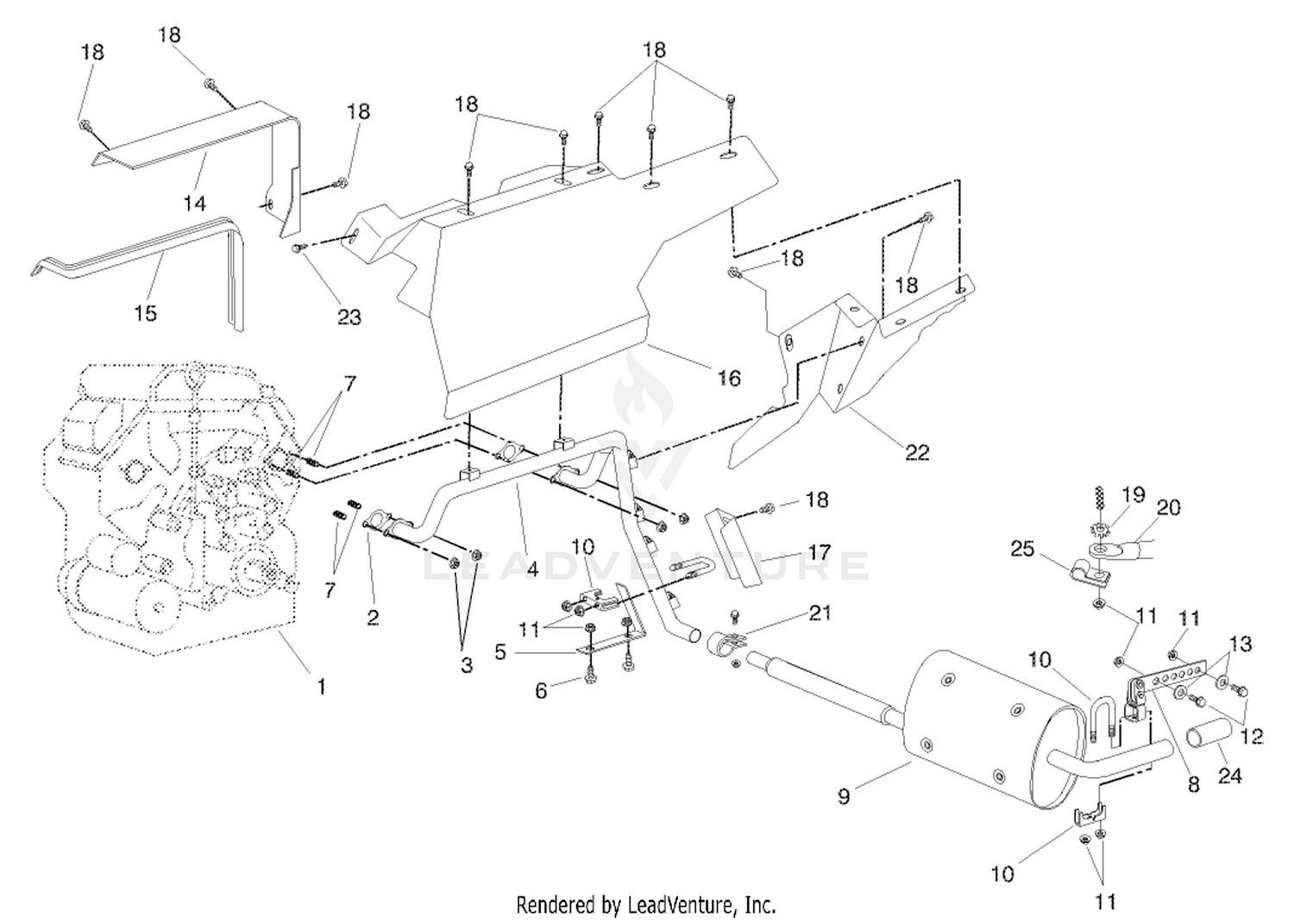

| Ref | Part Number | Description |
|---|
| 1 |
117-5807 |
ENGINE-KOHLER, CH640-3046 GAS This part replaces 99-0819. Price: $3,364.11 |
| 3 |
M-841080-S |
NUT-FLANGE (M8X1.25) Price: Call Us |
| 4 |
100-8291 |
HEADER PIPE ASM Price: $345.85 |
| 5 |
100-8527 |
SUPPORT-HEADER Price: $39.69 |
| 6 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 8 |
100-8526 |
HANGER-MUFFLER Price: $18.43 |
| 9 |
100-8292 |
MUFFLER TAILPIPE ASM Price: $789.04 |
| 10 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 11 |
32128-20 |
NUT-HF Price: $0.99 |
| 12 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 13 |
356303 |
WASHER Price: $13.44 |
| 14 |
100-7025-03 |
SHIELD-HEAT, FRONT This part replaces 100-7025. Price: $172.34 |
| 15 |
100-7027 |
TRIM Price: $24.21 |
| 16 |
100-7028-03 |
SHIELD-HEAT, UPPER This part replaces 100-7028. Price: $256.39 |
| 17 |
100-8409-03 |
SHIELD-EXHAUST, LOWER This part replaces 100-8409. Price: $28.68 |
| 18 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 19 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
99060 |
CABLE-GROUND Price: $41.19 |
| 21 |
2112-9 |
CLAMP This part replaces 100-6972. Price: $7.78 |
| 22 |
100-7029-03 |
SHIELD-HEAT, MIDDLE This part replaces 100-7029. Price: $110.05 |
| 23 |
33103-012 |
SCREW-HHF Price: $3.21 |
| 24 |
94-8157 |
SCREEN-SPARK ARRESTOR This part replaces 93-0899. Price: $74.51 |
