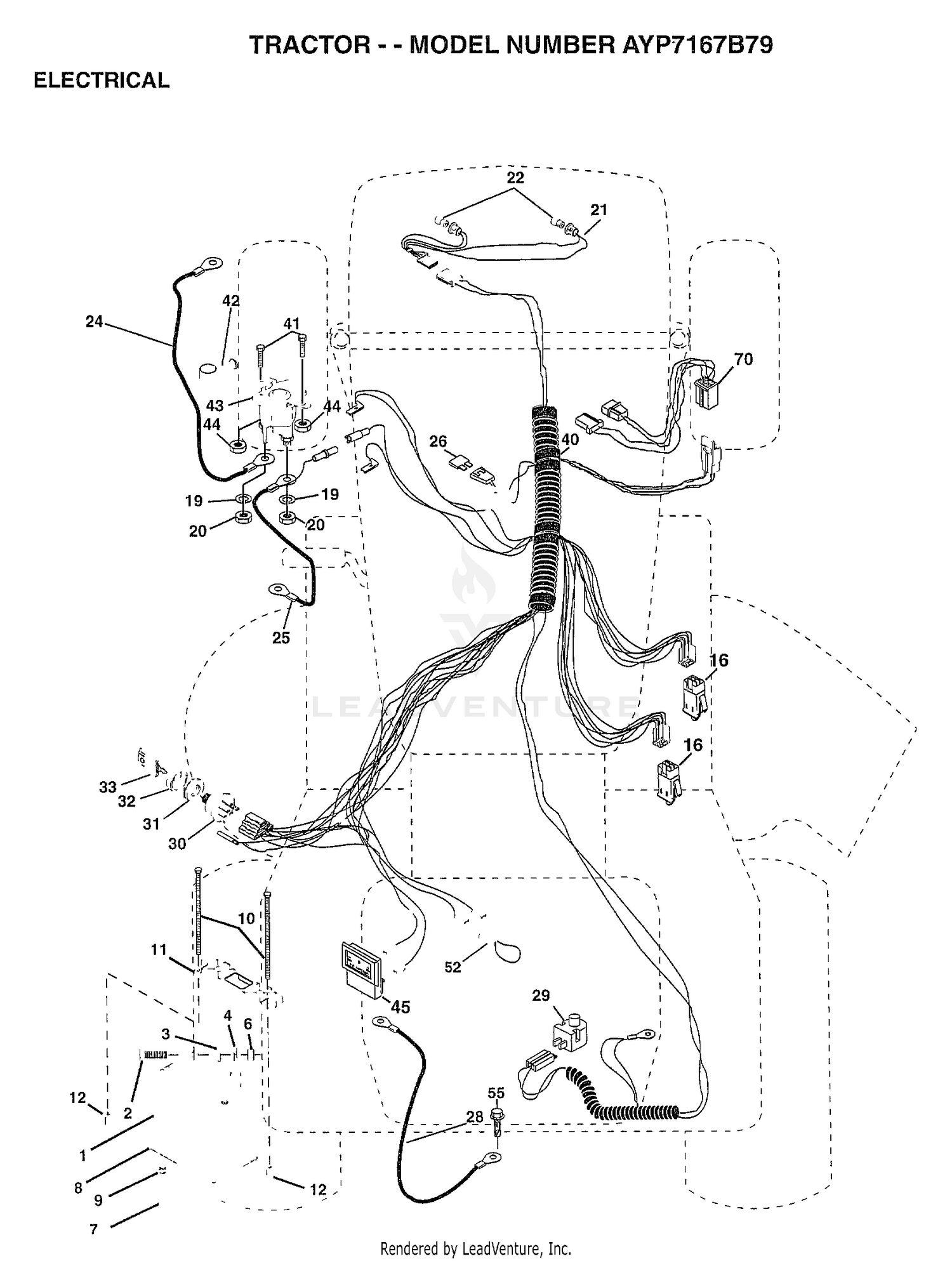

| Ref | Part Number | Description |
|---|
| 1 |
144926 |
SUB= 123899X Price: Call Us |
| 1 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 2 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
19091016 |
WASHER Price: Call Us |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH Price: $69.64 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 7 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
233-17 |
KNOB Price: $10.58 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 10 |
145211 |
SUB= 150177 Price: Call Us |
| 10 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 11 |
150109 |
HOLDDOWN BATTERY Price: Call Us |
| 11 |
323-15 |
SCREW-HH Price: $1.53 |
| 12 |
145769 |
SUB= 150177 Price: Call Us |
| 12 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 13 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 14 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 15 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
88-1710-01 |
FOOTREST ASM Price: $62.29 |
| 17 |
88-1680-01 |
BRACKET-FOOTREST Price: $17.86 |
| 18 |
3220-5 |
NUT-JAM Price: $0.65 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 20 |
3220-3 |
NUT-HJ Price: $0.28 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
32128-25 |
NUT-HF Price: $3.19 |
| 22 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 23 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
146148 |
CABLE.6GA.22W/16W Price: Call Us |
| 25 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 27 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 28 |
108-1379 |
RH BRAKE CABLE ASM This part replaces 21-3370. Price: $162.33 |
| 28 |
145491 |
CABLE.GRND.6GA.21 Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 33 |
122147X |
KEY Price: Call Us |
| 33 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 34 |
23-2240-03 |
PUMP CONTROL TUBE ASM Price: $209.72 |
| 35 |
94-3304-01 |
SUPPORT-PEDAL Price: $121.34 |
| 40 |
156442 |
HARNESS-IGNITION Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
122822X |
AMMETER Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 55 |
17490508 |
SCREW LT Price: Call Us |
