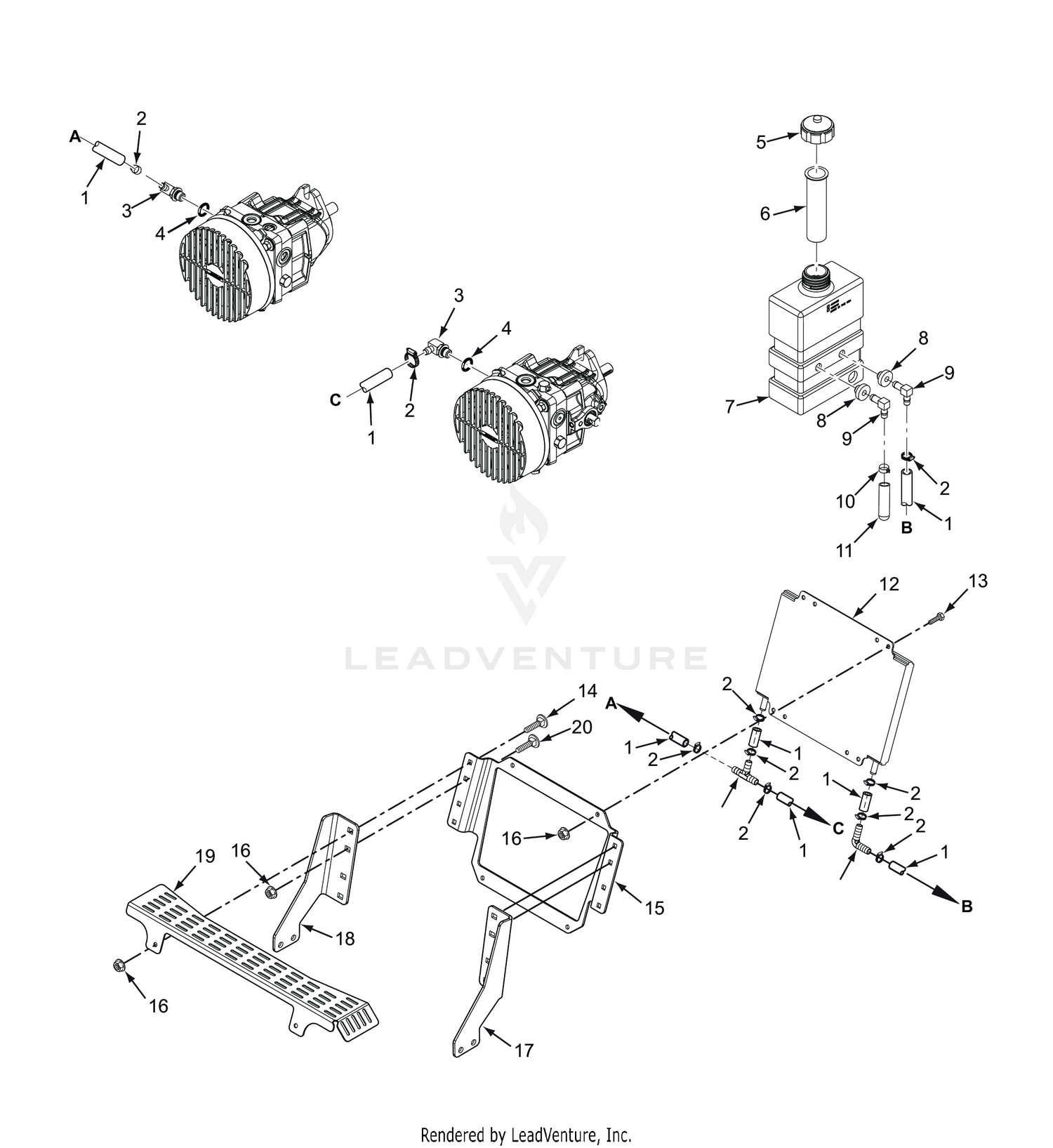

| Ref | Part Number | Description |
|---|
| 1 |
36-4970 |
DISCONTINUED Price: Call Us |
| 1 |
48811 |
Hose, 3/8" ID - 10-1/4" Long (Order By The Inch) Price: Call Us |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 3 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 3 |
482266-01 |
Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 4 |
3213-20 |
SCREW-HH Price: $1.76 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
481164 |
CAP, HYDRAULIC TANK Price: Call Us |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 6 |
481507 |
Insert, Filler Neck Price: Call Us |
| 7 |
253-117 |
SEAL-OIL Price: $5.72 |
| 7 |
482572 |
Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring Price: Call Us |
| 8 |
254-78 |
BEARING-CONE Price: $12.22 |
| 8 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 9 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 9 |
482572 |
Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring Price: Call Us |
| 10 |
29-3440 |
DISCONTINUED Price: Call Us |
| 10 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 11 |
484352-03 |
Cap Plug, .375 x 1.50 Price: Call Us |
| 11 |
5-4035 |
DISCONTINUED Price: Call Us |
| 12 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 12 |
484317 |
Cooler, Transmission (52V/61V) Price: Call Us |
| 13 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 13 |
29-3800 |
ROLLER ASM Price: $526.79 |
| 14 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 14 |
29-3900 |
WEAR SLEEVE Price: $34.42 |
| 15 |
29-3940 |
DISCONTINUED Price: Call Us |
| 15 |
428492 |
Mounting Bracket, Oil Cooler (air cooled) Price: Call Us |
| 16 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 16 |
32128-15 |
NUT-LOCK, FLANGE Price: $3.86 |
| 17 |
29-3850 |
ROLLER SHAFT Price: $151.96 |
| 17 |
428196 |
Mounting Bracket, Cooler - LH Price: Call Us |
| 18 |
428197 |
Mounting Bracket, Cooler - RH Price: Call Us |
| 428524 |
Mounting |
Bracket, Oil Cooler (liquid cooled) Price: Call Us 428524 |
