Home / OPE / Riding Products / 30657, LT3340 Heavy-Duty Triple Turf Mower Traction Unit, 2016 (SN 316000001-316999999) / Front Lift Arm Assembly

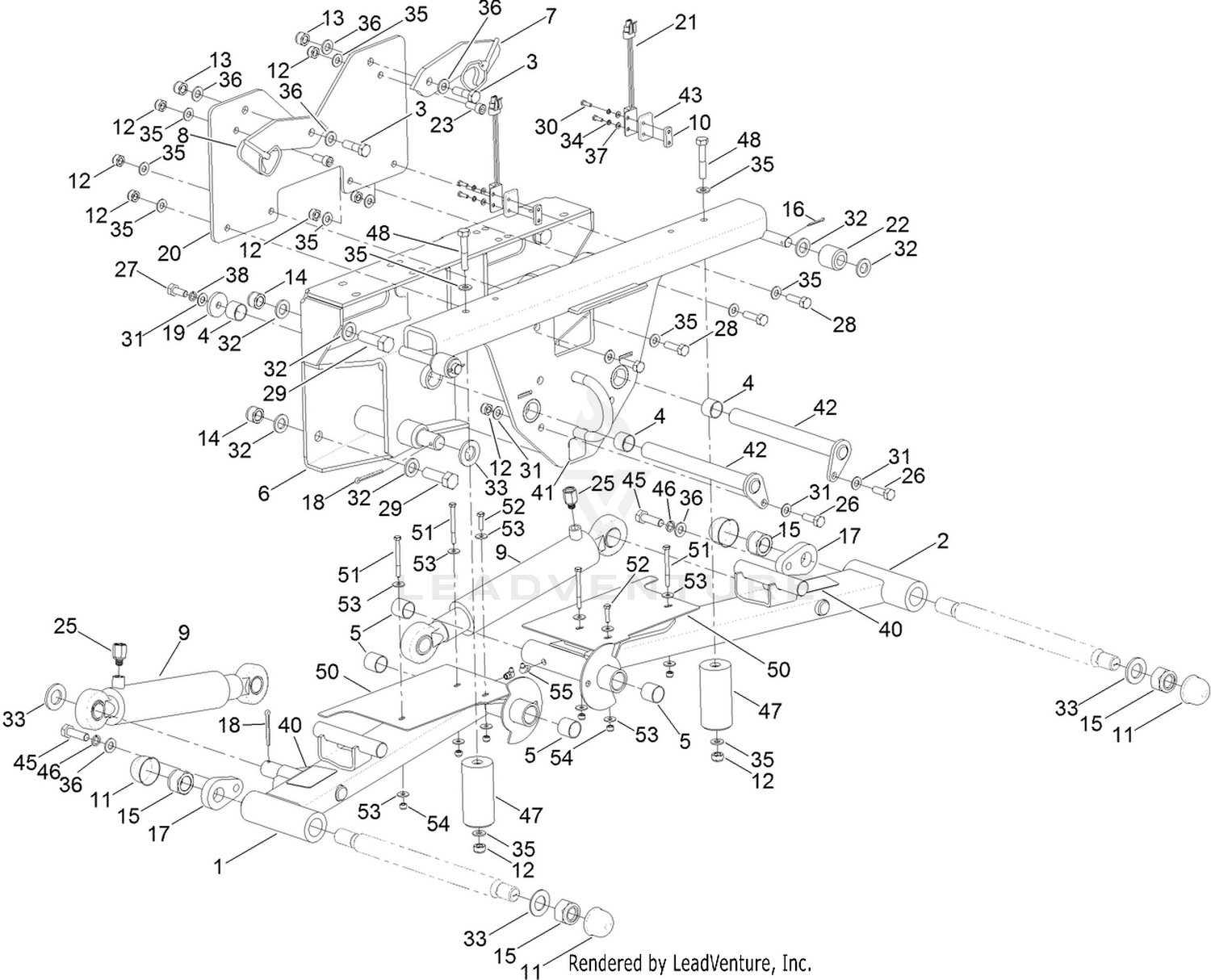

Front Lift Arm Assembly

Front Lift Arm Assembly

Parts (50)

RefPart NumberDescription
1 111-1390-03 ARM FRONT RH W/A Price: $532.85
2 111-4100-03 ARM FRONT LH W/A Price: $550.88
3 63-11-010 HEX HD.BOLT M12*40HT/10.9 Price: $6.59
4 74-07-028 BUSH DEVOL 28DIAX25X20 Price: $8.10
5 876066 BUSH Price: $8.34
6 111-8096-03 FRAME-PIVOT, ARM Price: $793.53
7 111-7922-01 PLATE-LATCH, LH Price: $35.93
8 111-7921-01 PLATE-LATCH, RH Price: $35.93
9 111-1998 LIFT CYLINDER Price: $277.04
10 111-3336 NUT BAR - PROXIMITY SWITCH Price: $12.26
11 10-11-100 NUT CAP M24 Price: $1.97
12 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
13 09650 NUT Price: $1.40
14 09456 NUT M16 X 2 NYL INS P TYPE Price: $1.40
15 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
16 70-11-005 SPLIT PIN 3 DIA*30 Price: $1.42
17 63-01-185W RETAINER Price: $48.24
18 74-11-003 SPLIT PIN 5 DIA X 50 Price: $1.39
19 111-3366 PLATE BUSH RETAINING Price: $4.57
20 111-4093-03 PLATE LATCH MOUNT Price: $66.28
21 105-0023 SWITCH-PROXIMITY Price: $134.88
22 922112 Roller Price: $33.24
23 ZCS1J025U SCREW SOC HD CAP M10*25 Price: $1.31
25 111-3538 ADAPTOR 1/4" BSP M - T1FQLD Price: $14.71
26 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
27 09395 SETSCREW M10 X 25 ZN & PASS Price: $1.40
28 ZDH1J035U HEX.HD.SET SCW.M10 * 35LG Price: $1.38
29 ZDH1P050U SETSCREW M16*50 Price: $1.35
30 ZDH1E016U HEX HD SET SCREW M5*16 Price: $1.38
31 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
32 09491 WASHER M16 PLAIN Price: $1.42
33 09555 WASHER M24 PLAIN Price: $1.31
34 09644 WASHER SPRING Price: $1.40
35 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
36 HY09485 WASHER M12 PLAIN Price: $1.40
37 09470 WASHER M5 X 10 X 1 ZN & PASS Price: $1.25
38 09480 WASHER M10 SC SPRING Price: $1.36
40 70-13-077 DECAL - SAFETY LATCHES Price: $4.59
41 70-13-072 DECAL - JACKING POINT Price: $4.88
42 111-3248 FRONT ARM PIVOT PIN W/A Price: $43.54
43 111-3676 SPACER PROXIMITY SWITCH Price: $1.72
45 ZDH1L040U HEX.HD.SET SCW M12*40 Price: $1.31
46 09599 WASHER Price: $1.42
47 111-4157 BUMP STOP - 105 Price: $46.83
48 09397 BOLT M10 X 60 Price: $1.40
50 111-6822-03 DEFLECTOR-ARM, MOUNTED Price: $9.67
51 09703 BOLT M6X65 HEX HEAD Price: $1.40
52 09364 SETSCREW M6 X 25 Price: $1.34
53 09262 WASHER 1/4 X 3/4 GALV ROOFING Price: $1.40
54 09544 NUT M6 NYL INS GD 8 Price: $1.34
