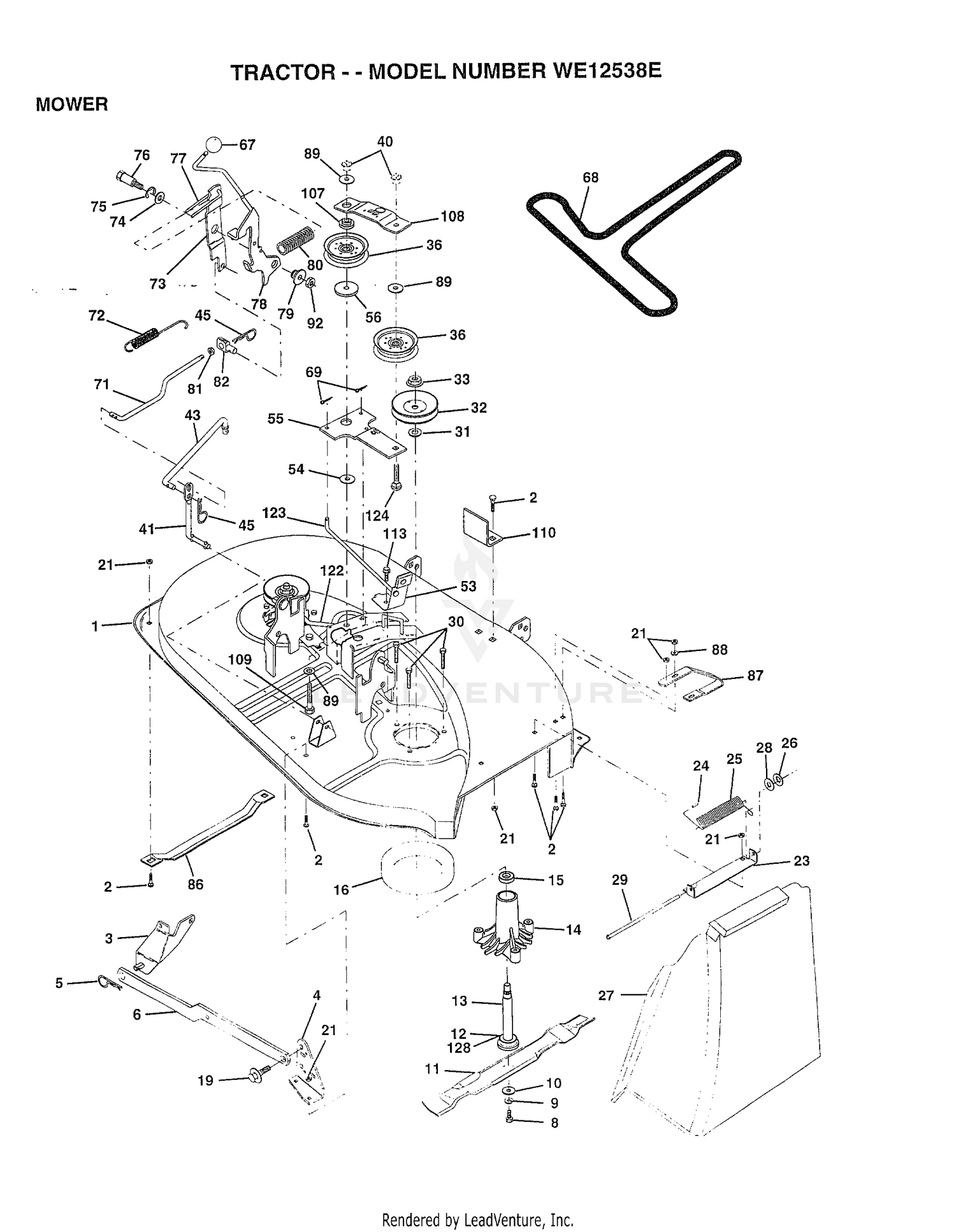

| Ref | Part Number | Description |
|---|
| 1 |
142829 |
SUB= 145775 Price: Call Us |
| 1 |
94-7282 |
CAP-DUST Price: $16.25 |
| 2 |
242-35 |
NUT-WHEEL This part replaces 321077. Price: $9.04 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
42329 |
TIRE WHEEL ASS-Y (23" T Price: Call Us |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
3256-30 |
WASHER-FLAT This part replaces 24-18-BD. Price: $5.73 |
| 5 |
115-9471 |
BEARING-CUP This part replaces 94-7284. Price: $6.46 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
254-62 |
BEARING-ROLLER, CONE This part replaces 94-7283. Price: $12.61 |
| 7 |
94-7148 |
HUB ASM Price: $205.34 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 8 |
93-6586 |
BUSHING Price: $26.89 |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
117-5809-03 |
RH SPINDLE ASM This part replaces 93-6582. Price: $908.87 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
3217-9 |
NUT-HH This part replaces 22-15-AJD. Price: $0.37 |
| 11 |
325-6 |
SCREW-HH This part replaces 20-87-AGD. Price: $1.42 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
93-6584 |
KING PIN ASM Price: $68.03 |
| 13 |
127-2937 |
KIT-SHOCK This part replaces 42690. Price: $180.74 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
42691 |
BOLT ASM Price: $19.85 |
| 15 |
110-5072 |
BOLT-SHOULDER This part replaces 42599. Price: $26.52 |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
42574 |
SHACKEL-OUTSIDE Price: $7.32 |
| 17 |
42592 |
BUSHING-SHACKLE Price: $31.94 |
| 18 |
42576 |
SHACKEL-INSIDE Price: $7.18 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
93-6166 |
NUT-HEX Price: $0.41 |
| 20 |
3253-6 |
WASHER-LOCK This part replaces 23-12-GD. Price: $0.39 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
87-3470 |
BUMPER Price: $18.89 |
| 22 |
323-11 |
SCREW-HH This part replaces 20-52-AGD. Price: $1.08 |
| 23 |
137607 |
BRKT DEFLECTOR Price: Call Us |
| 23 |
93-6161 |
WASHER Price: $3.68 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
3217-8 |
NUT-HEX This part replaces 22-14-AJD. Price: $1.34 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
3253-6 |
WASHER-LOCK This part replaces 23-12-GD. Price: $0.39 |
| 26 |
112-7822-03 |
PLATE-SPRING This part replaces 42575. Price: $35.83 |
| 27 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 27 |
322-1 |
SCREW-HH This part replaces 20-22-AGD. Price: $0.22 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
3256-3 |
WASHER-FLAT This part replaces 24-10-AD. Price: $0.49 |
| 29 |
106735X |
ROD-HINGE T Price: Call Us |
| 29 |
99-0569 |
SPRING LEAF This part replaces 93-6583. Price: $176.73 |
| 30 |
93-6587 |
BEARING Price: $14.99 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
361011 |
DISCONTINUED Price: Call Us |
| 32 |
153532 |
PULLEY.MANDREL.38 Price: Call Us |
| 32 |
3220-11 |
NUT-JAM Price: $0.81 |
| 33 |
137226 |
NLA Price: Call Us |
| 33 |
87-1480-03 |
END-TIE ROD, RH This part replaces 87-1480. Price: $101.78 |
| 34 |
603773 |
LOCKNUT This part replaces 22-13-AJFD. Price: $2.09 |
| 35 |
93-6568-03 |
FRONT AXLE ASM This part replaces 93-6568. Price: $1,048.55 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
93-6588-03 |
ROD-STEERING This part replaces 93-6588. Price: $296.55 |
| 37 |
3-8386 |
NUT-PINION, REEL Price: $9.79 |
| 38 |
87-1470-03 |
END-TIE ROD, LH This part replaces 87-1470. Price: $101.78 |
| 39 |
117-5808-03 |
LH SPINDLE ASM This part replaces 93-6577. Price: $973.03 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 40 |
93-6509 |
END-TIE ROD Price: $98.38 |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 41 |
138-6102 |
CYLINDER ASM This part replaces 93-6510. Price: $1,096.53 |
| 43 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 53 |
130840 |
BRAKE ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 69 |
76020312 |
SUB= 3145 Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
154809 |
LEVER ASM-CLUTCH Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 86 |
7631J |
RUNNER-LH M Price: Call Us |
| 87 |
128772 |
RUNNER RH Price: Call Us |
| 88 |
19111216 |
WASHER M Price: Call Us |
| 89 |
19131612 |
WASHER GT Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 107 |
133502 |
RETAINER SPACER Price: Call Us |
| 108 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 109 |
74760640 |
BOLT Price: Call Us |
| 110 |
142587 |
UPSTOP DECK FT 38 Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 122 |
131289 |
BRAKE ROD LH Price: Call Us |
| 123 |
131288 |
BRAKE ROD RH Price: Call Us |
| 124 |
72110614 |
BOLT Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 41169 |
WHEEL |
Price: $258.19 41169 |
| 145758 |
DECK.SERV.38.HLMC |
Price: Call Us 145758 |
