Home / OPE / *MTD Legacy 1985-2005 / Eversharp / 11-Push Walk-Behind Mowers / 1986 Models / Eversharp 116-500-205 / Parts

Parts

Parts

Parts (68)

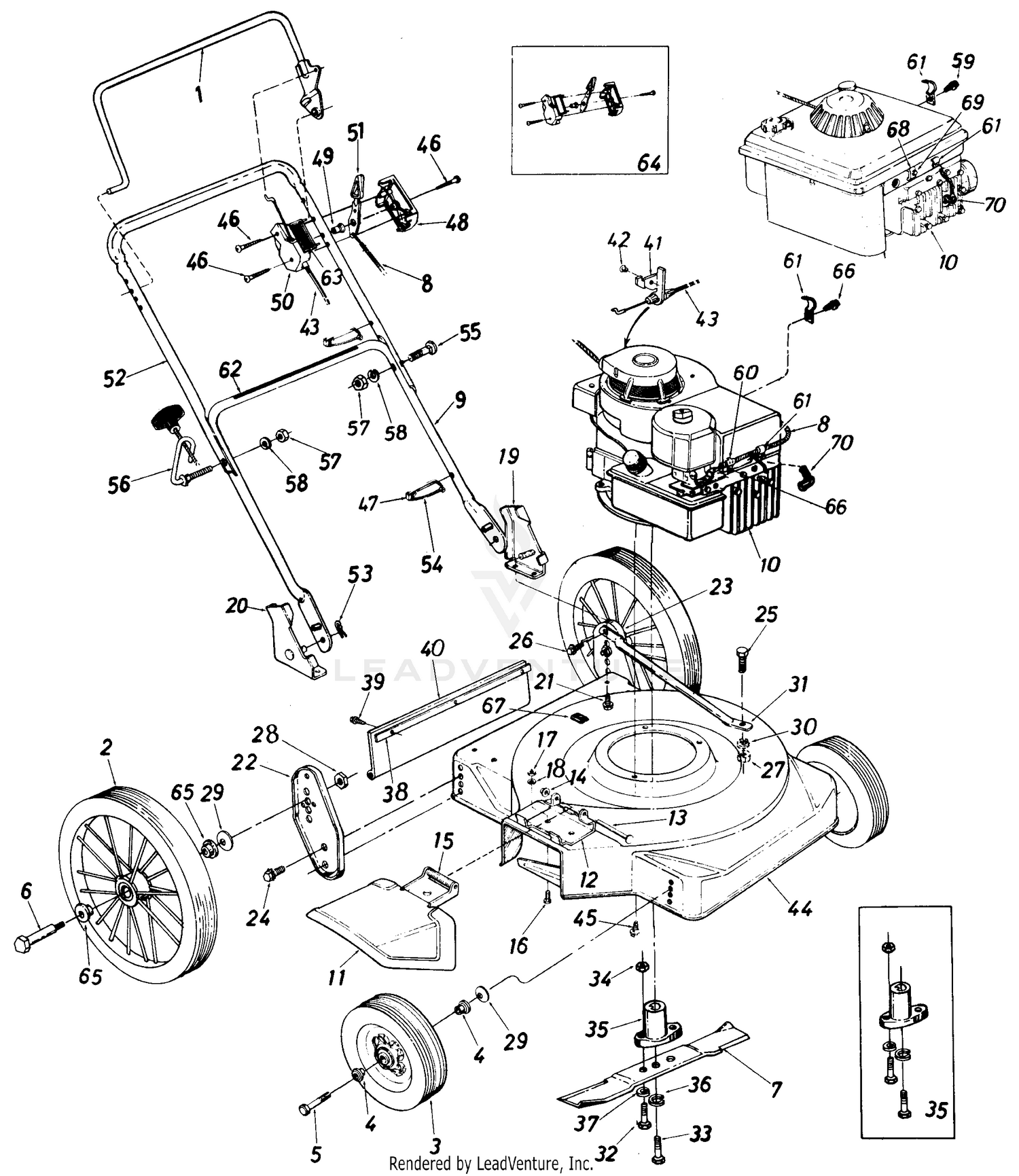

RefPart NumberDescription
1 14321 CONTROL HANDIE ASS'Y.-L.H. Not Available Price:
2 734-0244 WHEEL ASSEMBLY W/TIRE Not Available Price:
3 N/A Front Wheel Ass'y.-Comp.8.0 x 1.75
4 N/A Bearing
5 N/A Axle Bolt-Front
6 938-0481A Shoulder Screw This part replaces 738-0481. Price: $6.30
8 946-0674A Throttle Wire-58" Lg. Not Available This part replaces 746-0633. Price:
9 749-0928A-0637 Lower Handle This part replaces 749-0373. Price: $29.67
10 N/A Engine
11 931-1034B CHUTE DEFLECTOR Not Available This part replaces 14944. Price:
12 11130 ADAPTER PLATE Not Available Price:
13 711-0555 PIVOT PIN Not Available Price:
14 726-0106 PUSH NUT This part replaces 7260106. Price: $3.37
15 732-0253 TORSION SPRING Not Available Price:
16 910-0289 Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15
17 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
18 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
19 12935 BRACKET AS Not Available Price:
20 12936 BRACKET ASSY-HDLE Not Available Price:
21 710-0603 Hex Wash. Hd. "B" Tap Scr. 5/16-18 x .50" Lg. Price: $4.19
22 14068 Extension Brkt.-R.H. Price: $100.00
23 14069 BRACKET-EX Not Available Price:
24 710-0209 HEX SCREW SEMS 3/8-16 x .62 Not Available Price:
25 710-0258 Hex Bolt 1/4-20 x .62" Lg.* Price: $3.63
26 710-0603 Hex Wash. Hd. "B" Tap Scr. 5/16-18 x .50" Lg. Price: $4.19
27 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
28 712-0297 NUT-OVAL 3/8-16 Not Available Price:
29 736-0105 Bell-Wash. .400" I.D. x .88" Price: $3.96
30 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
31 749-0400 STRUT-STABILIZING Not Available Price:
32 710-0888 Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Price: $3.86
33 710-0331 Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) Price: $6.01
34 912-3057 Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94
35 753-0348 Blade Adapter Kit Price: Call Us
36 736-0217 L-Wash. 3/8" I.D.-H.D. Price: $3.86
37 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
38 14836 STRIP-RETA Not Available Price:
39 710-0896 Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86
40 731-0587 FLAP-RR Not Available Price:
41 14924 BRACKET-CA Not Available Price:
42 728-0171 RIVET Not Available Price:
43 946-0477A CONTROL CABLE Not Available This part replaces 746-0477. Price:
45 710-0654A TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75
46 710-0796 Truss Mach. "B"-Tap Scr. #12 x 1.50" Lg. Price: $4.75
47 725-0157 Cable Tie This part replaces 726-0241. Price: $3.46
48 731-0817 PANEL Not Available Price:
49 731-0524 CONROL DISC PIN Not Available Price:
50 731-0816 CIUTCH PANEL HALF Not Available Price:
51 931-0972 Throttle Control Lever This part replaces 731-0528. Price: $8.84
52 749-0536 UPPER HANDLE Not Available Price:
53 714-0104 Intern. Cot. Pin 5/16" Dia. Price: $3.90
54 725-0157 Cable Tie Price: $3.46
55 710-0671 BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price:
56 710-0842 OPE GUIDE BOLT Not Available Price:
57 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
58 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
59 910-0429 Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20
60 751-0369 CLAMP-CONDUIT Not Available Price:
61 12894 CABLE CLAMP Not Available Price:
62 777-5776 LABEL Price: Call Us
63 777-5773 LABEL - THROTTLE CONTROL Price: Call Us
64 753-0430 CONTROL HOUSING COMP. Not Available Price:
65 748-0147 FLANGE BEARING Not Available Price:
66 710-0227 Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. Price: $3.90
67 731-0564 PLUG Not Available Price:
68 751-0442 CASING CLAMP Not Available Price:
69 710-0651 Hex Wash. Hd. Self-Tap Scr. This part replaces 710-0436. Price: $3.15
70 735-0639 INSULATOR-SPARK PLUG Not Available Price:
