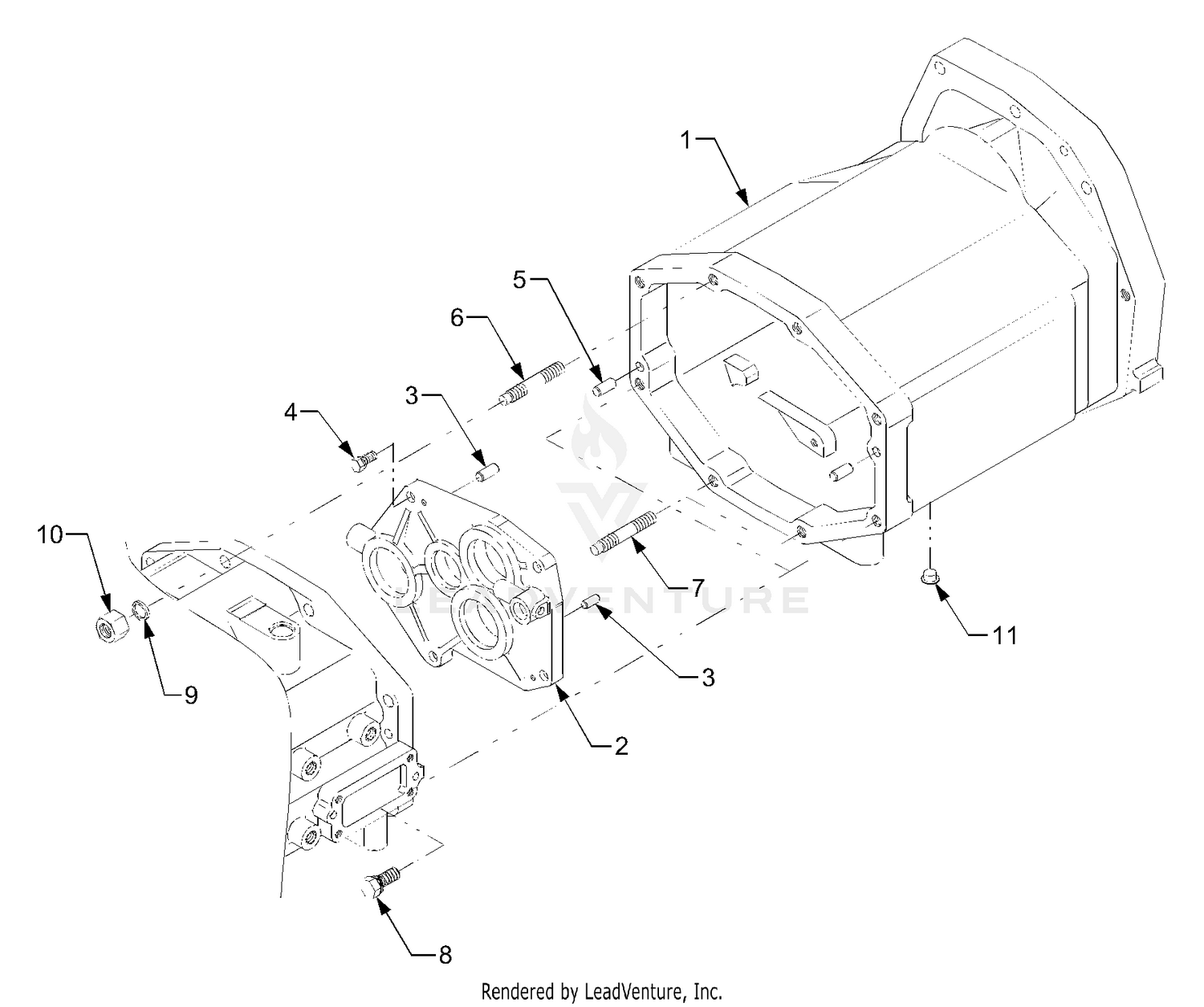

Middle Case Group
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-4620 | PIVOT MOUNT ASM Price: $94.64 |
| 1 | 159460 | WIRE ASM W.SPRING Price: Call Us |
| 1 | DD-T2610-21154 | CASE-TRANS MIDDLE Not Available Price: |
| 2 | DD-T2610-22703 | COVER-MIDDLE CASE Not Available Price: |
| 3 | 105767X | PIN-GROOVE LT Price: Call Us |
| 3 | 3230-1 | BOLT-CARR Price: $1.49 |
| 3 | DD-05012-00816 | DOWEL PIN Not Available Price: |
| 4 | 12000002 | SUB= 2225J Price: Call Us |
| 4 | 3254-8 | WASHER-LOCK Price: $0.37 |
| 4 | DD-01133-51035 | HEX BOLT Not Available Price: |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 5 | 19211621 | WASHER Price: Call Us |
| 5 | DD-05012-01018 | DOWEL PIN Not Available Price: |
| 6 | 120183X | NYLON BEARING Price: Call Us |
| 6 | 132-3831 | LOCK ASM This part replaces 105-5425. Price: $80.77 |
| 6 | DD-T4620-21481 | STUD-CENTER CASE Not Available Price: |
| 7 | 109413X | GRIP Price: Call Us |
| 7 | 32120-47 | RING-RETAINING, EXTERNAL Price: $0.99 |
| 7 | DD-01574-21250 | Stud Price: Call Us |
| 8 | 124526X | SUB= 125925X Price: Call Us |
| 8 | 323-6 | SCREW-HH Price: $0.66 |
| 8 | DD-01133-51240 | HEX BOLT Not Available Price: |
| 9 | 3217-7 | NUT-HEX Price: $0.28 |
| 9 | DD-04512-50120 | LOCK WASHER Not Available Price: |
| 10 | 106-4621 | SUPPORT ASM Price: $74.48 |
| 10 | DD-T4240-14081 | HEX NUT Not Available Price: |
| 11 | 139865 | SUB= 918139865 Price: Call Us |
| 12 | 139866 | SUB= 151140 Price: Call Us |
| 13 | 105-5430 | ROD-CONNECTING Price: $90.44 |
| 13 | 4939M | SUB= 85902 Price: Call Us |
| 14 | 32120-18 | E-RING Price: $0.97 |
| 15 | 127218 | LINK.FRONT Price: Call Us |
| 15 | 2411-38 | JOINT-BALL Price: $21.96 |
| 16 | 73350800 | NUT Price: Call Us |
| 16 | 93-2092 | CLAMP-CABLE Price: $3.46 |
| 17 | 130171 | TRUNION Price: Call Us |
| 17 | 9266934 | SCREW Price: $7.89 |
| 18 | 73800800 | NUT.LK.W/WSH.1/2. Price: Call Us |
| 19 | 139868 | ARM SUSP REAR Price: Call Us |
| 19 | 93-2279 | CLAMP-CABLE Price: $7.12 |
| 20 | 3146R | RETAINER.SPRING Price: Call Us |
| 20 | 322-1 | SCREW-HH Price: $0.22 |
| 21 | 105-5429 | SPACER-PEDAL, TRACTION Price: $33.79 |
| 22 | 105-5445 | CABLE-TRACTION Price: $126.99 |
| 24 | 74-9110 | PAD-PEDAL, REVERSE Price: $13.49 |
| 25 | 105-5421-01 | PEDAL-TRACTION Price: $139.74 |
| 26 | 49-6440-03 | PEDAL-FORWARD Price: $84.90 |
| 27 | 74-9100 | PAD-PEDAL, FORWARD Price: $27.08 |
| 28 | 32121-45 | PIN-SPRING Price: $0.27 |
| 29 | 256-155 | BUSHING-FLANGE Price: $1.76 |
| 30 | 32128-20 | NUT-HF Price: $0.99 |
| 31 | 140302 | BEARING PVT LH Price: Call Us |
| 31 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 32 | 17-9426 | SCREW-HANDLE Price: $3.49 |
| 33 | 105-8290-01 | BRACKET-BULKHEAD, FRONT Price: $13.09 |
| 34 | 105-5444 | CABLE-LOCK, NEUTRAL Price: $109.43 |
| 35 | 3296-56 | NUT-LOCK, NI Price: $2.09 |
| 36 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 37 | 105-8318 | WASHER-FLAT Price: $1.97 |
| 38 | 2411-41 | ROD END-BALL JOINT Price: $40.28 |
| 39 | 80-0650 | SPACER-TUBULAR Price: $6.99 |
| 40 | 321-10 | SCREW-HH Price: $1.29 |
| 41 | 69-9010 | WASHER Price: $1.83 |
| 42 | 240-3 | GROMMET-RUBBER Price: $17.44 |
| 43 | 340-74 | NUT-LOCK, BULKHEAD Price: $4.83 |
| 44 | 125-1984 | SPACER This part replaces 69-9000. Price: $0.68 |
| 45 | 99-6810 | SCREW-HHF Price: $3.09 |
| 46 | 105-5491 | DISCONTINUED Price: Call Us |
| 47 | 3219-14 | NUT-HEX Price: $0.25 |
| 48 | 302-5 | FITTING-GREASE Price: $0.59 |
