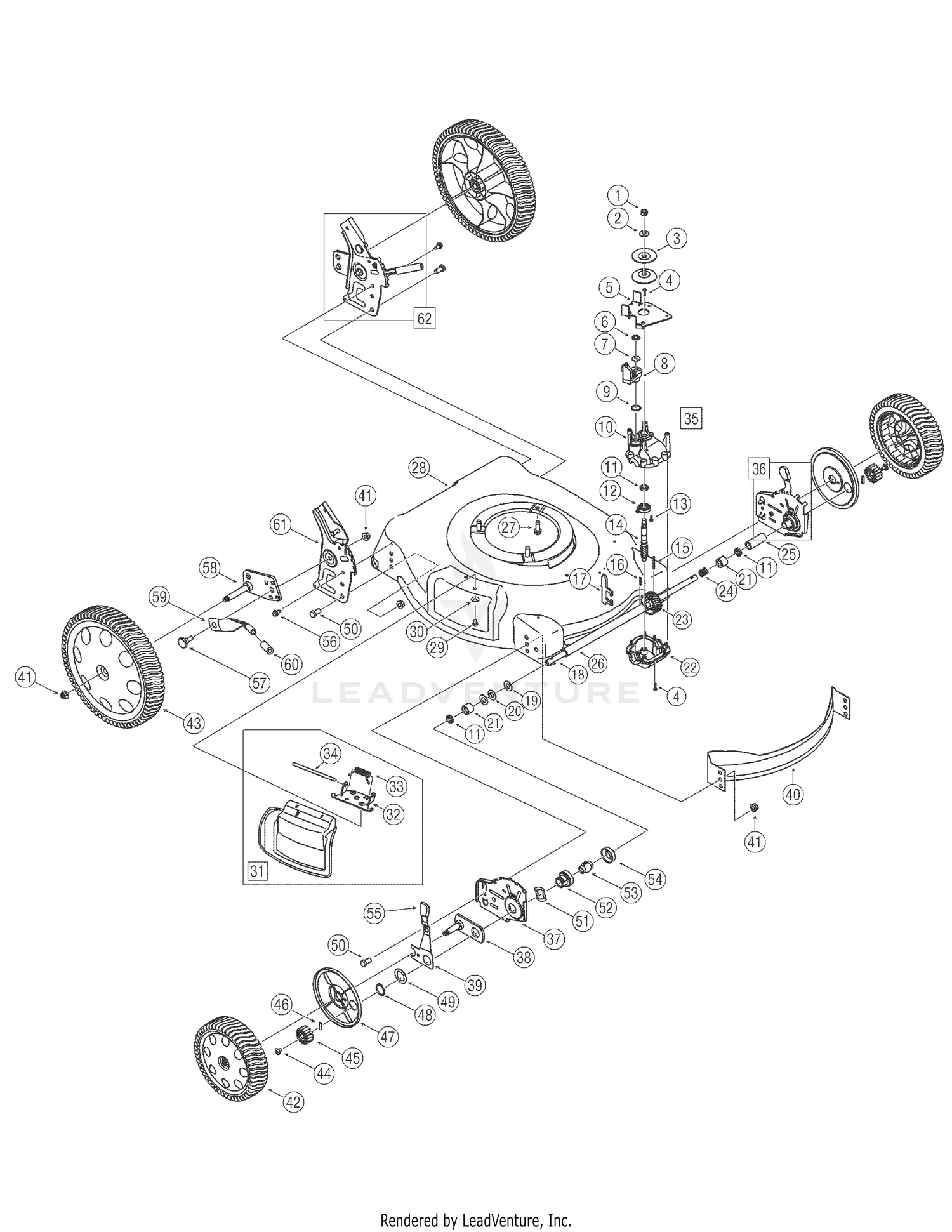

| Ref | Part Number | Description |
|---|
| 1 |
712-0214 |
Hex Lock Nut, 3/8-24 Price: $5.94 |
| 2 |
736-0105 |
Bell Washer.325 x.930 x.45 Price: $3.96 |
| 3 |
756-04132 |
HALF PULLEY 2.3 OD Not Available Price: |
| 4 |
710-04329 |
Torx Screw Price: $4.13 |
| 5 |
707-04567A |
Transmission Bracket Price: Call Us |
| 6 |
712-0229 |
PUSH NUT This part replaces 726-04043. Price: $3.14 |
| 7 |
736-04178A |
Slotted Washer Price: $8.77 |
| 8 |
731-05187 |
CLUTCH LEVER Not Available Price: |
| 9 |
721-04110 |
O-RING Not Available Price: |
| 10 |
731-05099A |
Upper Housing Price: Call Us |
| 11 |
721-04107A |
OIL SEAL This part replaces 721-04107. Price: $3.95 |
| 12 |
741-04116 |
Ball Bearing Price: $6.90 |
| 13 |
710-04374 |
Hex Screw Price: $3.24 |
| 14 |
711-04317 |
PINION SHAFT Not Available Price: |
| 15 |
715-04030 |
ROLL PIN Not Available Price: |
| 16 |
715-0129 |
Spirol Pin Price: $4.19 |
| 17 |
707-04409A |
Shifter Fork Price: Call Us |
| 18 |
711-04429 |
OUTPUT SHAFT Not Available Price: |
| 19 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 736-0572. Price: $4.37 |
| 20 |
736-04224 |
Flat Washer Price: $3.70 |
| 21 |
741-04106 |
PLASTIC BUSHING Not Available Price: |
| 22 |
731-04883 |
HOUSING:LOWER:SP TRANS Not Available Price: |
| 24 |
732-04290 |
COMPRESSION SPRING Not Available Price: |
| 25 |
750-04405 |
Slev. Spacer 1.8" Lg. Price: $4.29 |
| 26 |
750-04404 |
SLEEVE SPACER .520IDX9.1LG Not Available Price: |
| 27 |
710-0654A |
Self-Tapping Sems Screw Price: $3.75 |
| 29 |
710-0599 |
TT Screw 1/4-20 x 0.5 Price: $3.86 |
| 30 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 31 |
987-02055 |
Hinged Mulch Plug Assembly This part replaces 687-02055. Price: $24.18 |
| 32 |
17032A |
PLATE-ADAPTER Not Available Price: |
| 33 |
987-02055 |
Hinged Mulch Plug Assembly This part replaces 731-04161. Price: $24.18 |
| 34 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 34 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 35 |
918-04377B |
Transmission Ass’y Com plete This part replaces 618-04377. Price: $197.26 |
| 36 |
987-02193A |
Height Adjustment Ass’y - LH This part replaces 687-02193. Price: $58.00 |
| 36 |
987-02194A |
Height Adjustment Assembly RH This part replaces 687-02194. Price: $58.00 |
| 37 |
787-01298A-0637 |
ADJUSTMENT PLATE (RH) Not Available This part replaces 787-01298. Price: |
| 37 |
787-01299A-0637 |
ADJUSTMENT PLATE (LH) Not Available This part replaces 787-01299. Price: |
| 38 |
687-02044 |
PIVOT PLATE ASSEMBLY Not Available Price: |
| 39 |
732-0706 |
Front Lever - RH Price: $14.83 |
| 39 |
732-0707 |
Front Lever - LH Price: $14.83 |
| 40 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002B. Price: |
| 41 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 42 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018A. Price: $16.82 |
| 43 |
734-04019 |
REAR WHEEL12X2.1 This part replaces 734-04127. Price: $61.69 |
| 44 |
710-04531 |
Screw 1/4-20 x .390 Price: $4.42 |
| 45 |
717-1761 |
Gear 14T LH FWD LH Price: $12.11 |
| 45 |
717-1762 |
Gear 14T RH FWD RH Price: $12.11 |
| 46 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
| 47 |
782-7551A |
Wheel Dust Cap Price: $4.80 |
| 48 |
716-0102 |
Snap Ring Price: $4.40 |
| 49 |
736-0474 |
Flat Washer Price: $5.94 |
| 50 |
710-0216 |
Hex Screw, 3/8-16 x.75 Price: $3.93 |
| 51 |
736-0447 |
Wave Washer Price: $3.90 |
| 52 |
748-0355 |
SUPPORT BEARING Not Available Price: |
| 53 |
741-0604A |
Sleeve Bearing Price: $11.31 |
| 54 |
732-0708 |
BEARING RETAINER Not Available Price: |
| 55 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 56 |
710-1652 |
TT Scr. w/Washer 1/4-20 x.625 Price: $3.86 |
| 57 |
738-0507B |
Shoulder Scr.500 Dia. x.434 Price: $3.86 |
| 58 |
987-02335 |
Pivot Bar RH This part replaces 687-02039A. Price: $23.73 |
| 58 |
987-02336 |
PIVOT ARM ASSEMBLY (LH) Not Available This part replaces 687-02040A. Price: |
| 59 |
732-0866 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 60 |
720-0312 |
Foam Grip Price: $4.06 |
| 61 |
687-02191 |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
| 61 |
687-02192 |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 62 |
687-02057 |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
