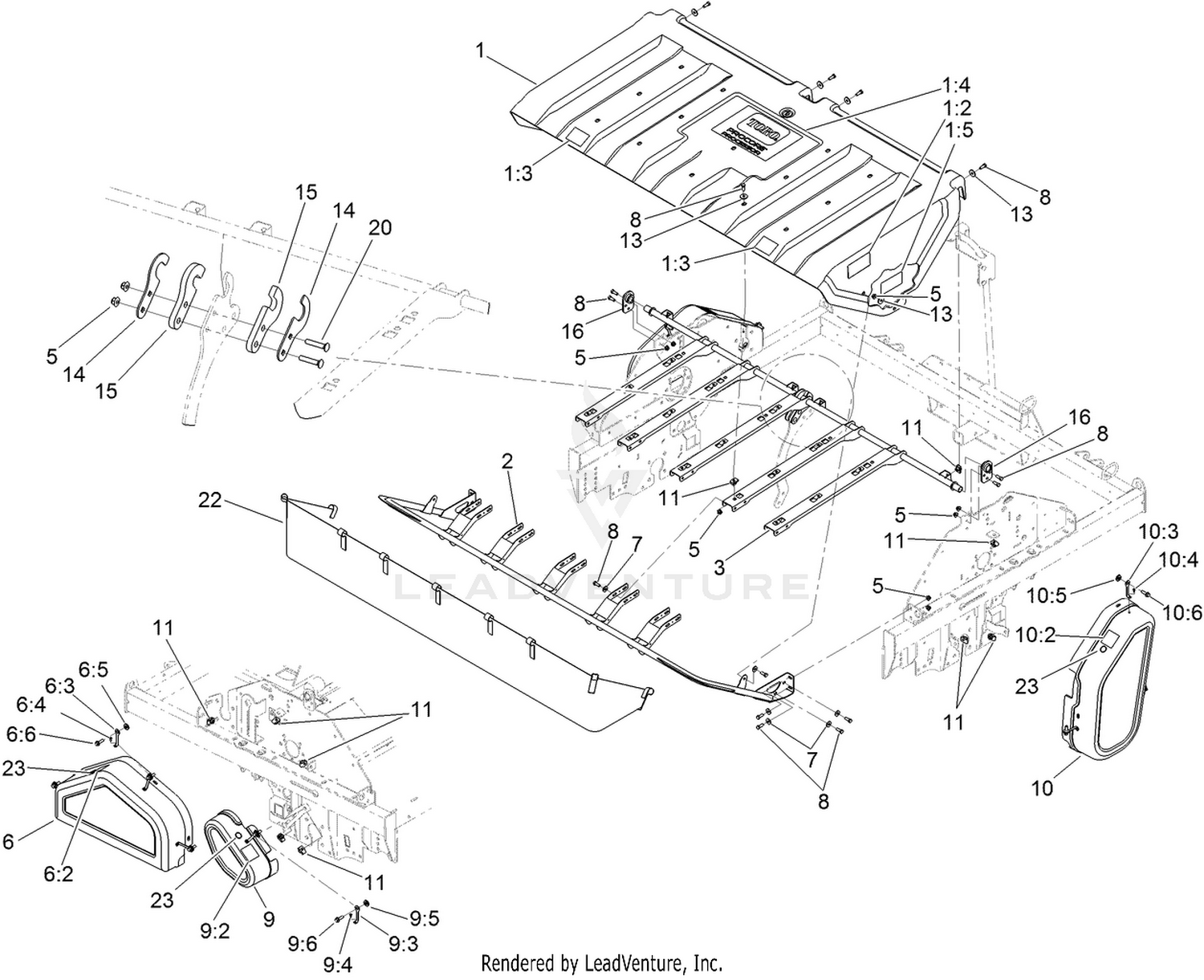

Shield and Cover Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-7745 | REAR COVER ASM Price: $967.85 |
| 2 | 114-7666-03 | HOOP-FRAME Price: $866.45 |
| 3 | 112-4392-03 | SUBFRAME Price: $706.70 |
| 5 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 6 | 119-2981 | COVER-BELT Price: $210.90 |
| 7 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 8 | 323-6 | SCREW-HH Price: $0.66 |
| 9 | 119-2983 | COVER-BELT Price: $213.33 |
| 10 | 119-2982 | COVER-BELT Price: $295.94 |
| 11 | 105-4886 | NUT-TINNERMAN Price: $2.37 |
| 13 | 2844 | WASHER Price: $2.69 |
| 14 | 114-7659 | PLATE-BACKING, HOOK Price: $11.70 |
| 15 | 114-3949 | PIVOT Price: $16.69 |
| 16 | 114-7656 | PIVOT Price: $53.40 |
| 20 | 3231-6 | SCREW-CARR Price: $2.69 |
| 22 | 114-7762 | FABRIC Price: $84.62 |
