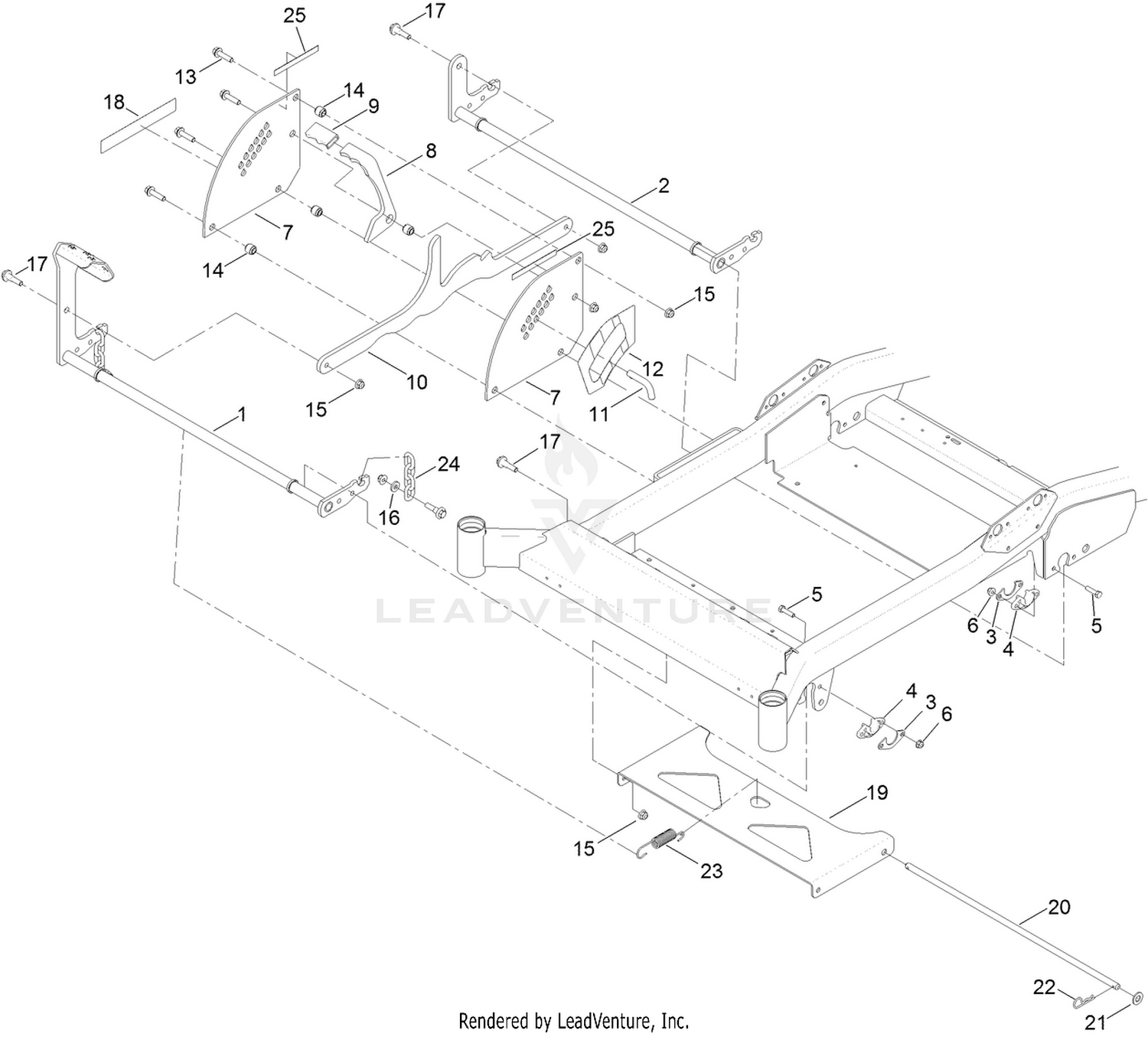

Deck Lift Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-4058-03 | PIVOT-FRONT This part replaces 130-0657-03. Price: $161.99 |
| 2 | 131-4059-03 | PIVOT-REAR This part replaces 130-0658-03. Price: $799.99 |
| 3 | 116-2887 | GUSSET-LIFT, DECK Price: $4.39 |
| 4 | 115-5065 | BUSHING-FLANGE Price: $6.29 |
| 5 | 322-6 | SCREW-HH Price: $0.45 |
| 6 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 127-3389-03 | PLATE-DECK, LIFT Price: $46.99 |
| 8 | 127-3391 | LOCK-TRANSPORT, HOC Price: $31.99 |
| 9 | 116-4312 | GRIP-FLAT Price: $3.09 |
| 10 | 127-3390-03 | LINK-HOC Price: $87.99 |
| 11 | 116-5584 | PIN-HOC Price: $4.69 |
| 12 | 130-0654 | DECAL-HOC Price: $14.99 |
| 13 | 114-4681 | SCREW-HHF Price: $0.89 |
| 14 | 116-4313 | SPACER-STEP, DOUBLE Price: $3.89 |
| 15 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 16 | 43-0940 | SPACER Price: $1.25 |
| 17 | 130-0742 | BOLT-SHOULDER Price: $1.79 |
| 18 | 130-0786 | DECAL Price: $7.19 |
| 19 | 127-3329-01 | PAN-DECK, PIVOT Price: $72.99 |
| 20 | 127-3399 | ROD-DECK, PIVOT Price: $25.99 |
| 21 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 22 | 1-806005 | PIN-COTTER Price: $2.39 |
| 23 | 115-9652 | SPRING-EXTENSION Price: $12.99 |
| 24 | 130-0668 | CHAIN-DECKLIFT Price: $7.19 |
