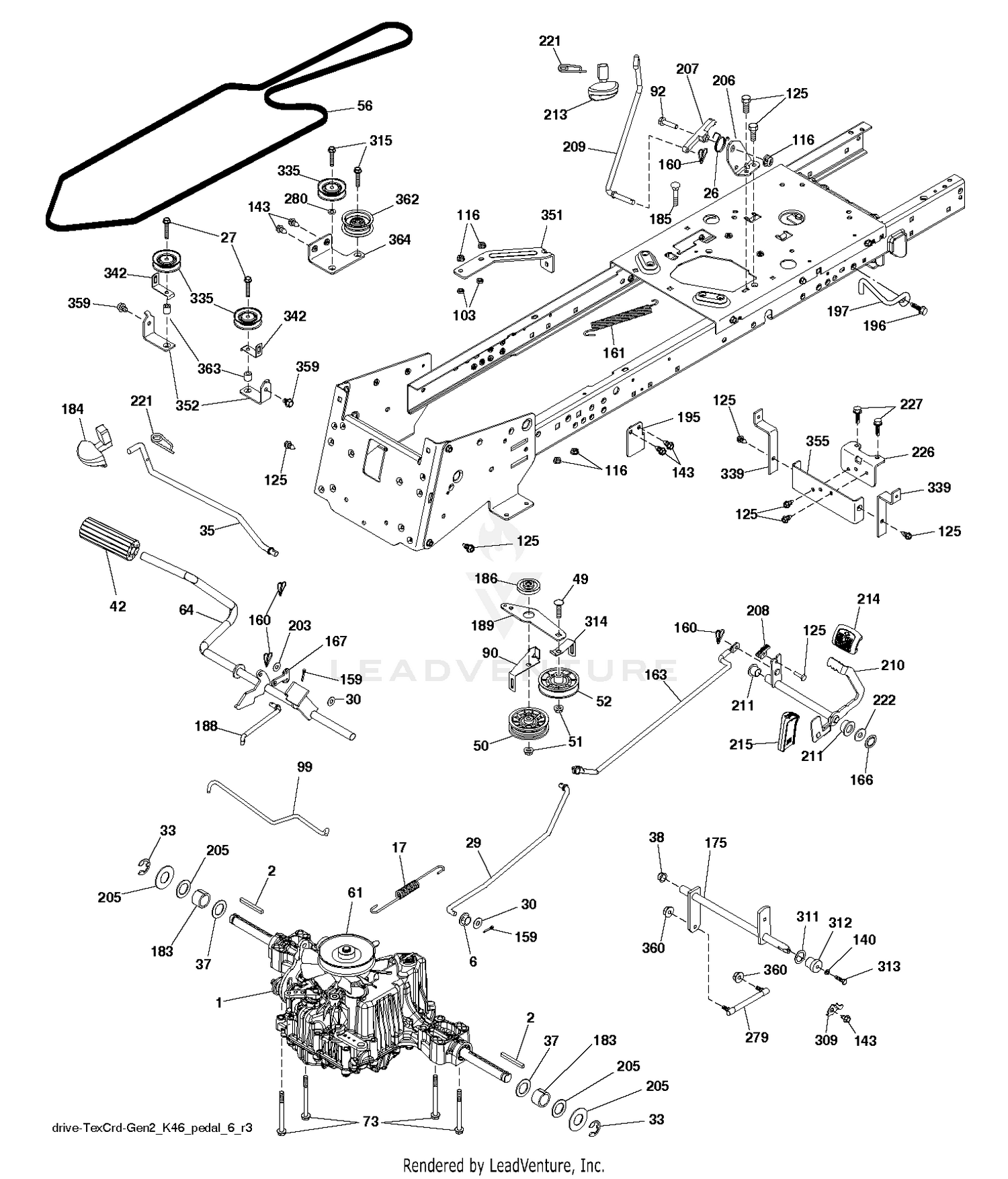

DRIVE
Parts (100)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-2101 | INLET MANIFOLD ASM Price: $987.89 |
| 2 | 532123583 | SQUARE KEY Price: $2.69 |
| 2 | 99-2102 | GASKET-INLET, MANIFOLD Price: $17.27 |
| 3 | 99-1828 | BOLT W/WASHER Price: $4.11 |
| 4 | 70-6090 | ELBOW Price: $286.34 |
| 5 | 99-2104 | GASKET-HEATER, AIR Price: $15.14 |
| 6 | 532124028 | GROMMET T Price: $3.99 |
| 6 | 99-1811 | BOLT W/WASHER Price: $2.70 |
| 7 | 99-2108 | EXHAUST MANIFOLD ASM Price: $517.36 |
| 8 | 99-2105 | GASKET-EXHAUST, MANIFOLD Price: $42.54 |
| 9 | 107-4819 | STUD Price: $19.76 |
| 10 | 99-2109 | SPACER Price: $7.20 |
| 11 | 99-2110 | WASHER Price: $24.82 |
| 12 | 51-7250 | WASHER Price: $1.22 |
| 13 | 60-7120 | NUT Price: $1.55 |
| 14 | 99-2111 | BOLT W/WASHER Price: $3.60 |
| 15 | 99-2106 | PIPE-EXHAUST Price: $579.07 |
| 16 | 99-2107 | GASKET-EXHAUST Price: $9.43 |
| 17 | 532436227 | Price: $2.99 |
| 17 | 99-2112 | STUD Price: $7.59 |
| 18 | 99-2113 | NUT-LOCK Price: $20.31 |
| 19 | 99-2114 | GASKET-EXHAUST Price: $6.11 |
| 20 | 107-4820 | STUD Price: $52.74 |
| 21 | 99-2113 | NUT-LOCK Price: $20.31 |
| 22 | 99-2116 | HOSE-AIR Price: $113.17 |
| 23 | 107-4821 | CLAMP-HOSE Price: $14.72 |
| 26 | 532199679 | SPRING.RETURN.CRUISE Price: $2.99 |
| 27 | 817490528 | SCREW Price: $2.99 |
| 29 | 532442795 | Price: $6.99 |
| 30 | 819131612 | Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99 |
| 33 | 812000001 | E-RING LT Price: $2.99 |
| 35 | 532435486 | ROD.BRAKE.PARTK.HUSQ.TEX Price: $8.99 |
| 37 | 532188967 | WASHER.HARDENED Price: $2.99 |
| 38 | 532169613 | NYLINER SNAP 5/8" ID Price: $3.99 |
| 42 | 532008883 | Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 49 | 872110614 | BOLT Price: $3.99 |
| 50 | 532194327 | IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 | 532409148 | NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 52 | 532194326 | IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 | 532442781 | Price: $44.99 |
| 61 | 532445151 | Price: $42.99 |
| 64 | 532197865 | SHAFT.ASM.PEDAL.BRK.CNTR Price: $31.99 |
| 73 | 874490544 | BOLT HEX 5/16-18 GR 5 Price: $2.99 |
| 90 | 532443605 | Price: $1.99 |
| 92 | 874520520 | Bolt 5/16-18 x 1-1/4 This part replaces 874760520. Price: $2.99 |
| 99 | 532443947 | Price: $2.99 |
| 103 | 873220500 | Hex, Nut 5/16-18 This part replaces 873350500. Price: $3.99 |
| 116 | 873900500 | NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 125 | 532428867 | BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 140 | 810040400 | LOCKWASHER Price: $3.99 |
| 143 | 817490508 | Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 159 | 876020412 | COTTER PIN Price: $3.99 |
| 160 | 532169484 | RETAINER CLIP Price: $4.99 |
| 161 | 532105709 | SPRING, RETURN LT Price: $7.99 |
| 163 | 532442793 | Price: $14.99 |
| 166 | 532429164 | NUT.PUSH.625 Price: $2.99 |
| 167 | 532405257 | LATCH.BRAKE.SPRING Price: $2.99 |
| 175 | 532429359 | Price: $9.99 |
| 183 | 532137057 | SPACER AXLE Price: $3.99 |
| 184 | 532403118 | HANDLE.PARKG.BRK.HUSQ/ This part replaces 532441455. Price: $7.99 |
| 185 | 872110622 | BOLT Price: $3.99 |
| 186 | 532194321 | SPACER.RETAINER Price: $3.99 |
| 188 | 532194323 | LINK.CLUTCH.GROUND.DRIVE Price: $7.99 |
| 189 | 532433611 | Price: $1.99 |
| 195 | 532435865 | Price: Call Us |
| 196 | 817000616 | SCREW 3/8-16X1 Price: $3.99 |
| 197 | 532195804 | LINK.CLUTCH.ANIT-ROTAT Price: $4.99 |
| 203 | 734116301 | WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 205 | 532121748 | WASHER Price: $1.99 |
| 206 | 532197867 | BRKT.MOUNT.LATCH.CRUIS Price: $2.99 |
| 207 | 532197868 | LATCH.CONTROL.CRUISE Price: $6.99 |
| 208 | 532197869 | GEAR.SECTOR.CONTROL.CR Price: $3.99 |
| 209 | 532199592 | ROD.CONTROL.CRUISE.GT. Price: $7.99 |
| 210 | 532400980 | ROCKER.ASM.PEDAL.CONTR Price: $19.99 |
| 211 | 532120183 | BEARING.NYLON Price: $2.99 |
| 213 | 532403119 | KNOB.CONTROL.CRUSIE.HU Price: $7.99 |
| 214 | 532421263 | PAD PEDAL FORWARD Price: $4.99 |
| 215 | 532419482 | Price: $3.99 |
| 221 | 532403187 | RETAINER.SPRING.CLIP.H Price: $2.99 |
| 222 | 879212010 | WASHER 21/32 X 1-1/4 X 10 GA. Price: $2.99 |
| 226 | 532401564 | BRACKET.MOUNT.TORQUE.K46.TLT Price: $12.99 |
| 227 | 539976934 | HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 279 | 532444283 | Price: $6.99 |
| 280 | 819111012 | WASHER T Price: $3.99 |
| 309 | 532165581 | PLATE FASTENING LT Price: $2.99 |
| 311 | 532169845 | WASHER NYL Price: $2.99 |
| 312 | 532165614 | HUB Price: $3.99 |
| 313 | 874780416 | BOLT Price: $3.99 |
| 314 | 532444713 | Price: $1.99 |
| 315 | 817580520 | BOLT.5/16-18X1.25 Price: $2.99 |
| 335 | 532199534 | PULLEY.V-IDLER. Price: $22.99 |
| 339 | 532436867 | Price: $1.99 |
| 342 | 532182682 | Keeper Belt 2.5" Od V-Idler CRD Price: $1.99 |
| 351 | 532436998 | Price: $2.99 |
| 352 | 532435645 | Price: $1.99 |
| 355 | 532435669 | Price: $2.99 |
| 359 | 817490610 | SCREW LT.3/8-46X5/8 Price: $2.99 |
| 360 | 532444714 | Price: $1.99 |
| 362 | 532436812 | Price: $16.99 |
| 363 | 532442780 | Price: $1.99 |
