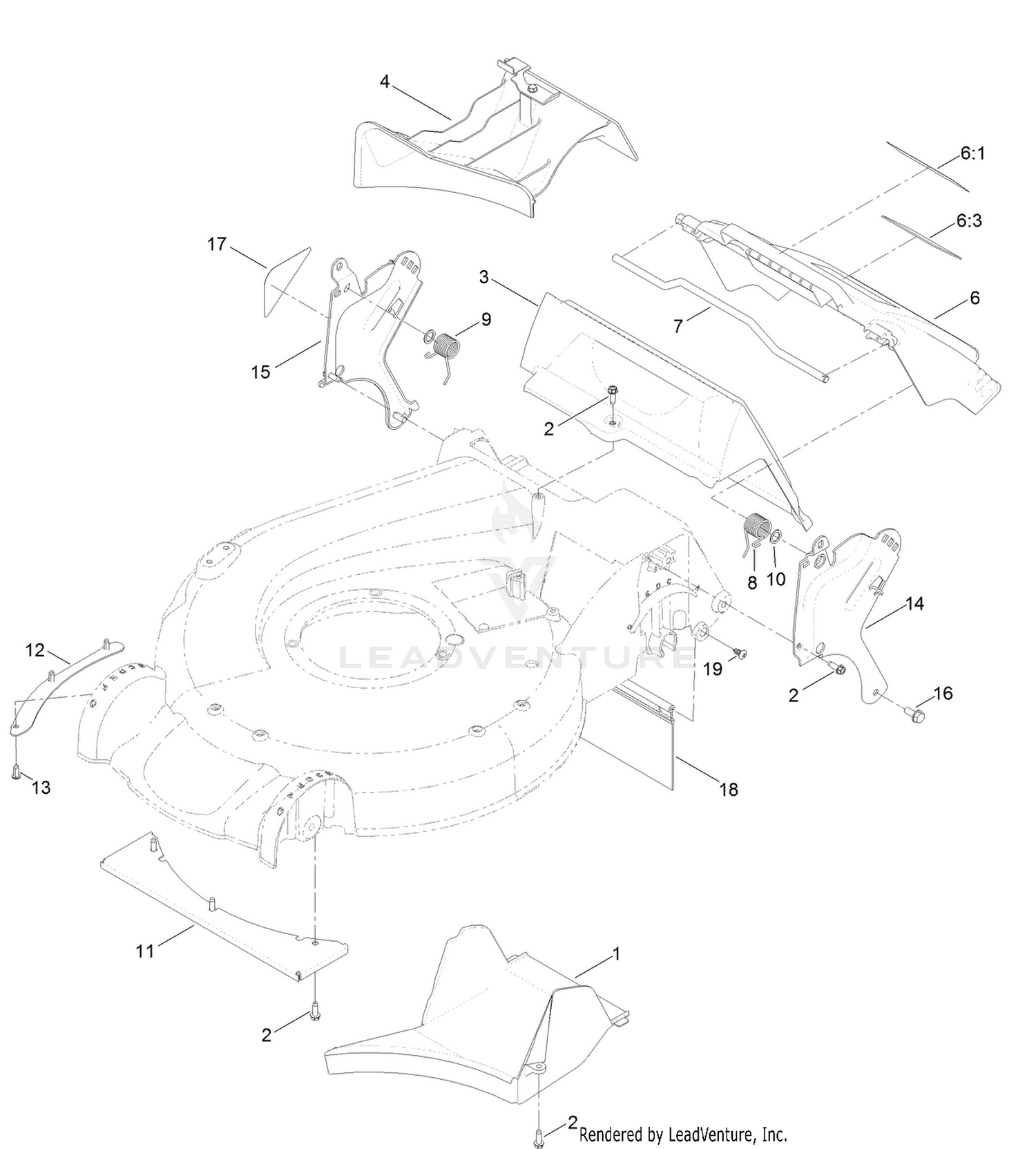

Rear Door and Mulch Plug Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-7495 | TUNNEL-DISCHARGE Price: $16.78 |
| 2 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 3 | 114-2668 | CHUTE Price: $25.13 |
| 4 | 115-8413 | MULCH PLUG ASM Price: $25.61 |
| 6 | 119-3803 | REAR DOOR ASM Price: $30.87 |
| 7 | 117-9378 | ROD-DEFLECTOR Price: $23.56 |
| 8 | 115-2859 | SPRING-TORSION Price: $3.33 |
| 9 | 114-7924 | SPRING-TORSION Price: $2.22 |
| 10 | 94-8196 | WASHER-NYLON Price: $4.44 |
| 11 | 108-3797-03 | PLATE-COVER, FRONT Price: $49.79 |
| 12 | 105-1316-03 | SHEET-LIP Price: $3.42 |
| 13 | 63-8590 | SCREW Price: $0.99 |
| 14 | 114-2671-03 | BRACKET-HANDLE, LH Price: $17.61 |
| 15 | 114-2672-03 | BRACKET-HANDLE, RH Price: $17.61 |
| 16 | 32144-11 | SCREW-THD ROLL, HWH Price: $6.99 |
| 17 | 115-2884 | DECAL-INSTRUCTION Price: $3.33 |
| 18 | 120-7011 | SHIELD-TRAILING Price: $23.28 |
