| Ref | Part Number | Description |
|---|
| 1 |
46318 |

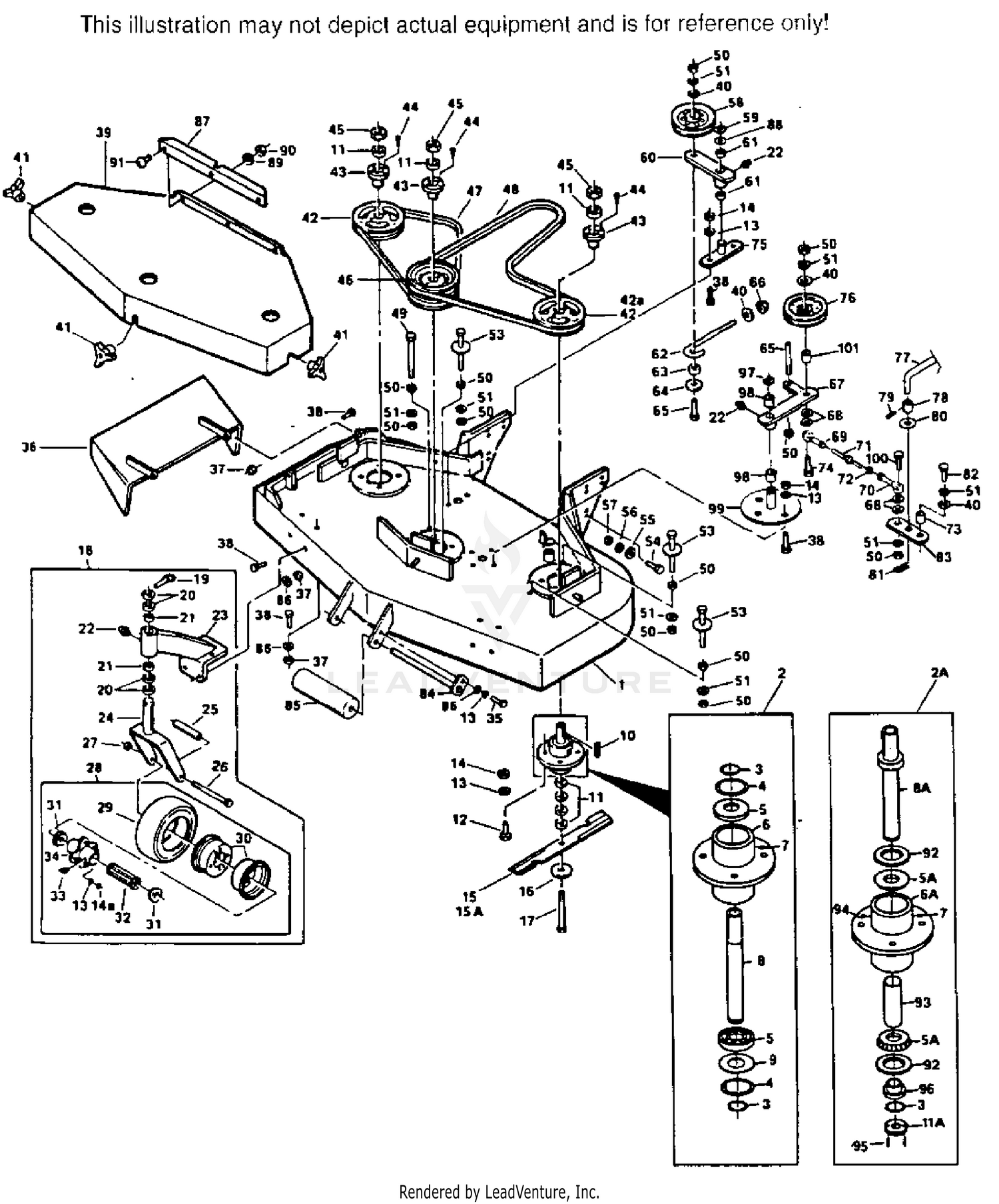

CUTTER DECK(INCLUDES DECALS) Price: Call Us |
| 2 |
48926 |
Hub, Tapered 1.125" bore This part replaces 46020. Price: Call Us |
| 2A |
48926 |
Hub, Tapered 1.125" bore This part replaces 46400. Price: Call Us |
| 3 |
04050-04 |
RETAINING RING, 1" EXT.-INVERTED Price: Call Us |
| 4 |
04050-07 |
RETAINING RING, 2-7/16 INT.-BASIC Price: Call Us |
| 5 |
48101-02 |
BEARING, CUTTER SPINDLE Price: Call Us |
| 5A |
48668 |
Bearing Set Price: Call Us |
| 6 |
48926 |
Hub, Tapered 1.125" bore This part replaces 41001. Price: Call Us |
| 6A |
461663 |
Spindle Assembly This part replaces 41007. Price: Call Us |
| 7 |
48114-02 |
GREASE FITTING, STR. 5/16 SERR. Price: Call Us |
| 8 |
43001-02 |
SPINDLE, CUTTER BLADE Price: Call Us |
| 8A |
43275 |
SHAFT, CUTTER SPINDLE This part replaces 45391. Price: Call Us |
| 9 |
04041-02 |
WASHER, 1-15/16 X 2-13/32 X 16 GA. Price: Call Us |
| 10 |
04063-08 |
KEY, 1/4 X 1/4 X 2 Price: Call Us |
| 11 |
43592 |
Spacer, Cutter Blade This part replaces 43038. Price: Call Us |
| 11A |
43201 |
SPACER, CUTTER BLADE Price: Call Us |
| 15 |
481707 |
Cutter Blade, 18" This part replaces 48108. Price: Call Us |
| 15A |
481711 |
Cutter Blade, 18 Hi-Lift This part replaces 48185. Price: Call Us |
| 16 |
04040-10 |
FLAT WASHER, 5/8 Price: Call Us |
| 17 |
04001-41 |
HEX HEAD BOLT, 5/8-11 X 9-1/2 Price: Call Us |
| 18 |
46079 |
CASTER ASSY, COMPLETE(INCLUDES 19-28) Price: Call Us |
| 19 |
04066-01 |
QUICK PIN Price: Call Us |
| 20 |
43037-01 |
SPACER, CASTER YOKE, 1/2 LONG Price: Call Us |
| 21 |
48100-01 |
BRONZE BEARING Price: Call Us |
| 22 |
48114-04 |
GREASE FITTING, STR. 1/4-28 Price: Call Us |
| 23 |
46082 |
SUPPORT ASSY.(INCLUDES 21-22) Price: Call Us |
| 24 |
45006 |
CASTER YOKE Price: Call Us |
| 25 |
43022 |
SLEEVE, CASTER WHEEL BEARING Price: Call Us |
| 26 |
04001-37 |
HEX HEAD BOLT, 1/2-13 X 5-1/2 Price: Call Us |
| 28 |
48307 |
Wheel Assy., Caster This part replaces 48307-01. Price: Call Us |
| 29 |
481774 |
Tire Only, Caster Wheel This part replaces 48307-02. Price: Call Us |
| 29A |
481773 |
Inner Tube Only, Caster Wheel This part replaces 48006-03. Price: Call Us |
| 30 |
481772 |
Rim Pair, Caster Wheel This part replaces 48307-04. Price: Call Us |
| 31 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 32 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 33 |
48114-03 |
GREASE FITTING, 45' 1/4-28 Price: Call Us |
| 34 |
481768 |
Hub Assy. W/Bolts, Caster Wheel This part replaces 48006-05. Price: Call Us |
| 36 |
461291 |
Discharge Chute This part replaces 45100. Price: Call Us |
| 39 |
46319 |
BELT COVER(INCLUDES DECALS) Price: Call Us |
| 41 |
04029-03 |
WING NUT, 3/8-16 Price: Call Us |
| 42 |
48141 |
Hub, Tapered 1.00" bore This part replaces 48127. Price: Call Us |
| 43 |
48141 |
TAPER HUB Price: Call Us |
| 46 |
48141 |
Hub, Tapered 1.00" bore This part replaces 48412. Price: Call Us |
| 47 |
48285 |
BELT, RH BLADE DRIVE Price: Call Us |
| 48 |
48530 |
BELT, BLADE DRIVE Price: Call Us |
| 53 |
45098 |
BELT GUIDE Price: Call Us |
| 58 |
48181 |
PULLEY Price: Call Us |
| 59 |
04050-02 |
RETAINING RING, 3/4" EXT. - "E" Price: Call Us |
| 60 |
46081 |
IDLER ARM ASSEMBLY(INCLUDES 22 & 61) Price: Call Us |
| 61 |
48100-05 |
BRONZE BEARING Price: Call Us |
| 62 |
43028 |
J ROD, IDLER PULLEY Price: Call Us |
| 63 |
43077 |
SPACER Price: Call Us |
| 64 |
04041-12 |
WASHER, 3/8 X 1-1/2 X 16 GA. Price: Call Us |
| 65 |
04004-04 |
STUD Price: Call Us |
| 67 |
46434 |
IDLER ARM(INCL. 22 & 98) Price: Call Us |
| 69 |
48544 |
ROD END LH THD(SILVER) Price: Call Us |
| 70 |
48464 |
ROD END RH THD(GOLD) Price: Call Us |
| 71 |
48590 |
LINK, TURNBUCKLE Price: Call Us |
| 73 |
43042 |
SLEEVE, CAM CLUTCH Price: Call Us |
| 75 |
45037 |
IDLER PIVOT Price: Call Us |
| 76 |
483215 |
Pulley, 5" Dia. Idler This part replaces 48269. Price: Call Us |
| 77 |
44054 |
BLADE CLUTCH ROD Price: Call Us |
| 78 |
43043 |
SLEEVE, CLUTCH ROD Price: Call Us |
| 81 |
04062-01 |
HAIR PIN, LARGE Price: Call Us |
| 83 |
421107 |
CAM LINK Price: Call Us |
| 84 |
45944 |
Shaft, Roller This part replaces 45046. Price: Call Us |
| 85 |
48038 |
GUIDE ROLLER Price: Call Us |
| 87 |
42045 |
BELT COVER SKIRT Price: Call Us |
| 88 |
04041-08S |
FLAT WASHER, 49/64 X 1-1/4 X 16 GA. Price: Call Us |
| 92 |
481024 |
Seal, Top This part replaces 48681. Price: Call Us |
| 93 |
43218 |
SLEEVE, CUTTER SPINDLE Price: Call Us |
| 94 |
48677 |
RELIEF FITTING, CUTTER SPINDLE Price: Call Us |
| 96 |
43217 |
SPINDLE BUSHING Price: Call Us |
| 97 |
04050-05 |
RETAINING RING, 1 1/8" EXT - "E" Price: Call Us |
| 98 |
48100-02 |
BRONZE BEARING Price: Call Us |
| 99 |
45329 |
IDLER PIVOT Price: Call Us |
