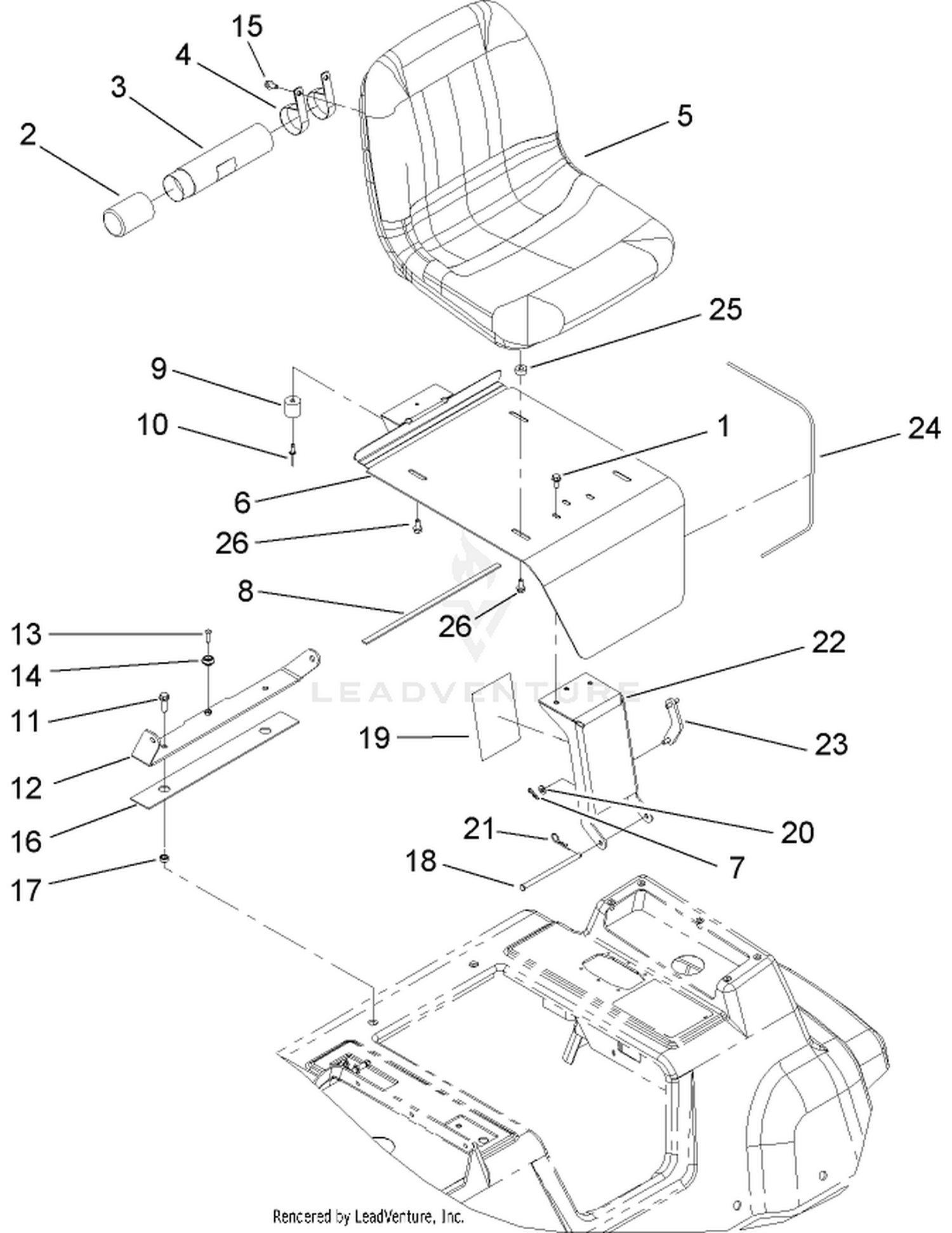

Seat Support Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3234-5 | SCREW-HHF Price: $0.42 |
| 2 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 3 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 4 | 2412-133 | CLAMP-R Price: $3.19 |
| 5 | 112-2923 | SEAT ASM This part replaces 106-6672. Price: $290.09 |
| 6 | 108-3687-03 | BRACKET-SEAT Price: $220.72 |
| 7 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 8 | 100-8499 | SEAL-FOAM Price: $15.83 |
| 9 | 99-7830 | RECEPTICAL-RUBBER Price: $14.12 |
| 10 | 3290-412 | RIVET-BLIND Price: $3.19 |
| 11 | 3234-24 | SCREW-HHF Price: $3.19 |
| 12 | 107-8614-03 | BRACKET-SEATBELT Price: $55.09 |
| 13 | 32108-5 | SCREW-FH Price: $2.29 |
| 14 | 99-7833 | POST-HOLDING Price: $4.18 |
| 15 | 33104-016 | SCREW-HHF Price: $0.97 |
| 16 | 100-8463 | SEAL-FOAM Price: $11.75 |
| 17 | 100-8464 | SPACER Price: $26.19 |
| 18 | 100-8501 | PIN-CLEVIS Price: $5.22 |
| 19 | 108-3699 | DECAL-FUSE, BLOCK Price: $13.87 |
| 20 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 21 | 9335054 | PIN-HAIR Price: $1.49 |
| 22 | 106-4958-03 | BRACKET-HINGE Price: $131.10 |
| 23 | 106-5171 | PROP-SEAT Price: $55.54 |
| 24 | 100-8500 | TRIM-SEAT Price: $58.50 |
| 25 | 104-8426 | SPACER Price: $7.99 |
