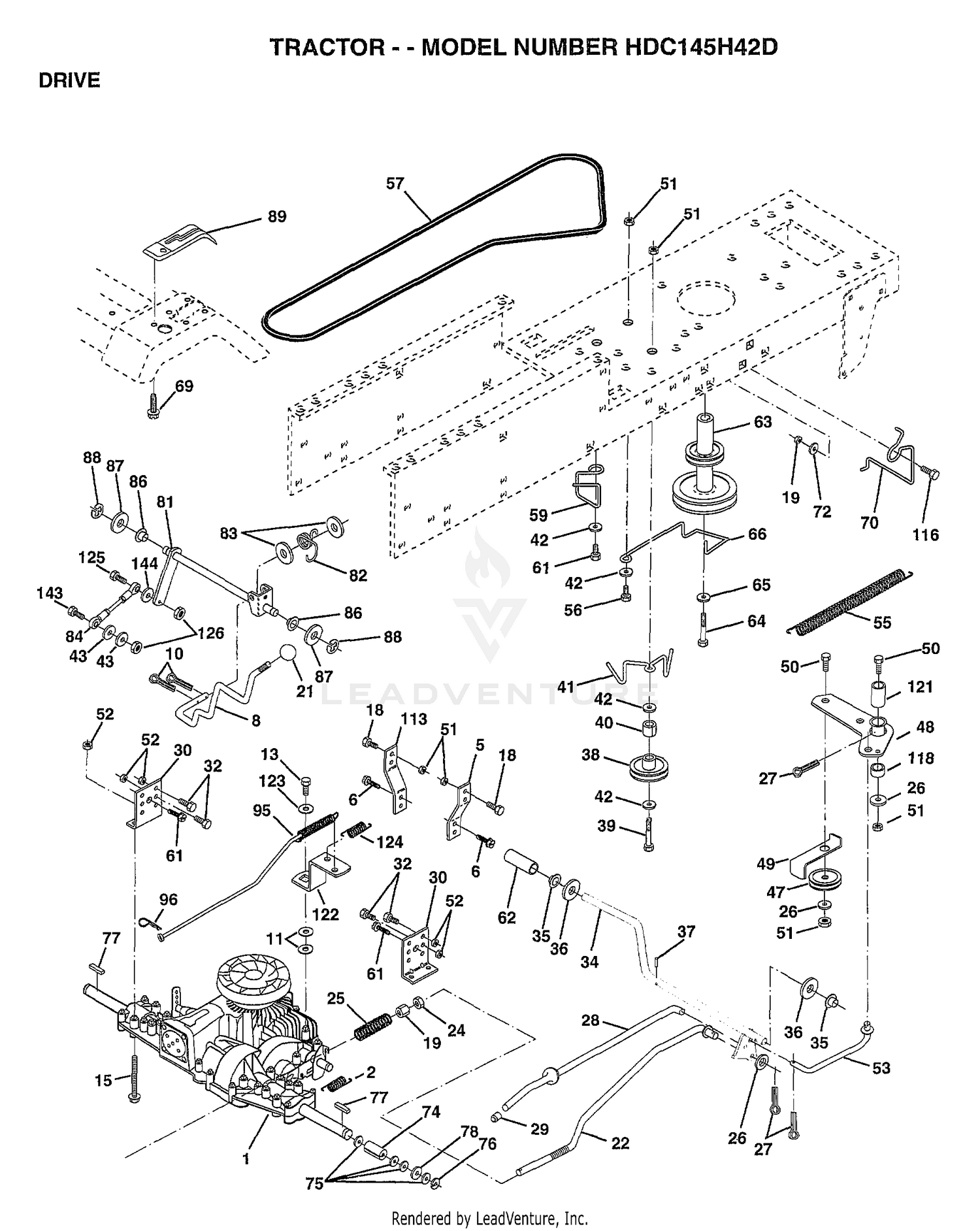

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 3 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 5 |
98-7741 |
YOKE ASM Price: $305.27 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 7 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 8 |
141003 |
ROD SHIFT FEND LT Price: Call Us |
| 8 |
99-8370 |
FRAME-END Price: $79.75 |
| 9 |
100-9240 |
BOLT This part replaces 98-9549. Price: $7.23 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 10 |
98-7758 |
BOLT ASM Price: $4.90 |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
| 12 |
99-8371 |
NUT-HEX Price: $3.75 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 13 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 14 |
99-8372 |
MAGNETIC SWITCH ASM Price: $528.24 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 15 |
98-7754 |
SPRING Price: $4.70 |
| 16 |
98-7755 |
BALL Price: $0.42 |
| 17 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 18 |
98-7756 |
BOLT Price: $2.64 |
| 19 |
73800600 |
NUT Price: Call Us |
| 19 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 20 |
98-7752 |
RETAINER Price: $4.35 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
98-7753 |
ROLLER Price: $1.00 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 22 |
98-7751 |
GEAR Price: $43.51 |
| 23 |
99-8375 |
COVER Price: $24.86 |
| 24 |
73350600 |
NUT Price: Call Us |
| 24 |
98-7757 |
O-RING Price: $24.98 |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
99-8376 |
NUT-HEX Price: $7.28 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 43 |
19111012 |
WASHER T Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 69 |
142432 |
SCREW HEXWSH H-L Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 81 |
158461 |
SHAFT ASM CROSS Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
158286 |
ROD TIE Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
151147 |
SUB= 164893 Price: Call Us |
| 95 |
156970 |
ROAD ASM BYPASS Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 100 |
19111216 |
WASHER M Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 118 |
154774 |
SPACER-BELLCRANK Price: Call Us |
| 121 |
154419 |
NYLINER-CLUTCHING Price: Call Us |
| 123 |
19081016 |
WASHER Price: Call Us |
| 124 |
156967 |
SPRING RETURN Price: Call Us |
| 125 |
74780516 |
SUB= 77394 Price: Call Us |
| 126 |
1685H |
SUB= 68478 Price: Call Us |
| 143 |
74780520 |
BOLT Price: Call Us |
