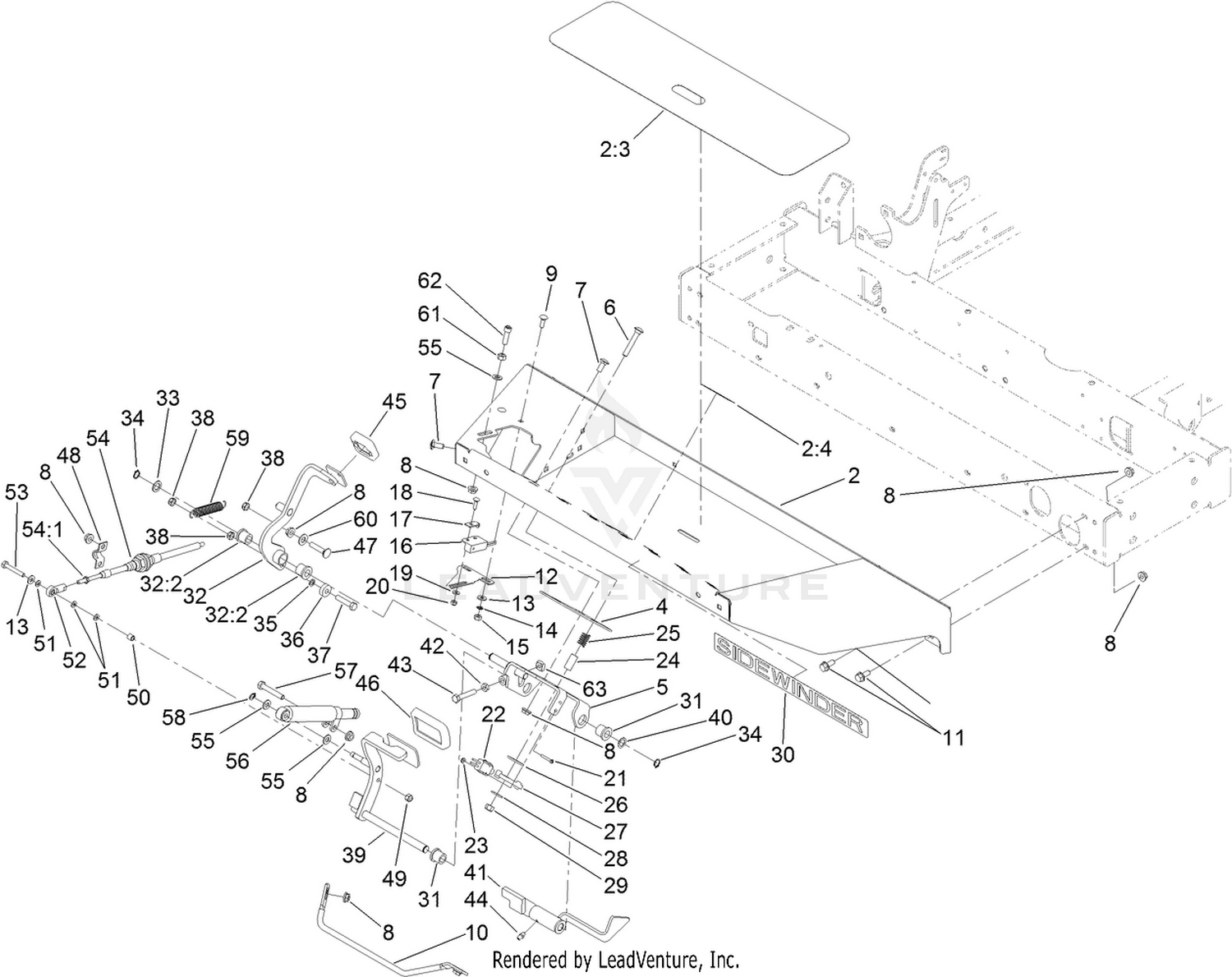

| Ref | Part Number | Description |
|---|
| 2 |
106-4154 |
FLOORPLATE ASM Price: $477.71 |
| 4 |
106-2661-0P |
PLATE-SUPPORT Price: $18.75 |
| 5 |
140-6253 |
TRACTION BRACKET ASM This part replaces 95-8869-0P. Price: $58.24 |
| 6 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 7 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 9 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 10 |
95-8893 |
BAR-DEFLECTOR Price: $29.34 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
100-4871 |
BRACKET-SWITCH, NEUTRAL Price: $17.90 |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 15 |
3217-5 |
NUT-HEX Price: $0.25 |
| 16 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 17 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 18 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 19 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 20 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 21 |
32105-9 |
SCREW Price: $0.54 |
| 22 |
95-8900 |
SWITCH Price: $95.42 |
| 23 |
3296-9 |
NUT-HEX Price: $0.25 |
| 24 |
95-8866 |
TUBE-ARM, ROCKER Price: $11.97 |
| 25 |
65-9940 |
SPRING Price: $4.01 |
| 26 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 27 |
99-3593 |
ARM-ROCKER Price: $9.29 |
| 28 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
99-3388 |
DECAL Price: $12.99 |
| 31 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 32 |
140-6251 |
REVERSE PEDAL ASM This part replaces 99-3379. Price: $100.06 |
| 33 |
41-8440 |
WASHER Price: $1.49 |
| 34 |
32151-84 |
RING-SHAFT, EXT Price: $1.89 |
| 35 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 36 |
251-259 |
BEARING-BALL Price: $13.67 |
| 37 |
322-7 |
SCREW-HH Price: $0.89 |
| 38 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 39 |
140-6263 |
TRACTION PEDAL ASM This part replaces 104-4852-03. Price: $133.16 |
| 40 |
73-0040 |
WASHER-THRUST Price: $1.29 |
| 41 |
140-6255 |
DETENT SLIDER ASM This part replaces 95-8861. Price: $161.79 |
| 42 |
3218-2 |
NUT-JAM Price: $0.25 |
| 43 |
323-4 |
SCREW-HH This part replaces 322-41. Price: $1.02 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 46 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 47 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 48 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 49 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 50 |
99-3545 |
SPACER Price: $6.45 |
| 51 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 52 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 53 |
321-10 |
SCREW-HH Price: $1.29 |
| 54 |
100-4815 |
CABLE-CONTROL, TRACTION Price: $140.70 |
| 55 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 56 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 57 |
322-10 |
SCREW-HH Price: $0.70 |
| 58 |
32151-3 |
RING-GRIP Price: $6.49 |
| 59 |
99-3476 |
SPRING-EXTENSION Price: $7.11 |
| 60 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 61 |
3217-6 |
NUT-HEX Price: $1.19 |
| 62 |
3274-22 |
SCREW-HSH Price: $0.68 |
| 63 |
99-3565 |
NUT-SQUARE Price: $0.54 |
