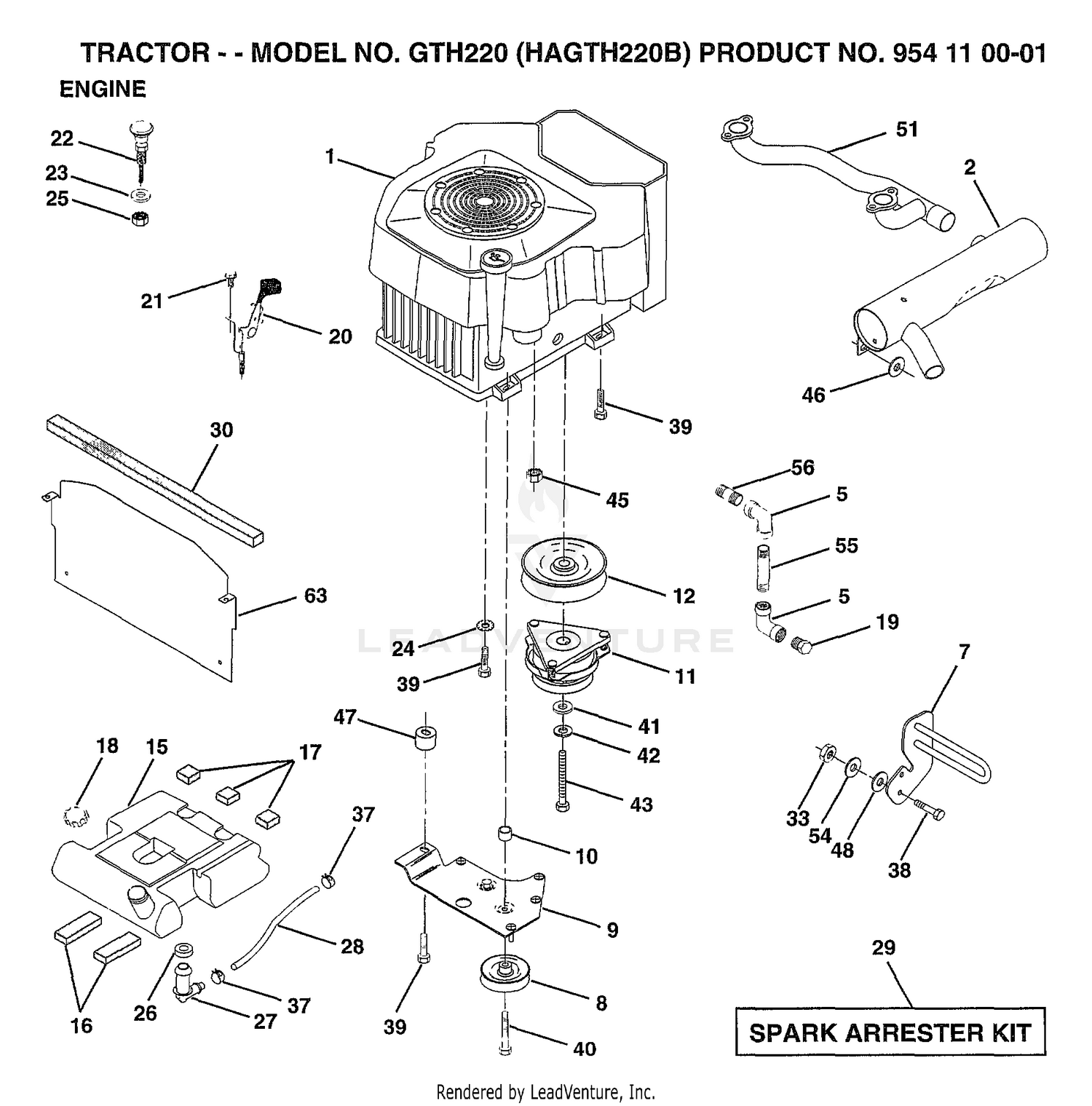

ENGINE

ENGINE

Parts (74)

RefPart NumberDescription
1 98-9339 GAUGE-FUEL Price: $115.28
1 CV22S ENGINE, KOHLER Price: Call Us
2 3258-166 SCREW-PRH Price: $0.28
2 532152947 MUFFLER VGT CYLINDER Price: Call Us
3 233-42 KNOB Price: $12.88
4 94-5626 FLEXIBLE DRAW LATCH ASM Price: $42.59
5 112-6561 WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84
5 813200300 ELBOW STD 90 DEGREE 3/8-18 NPT Price: $4.99
6 98-9308 GAUGE-TEMPERATURE Price: $112.90
7 532151396 SUB= 151396 Price: $23.99
7 93-5961 BOOT-LEVER Price: $56.35
8 32144-1 SCREW-TAPTITE Price: $3.19
8 532139123 Pulley, V-Idler This part replaces 532121361. Price: $22.99
9 105-7508 LEVER-JOYSTICK Price: $53.02
9 532177748 Keeper Asm. Belt Engine VGT This part replaces 532150828. Price: $11.99
10 104-9296 DECAL-CONTROL Price: $27.94
10 532105432 SUB= 105432X Price: $4.99
11 104-9251-03 PLATE-INSTRUMENT Price: $95.17
11 532174509 CLUTCH KIT This part replaces 532140923. Price: $399.99
12 532143996 SUB= 143996 Price: $32.99
12 99-8352 SWITCH-BACKLAP, MASTER Price: $91.81
13 106-4167 JOYSTICK BRACKET ASM Price: $202.74
14 32105-13 SCREW-HWH Price: $1.59
15 532151346 SUB= 151346 Price: $58.99
16 104-1499-03 BRACKET-BLOCK, FUSE Price: $43.35
16 532109227 SUB= 109227X Price: $2.99
17 32144-18 SCREW-HWH Price: $1.80
17 532106082 SUB= 106082X Price: $2.99
18 120-2244 HOURMETER This part replaces 75-6820. Price: $48.06
18 581075501 CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532140527. Price: $14.99
19 3296-2 NUT-LOCK, NI Price: $1.89
19 813290300 PLUG OIL DRAIN Price: $3.99
20 104-0027 BOX-CONTROL Price: $196.04
20 532132748 THROTTLE CONTROL This part replaces 532132747. Price: $20.99
21 539990072 HCS 1/4C X 5/8 This part replaces 817720410. Price: $1.99
22 532132781 SUB= 132781 Price: $19.99
22 94-6767 DECAL-FUSES Price: $11.45
23 104-9298 DECAL-CONTROLLER Price: $6.16
23 819131316 WASHER 13/32 X 13/16 X 16 GA Price: $2.99
24 104-1496 HINGE-PIN Price: $13.22
24 539990118 WASHER.3/8 This part replaces 811050600. Price: $1.49
25 104-1497 HINGE-RECEIVER Price: $13.90
25 873920600 NUT, KEPS 3/8-24 UNF Price: $3.99
26 139-5984 CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63
26 532003645 Bushing This part replaces 532124952. Price: $2.99
27 3253-3 WASHER-LOCK Price: $0.31
27 532139277 SUB= 139277 Price: $5.99
28 321-14 SCREW-HH Price: $0.55
28 532008542 Line, Fuel This part replaces 532124703. Price: $4.99
29 3256-3 WASHER-FLAT Price: $0.49
29 532132920 SUB= 132920 Price: $43.09
30 532105037 SUB= 105037X Price: $2.38
30 HY3225 DISCONTINUED This part replaces 322-5. Price: Call Us
32 106-5971 HARNESS-WIRE Price: $1,405.26
33 873680600 Nut This part replaces 873800600. Price: $1.99
33 94-6343 DECAL-IDENTIFICATION, WIRE Price: $6.86
34 3218-3 NUT-JAM Price: $0.25
37 532123487 SUB= 123487X Price: $3.99
38 874930624 Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $3.99
39 817490636 SCREW, TT 3/8-16 X 2-1/4 UNC Price: $3.99
40 817490664 SCREW, TT 3/8-16 X 4 UNC Price: $3.99
41 32128-33 NUT-HF Price: $0.25
41 532126197 SUB= 126197X Price: $4.99
42 539990247 LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99
43 532150280 SUB= 150280 Price: $3.99
44 105-7529 DECAL-DIAGNOSTIC Price: $26.76
45 532050675 NUT.HEX..25-20.UNC This part replaces 532128861. Price: $3.99
46 819131612 Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99
47 532142040 SUB= 142040 Price: $3.99
48 819132007 WASHER, 13/32 X 1-1/4 X 7 GA. Price: $3.99
51 532152946 PIPE CROSSOVER Price: Call Us
54 819131414 WASHER, FLAT 13/32 X 7/8 X 14 GA. Price: $3.99
55 813280336 NIPPLE, PIPE 4-1/2 Price: Call Us
56 813090308 NIPPLE, PIPE 3/8 NPT X 1.00 Price: $4.99
