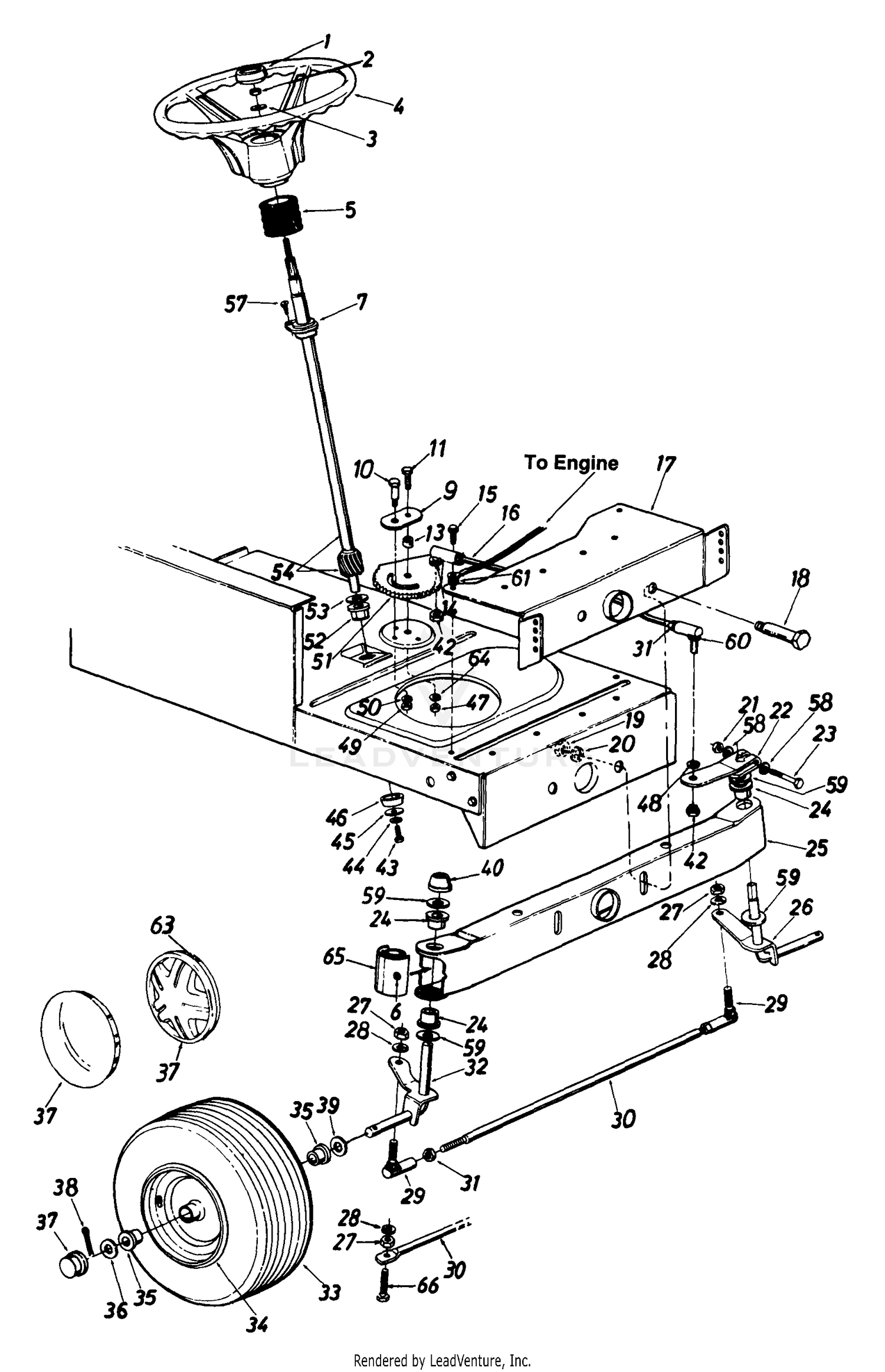

| Ref | Part Number | Description |
|---|
| 1 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 2 |
712-0237 |
Hex L-Nut 5/16-24 Thd. Price: $4.37 |
| 3 |
736-0242 |
Belleville Wash..345" I.D. Price: $3.75 |
| 4 |
731-0805 |
STEERING WHEEL Not Available Price: |
| 10 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 11 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 13 |
950-0535 |
Spacer.380" I.D. x .625" O.D. x .227 This part replaces 750-0535. Price: $3.90 |
| 15 |
710-0726 |
Hex Wash. Hd. Self-Tap Scr. Price: $3.82 |
| 16 |
711-0788 |
STEERING DRAG LINK Not Available Price: |
| 17 |
783-0041C |
PIVOT BAR BRACKET Not Available This part replaces 17621. Price: |
| 18 |
738-0527 |
Shoulder 8olt .498" Dia. x 2.04 Lg. 3/8-16 Thd. Price: $7.90 |
| 21 |
712-0237 |
Hex Cent. L-Nut 5/16-24 Thd. Price: $4.37 |
| 22 |
983-0055-0637 |
Steering Arm Front Axle This part replaces 16481A. Price: $41.85 |
| 23 |
710-0772 |
Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5) Price: $3.93 |
| 26 |
17585 |
Front Axle Ass'y.- L.H. 15" x 6" w/Plastic Bearing Price: $61.80 |
| 29 |
923-3018 |
Ball Joint, 3/8-24 This part replaces 723-3018. Price: $15.50 |
| 30 |
747-0753 |
Tie Rod (Adjustable) Price: $29.86 |
| 32 |
97584A-0637 |
AXLE ASSEMBLY (RH) This part replaces 17584. Price: $67.14 |
| 33 |
634-0056B-0911 |
Wheel Ass'y. Comp. This part replaces 634-0056. Price: $218.84 |
| 34 |
753-0838-0662 |
WHEEL RIM GREY Not Available This part replaces 634-0024. Price: |
| 35 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0487A. Price: $6.87 |
| 36 |
736-0285 |
Fl-Wash .635 I.D. x 1.59" O.D. Price: $3.89 |
| 37 |
931-0484A |
Hub Cap This part replaces 731-0484A. Price: $5.98 |
| 39 |
736-0187 |
Fl-Wash .640" I.D. x 1.24" O.D. Price: $4.02 |
| 40 |
726-0214 |
Push Cap 5/8" Dia. Rod Price: $9.11 |
| 42 |
912-0446 |
Hex Jam Nut 3/8-24 Thd. This part replaces 712-0446. Price: $5.94 |
| 45 |
736-0343 |
Fl-Wash 33" I.D. x 1.25" O.D. Price: $3.90 |
| 46 |
950-0532 |
SPACER Not Available This part replaces 750-0532. Price: |
| 47 |
712-0214 |
Hex Cent L-Nut 3/8-24 Thd. Price: $5.94 |
| 49 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 51 |
717-0622C |
Steering Gear Segment Not Available This part replaces 717-0622A. Price: |
| 52 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 53 |
736-0187 |
Fl-Wash (Hardened) Price: $4.02 |
| 54 |
738-0743A |
STEERING SHAFT 23.38 LG Not Available This part replaces 738-0743. Price: |
| 58 |
936-0271 |
SPRING WASHER .317 X .625 X .020 This part replaces 736-0271. Price: $3.93 |
| 59 |
736-0187 |
Fl-Wash (Hardened) Price: $4.02 |
| 60 |
923-3018 |
Ball Joint, 3/8-24 This part replaces 723-3018. Price: $15.50 |
| 61 |
736-0607 |
Ext L-Wash. 5/16" I.D. Price: $3.66 |
| 64 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 634 |
0060 |
Wheel Ass'y Comp. 13" x 6" w/Ball Bearing Price: Call Us 634 |
| 17585 |
Front |
Axle Ass'y.- L.H. 15" x 6" w/Ball Bearing Price: $61.80 17585 |
