Home / OPE / Lawn Tractor / 382 Gear & 383 Hydro (134-382-399/134-382-100/132-382-399/133-382-100/133-382-399/132-382-100/0350032U/0350028U/0350029U/0350033U/0350036U/0350037U/132-383-100/133-383-100/134-383-100) 0350028U 0350029U 0350032U 0350033U 0350036U 0350037U 132-382-100 132- / Transaxle-Gear Drive-S/N 70001 & Up

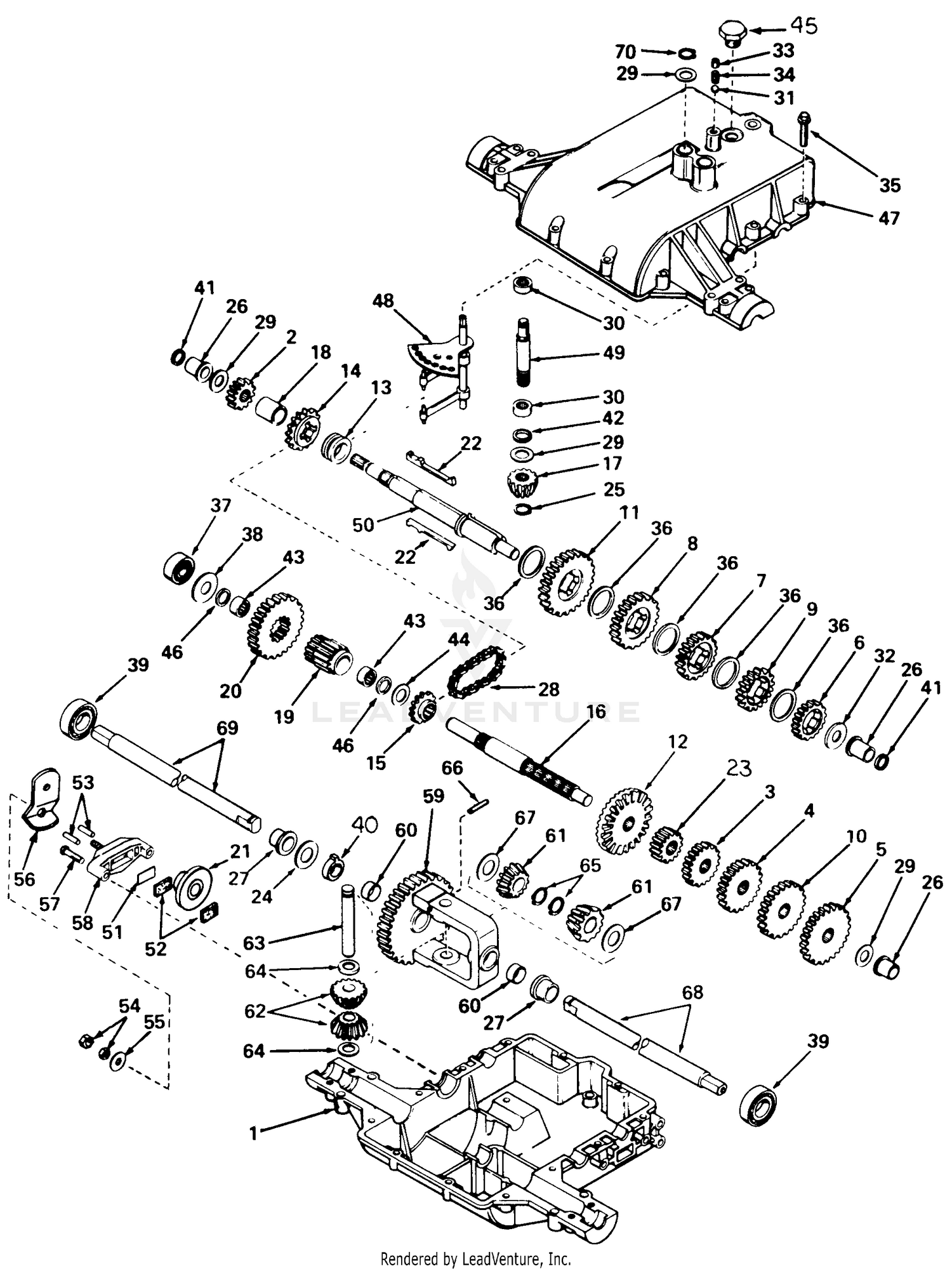

Transaxle-Gear Drive-S/N 70001 & Up

Transaxle-Gear Drive-S/N 70001 & Up

Parts (93)

RefPart NumberDescription
1 77-3440 SCREW Price: $2.84
1 TC-770071A CASE-TRANS Not Available Price:
2 77-3450 WASHER Price: $5.63
2 TC-778136 SPUR GEAR (FIRST) Not Available Price:
3 77-3420 GASKET Price: $48.90
3 TC-778126A SPUR GEAR (20 TEET Not Available Price:
4 77-3410 KEY Price: $1.91
4 TC-778127A SPUR GEAR (25 TEET Not Available Price:
5 77-3400 DISCONTINUED Price: Call Us
5 TC-778129A SPUR GEAR Not Available Price:
6 94-3163 DISCONTINUED Price: Call Us
6 TC-778121A SPUR GEAR-20T Not Available Price:
7 94-3166 WASHER-PLATE Price: $2.69
7 TC-778123A SPUR GEAR (25 TEET Not Available Price:
8 TC-778124A SPUR GEAR (30 TEET Not Available Price:
9 94-3162 STUD Price: $30.04
9 TC-778122A SPUR GEAR (22 TEET Not Available Price:
10 94-3164 WASHER-SPRING Price: $1.20
10 TC-778128A SPUR GEAR (28 TEET Not Available Price:
11 94-3159 TENSIONER Price: $141.40
11 TC-778207A SPUR GEAR 37T Not Available This part replaces TC-778146A. Price:
12 94-3165 NUT-HEX Price: $2.34
12 TC-778137A SPUR GEAR-42T Not Available Price:
13 77-3520 CUP Price: $14.17
13 TC-784266 COLLAR-SHIFT Not Available Price:
14 77-3510 SPRING Price: $11.34
14 TC-786083 SPROCKET (18 TEET Not Available Price:
15 94-3160 ROLLER Price: $159.20
15 TC-786082 SPROCKET (9 TEET Not Available Price:
16 94-3161 DISCONTINUED Price: Call Us
16 TC-776204 SHAFT Not Available Price:
17 94-3170 SCREW Price: $32.46
17 TC-778113A BEVEL GEAR-INPUT Not Available Price:
18 74-8830 BELT-TIMING Price: $104.36
18 TC-786074 SPACER Not Available Price:
19 94-3172 WASHER Price: $0.43
19 TC-778138 GEAR-OUTPU Not Available Price:
20 94-3171 SCREW-HH Price: $3.39
20 TC-778139 GEAR-OUTPU Not Available Price:
21 94-3168 DISCONTINUED Price: Call Us
21 TC-790003 BRAKE-DISC Not Available Price:
22 94-3173 CAPSCREW Price: $3.29
22 TC-792089B KEY Not Available This part replaces TC-792089A. Price:
23 76-5010 WASHER-SPRING Price: $0.33
23 TC-778145 GEAR Not Available Price:
24 99-2570 DISCONTINUED This part replaces 94-3167. Price: Call Us
25 94-3169 DISCONTINUED Price: Call Us
25 TC-788040 E-RINGXT RET .521 Not Available Price:
26 98-8176 TIMING GEAR W/KEY This part replaces 92-7787. Price: $241.51
26 TC-780105A FLANGED BUSHING Not Available Price:
27 TC-780118A BUSHING Not Available Price:
29 TC-780072 THRUST WASHER Not Available Price:
30 941-0478 NEEDLE BEARING Not Available This part replaces IH-106640-C91. Price:
31 TC-792077A BALL-5/16 GRADE 20 Not Available This part replaces TC-792077. Price:
32 TC-780109 THRUST WASHER Not Available Price:
33 TC-792078 SCREW Not Available Price:
34 TC-792079 SPRING Not Available Price:
35 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
36 TC-780108 Washer, Thrust Not Available Price:
37 TC-780121 BEARING Not Available Price:
38 TC-780113 WASHER Not Available Price:
39 HG-44121P BEARING BALL Not Available This part replaces TC-780119. Price:
40 TC-780120 BUSHING Not Available Price:
41 TC-788051A SEAL Not Available This part replaces TC-788051. Price:
42 TC-788057 O-RING Not Available Price:
43 TC-780112 BEARING Not Available This part replaces IH-80289-C91. Price:
44 TC-780114 FLAT WASHER Not Available Price:
45 TC-792074 PLUG Not Available Price:
46 TC-788053 SEAL Not Available Price:
47 TC-772082 COVER, TRANSAXLE Not Available Price:
48 TC-784290 ROD&FORD-S Not Available Price:
49 TC-776140 INPUT SHAFT Not Available Price:
50 TC-776183A SHAFT Not Available Price:
51 TC-790007 PLATE-BRAKE PAD Not Available Price:
52 TC-799021 BRAKE PAD KIT (1 PKG = 2 PADS ) This part replaces TC-790006. Price: $11.03
53 TC-786026 DOWEL PIN Not Available Price:
54 712-0237 Nut, 5/16-NF Cad P/T Lock Type 5 Price: $4.37
55 736-3078 Washer, .344 X 1.000 X .098 Phc Hdn Price: $3.95
56 TC-790028 BRAKE LEVER Not Available Price:
57 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
58 TC-790025 HOLDER-BRAKE PAD Not Available This part replaces TC-790005. Price:
60 TC-780064 BUSHING Not Available Price:
61 TC-778067 GEAR, BEVEL Not Available Price:
62 TC-778068 BEVEL GEAR Not Available Price:
63 TC-786034 PIN-DRIVE Not Available Price:
64 TC-780065 WASHER Not Available Price:
65 716-3001 Ring, .689 Hvy Ext Ret Price: $3.96
66 TC-792040 ROLL PIN Not Available Price:
68 TC-774436 AXLE Not Available Price:
69 TC-774435 AXLE Not Available Price:
