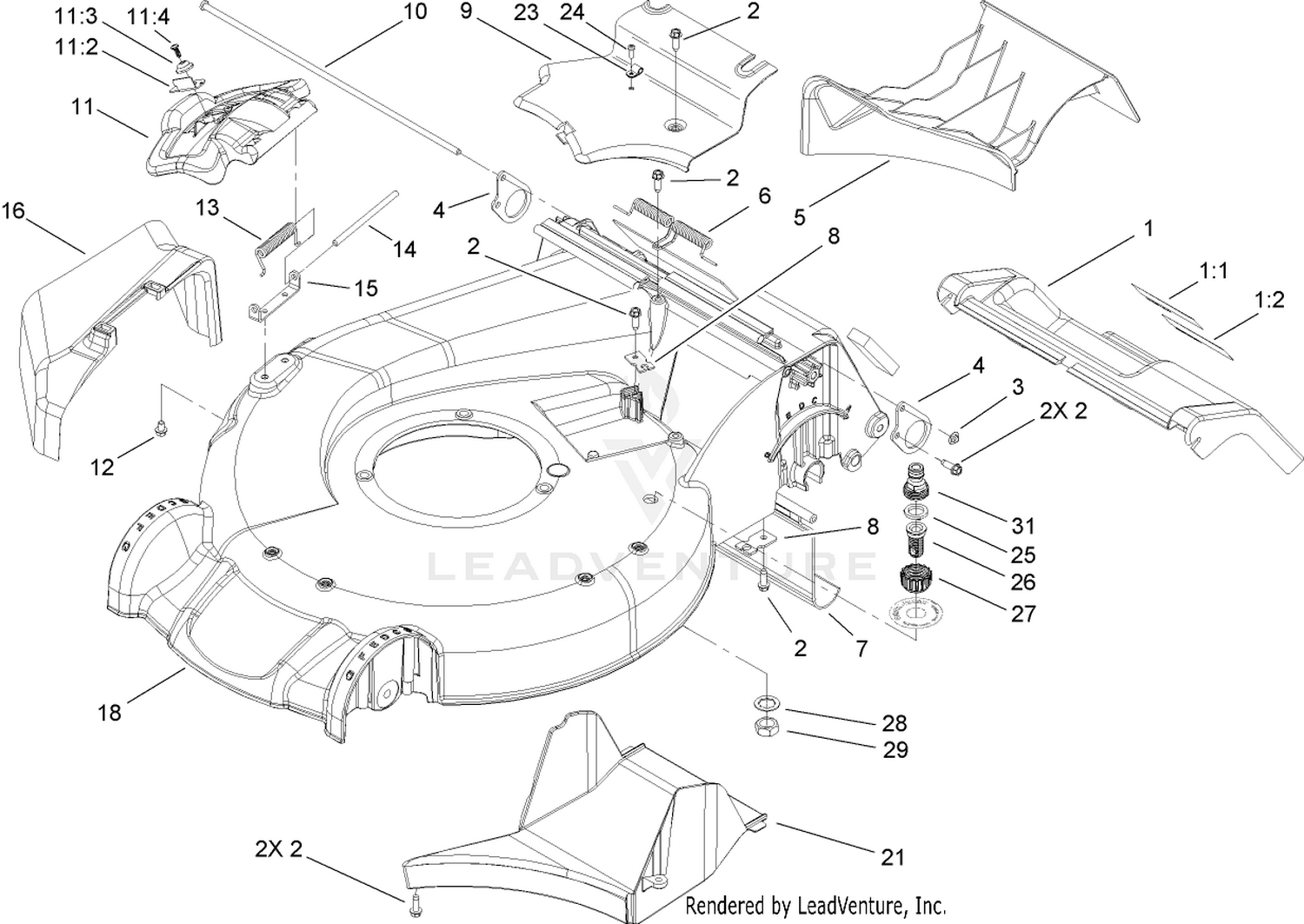

| Ref | Part Number | Description |
|---|
| 1 |
108-8170 |
DOOR-SERVICE Price: $54.64 |
| 2 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 3 |
3290-337 |
NUT-SPEED Price: $1.41 |
| 4 |
107-7493 |
PLATE-SUPPORT, DOOR Price: $3.63 |
| 5 |
107-7490 |
MULCH PLUG ASM Price: $14.03 |
| 6 |
105-3032 |
SPRING-DOOR, REAR Price: $12.43 |
| 7 |
120-7011 |
SHIELD-TRAILING This part replaces 114-1586. Price: $23.28 |
| 8 |
138-3224 |
BRACKET-CABLE, TRACTION This part replaces 107-7497. Price: $1.46 |
| 9 |
107-7494 |
COVER-BELT Price: $14.03 |
| 10 |
107-7499 |
ROD-SUPPORT, DOOR Price: $14.03 |
| 11 |
107-3717 |
DISCHARGE DOOR ASM Price: $16.38 |
| 12 |
137-4795 |
SCREW This part replaces 99-8445. Price: $0.29 |
| 13 |
99-5293 |
SPRING-TORSION Price: $9.99 |
| 14 |
136-8672 |
PIN-HINGE, DEFLECTOR This part replaces 99-5291. Price: $1.99 |
| 15 |
112-6416 |
BRACKET-COVER Price: $1.88 |
| 16 |
108-3753 |
CHUTE-DISCHARGE, SIDE Price: $16.08 |
| 18 |
112-8863 |
HOUSING ASM Price: $151.45 |
| 21 |
107-7495 |
TUNNEL-DISCHARGE Price: $16.78 |
| 23 |
98-2256 |
CLAMP Price: $3.48 |
| 24 |
32144-32 |
SCREW Price: $2.29 |
| 25 |
112-6438 |
WASHER-SEAL, WASHOUT PORT Price: $1.19 |
| 26 |
112-6400 |
PORT-WASHOUT Price: $3.06 |
| 27 |
112-6401 |
COUPLING-HOSE, WASHOUT PORT Price: $1.61 |
| 28 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 29 |
3218-6 |
NUT-JAM Price: $0.61 |
