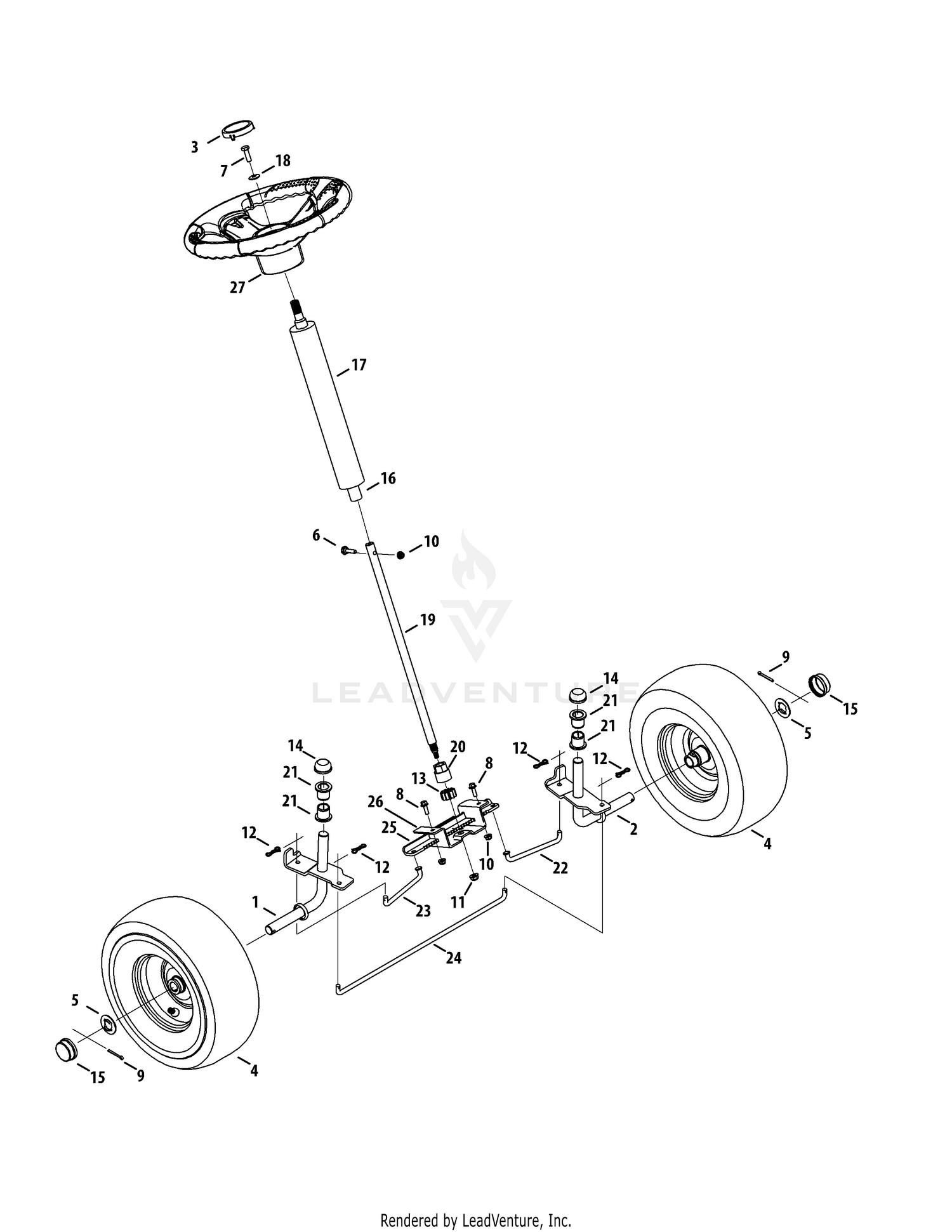

| Ref | Part Number | Description |
|---|
| 1 |
683-04726-0637 |
Front Axle Assembly, RH Price: $31.66 |
| 2 |
683-04727-0637 |
Front Axle Assembly, LH Price: $31.66 |
| 3 |
731-04681 |
Cap, Troy-Bilt Price: $12.40 |
| 4 |
634-04732 |
WHEEL ASSEMBLY (13 x 5 x 6) This part replaces 634-04726-0911. Price: $127.49 |
| 5 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 6 |
738-05000 |
SHOULDER SCREW .375 x .148 Price: $3.70 |
| 7 |
710-0643 |
Hex Head Screw, 5/16-18:1.00 Price: $5.99 |
| 8 |
710-0703 |
Carriage Screw, 1/4-20, .75 Price: $3.66 |
| 9 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 10 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 11 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 12 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 13 |
717-1554 |
Steering Pinion Gear Price: $9.44 |
| 14 |
726-0341 |
Push Cap, 3/4 Price: $4.26 |
| 15 |
931-0484A |
Hub Cap Price: $5.98 |
| 16 |
983-04763-0637 |
Tube Assembly, Non-Telescoping Price: $35.26 |
| 17 |
723-04095B |
STEERING SLEEVE This part replaces 723-04095A. Price: $26.08 |
| 18 |
736-0242 |
Bevel Washer, .340X.872X.060 Price: $3.75 |
| 19 |
738-04537B |
STEERING SHAFT This part replaces 738-04537A. Price: $30.51 |
| 20 |
741-04542A |
Hex Flange Bearing, 5/8 Price: $4.19 |
| 21 |
741-0660A |
Flange Bearing, .760 X .941 X 1.0 Price: $2.92 |
| 22 |
747-05514 |
Steering Rod, LH Price: $13.05 |
| 23 |
747-05585 |
Steering Rod, RH Price: $13.05 |
| 24 |
747-06027 |
Front Tie Rod Price: $13.05 |
| 25 |
753-11064D |
SERVICE KIT (CR12 STREERING) This part replaces 783-06988A. Price: $63.70 |
| 26 |
753-11064D |
SERVICE KIT (CR12 STREERING) This part replaces 783-07239A. Price: $63.70 |
