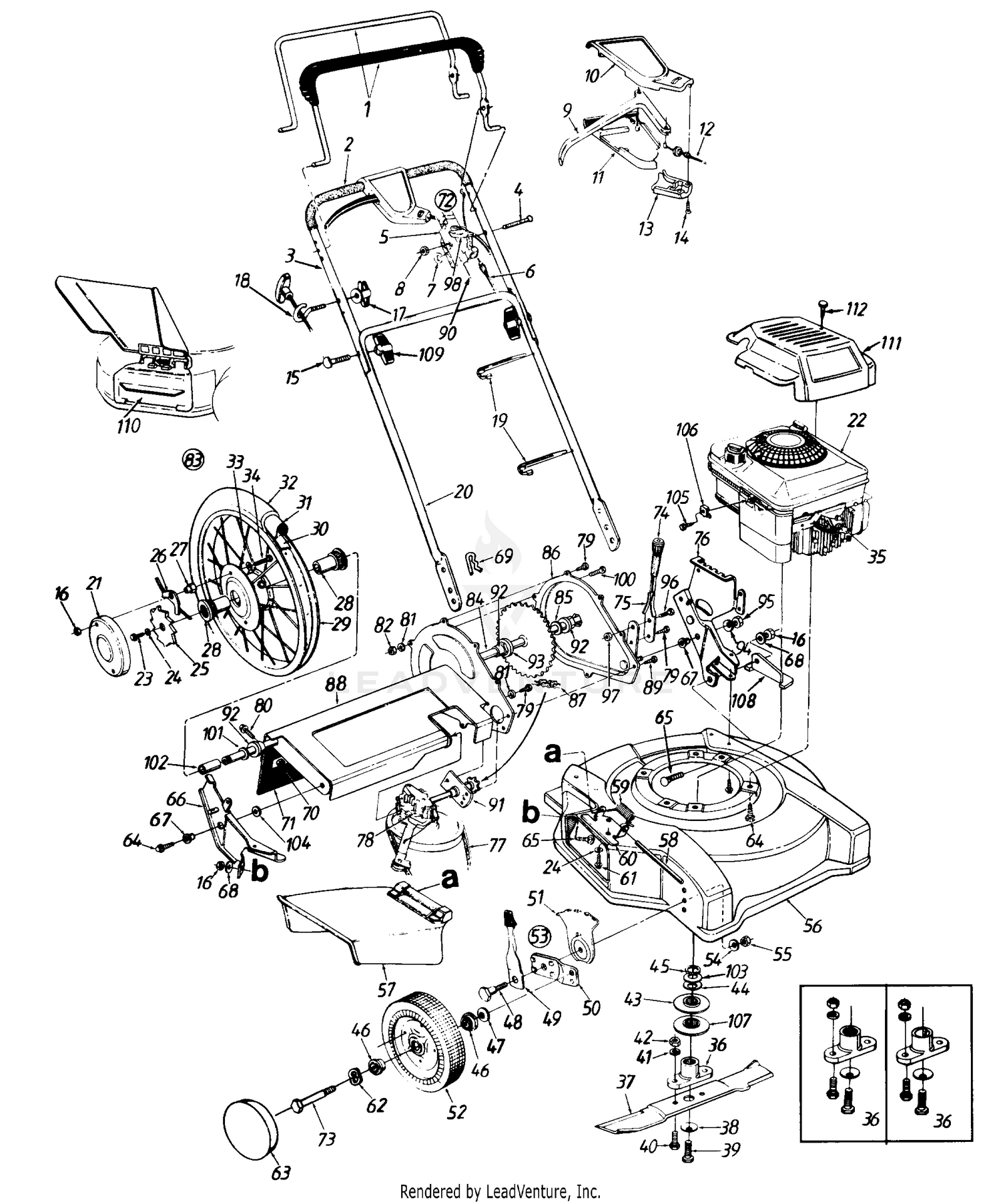

| Ref | Part Number | Description |
|---|
| 3 |
749-0539C-0637 |
UPPER HANDLE Not Available This part replaces 749-0539B. Price: |
| 4 |
710-0605 |
Oval C-Sunk Scr. Price: $3.85 |
| 6 |
946-0550 |
Control Cable 39" This part replaces 746-0550. Price: $20.12 |
| 7 |
936-0501 |
Curved Spring Wash. .66" I.D. This part replaces 736-0501. Price: $5.99 |
| 8 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 9 |
731-0620A |
Drive Control This part replaces 731-0620. Price: $13.59 |
| 10 |
753-0833 |
Control Cover Half-Lower This part replaces 731-1057. Price: $47.34 |
| 11 |
753-0833 |
Control Cover Half-Lower This part replaces 731-1058. Price: $47.34 |
| 12 |
946-0710A |
S.P. Cable This part replaces 746-0710A. Price: $35.59 |
| 13 |
753-0833 |
Control Cover Half-Lower This part replaces 731-1059. Price: $47.34 |
| 14 |
710-0841 |
FL-"C" Sunk Hd. Tap Scr. #10 x .75" Lg. Price: $3.95 |
| 15 |
710-1174 |
Curved hd. Bolt 5/16-18 x 2" Lg. Price: $6.28 |
| 18 |
710-1205 |
Rope Guide Price: $3.53 |
| 19 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 20 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 21 |
14967 |
COVER-WHEE Not Available Price: |
| 22 |
N/A |
Engine |
| 23 |
710-0812 |
SCREW 1/4-20X.75 GR5 Not Available Price: |
| 24 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 25 |
748-0312 |
WHEEL RACHET Not Available Price: |
| 26 |
748-0315 |
PAWL Not Available Price: |
| 27 |
712-0329 |
HEX NUT Not Available Price: |
| 28 |
741-0485 |
FLANGE BEARING Not Available Price: |
| 29 |
734-1399 |
WHEEL RIM 16.0 x 2 Not Available Price: |
| 30 |
734-1400 |
RIM STRIP Not Available Price: |
| 31 |
734-1397 |
TUBE-16 x 2.12 Not Available Price: |
| 32 |
734-1396 |
CHEVRON TIRE 16 x 2.125 Not Available Price: |
| 33 |
936-0104 |
Washer, Lock, 5/16 This part replaces 736-0104. Price: $4.20 |
| 34 |
710-0376 |
Hex Bolt 5/16-18 x 1.0" (Gr. 5) Price: $3.66 |
| 40 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 45 |
748-0332 |
SPACER-CRANKSHAFT Not Available Price: |
| 47 |
736-0105 |
Bell-Wash. .38" I.D. Price: $3.96 |
| 48 |
738-0507B |
Shld. Bolt .5" Price: $3.86 |
| 49 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 50 |
15262B |
Pivot Bar Price: $13.59 |
| 51 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 53 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 54 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 57 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034. Price: |
| 58 |
747-0710A |
Hinge Pin This part replaces 747-0710. Price: $3.86 |
| 59 |
932-0593 |
Torsion Spring This part replaces 732-0593. Price: $4.24 |
| 60 |
17032A |
PLATE-ADAPTER Not Available This part replaces 17032. Price: |
| 61 |
710-0599 |
Hex TT-Tap Scr. 1/4-20 x .5" Price: $3.86 |
| 64 |
710-0654A |
Hex TT-Tap Scr. 3/8-16 x 1" Price: $3.75 |
| 65 |
710-0260A |
Carriage Bolt 5/16-18 x.62 This part replaces 710-0260. Price: $3.71 |
| 66 |
16136B |
BRACKET ASSEMBLY (RH) Not Available Price: |
| 67 |
750-0624 |
SHOULDER SPACER Not Available Price: |
| 68 |
736-0242 |
Bell-Wash. 5/16" I.D. Price: $3.75 |
| 69 |
714-0104 |
Intern. Cotter Pin 5/16" Dia. Price: $3.90 |
| 70 |
16563A |
STRIP ASSEMBLY RETAINING Not Available Price: |
| 71 |
731-1172 |
FLAP-RR Not Available Price: |
| 73 |
738-0102 |
Front Axle Bolt Price: $9.22 |
| 74 |
720-0223 |
Grip Price: $12.89 |
| 75 |
732-0655 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 76 |
682-3004 |
BRACKET (LH) Not Available Price: |
| 77 |
954-0369 |
BELT 3/8 x 32.2" This part replaces 754-0369. Price: $26.71 |
| 79 |
710-0352 |
Hex B-Tap Scr. 1/4 x .38" Lg. Price: $4.05 |
| 80 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776A. Price: $3.86 |
| 83 |
734-1398 |
WHEEL ASSEMBLY W/TIRE Not Available Price: |
| 84 |
713-0425 |
AXLE ASSEMBLY Not Available Price: |
| 85 |
936-0256 |
Fl-Wash. This part replaces 736-0256. Price: $6.24 |
| 86 |
682-7501 |
CHAINCASE AND ARM ASS'Y. Not Available Price: |
| 88 |
682-7500 |
SUPPORT ASSEMBLY-DRIVE Not Available Price: |
| 89 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 90 |
946-0671A |
Throttle Wire 55" Lg. This part replaces 746-0843. Price: $13.09 |
| 91 |
16500A-0637 |
CUP BEARING HEX Not Available This part replaces 16500A. Price: |
| 92 |
741-0413 |
Hex Flange Brg. .631" I.D. Price: $8.46 |
| 93 |
748-0313 |
SPACER-.630 x 1.25 Not Available Price: |
| 94 |
736-0300 |
FL-Wash. .385" I.D. x 87" O.D. Price: $3.93 |
| 95 |
912-0296 |
HEX LOCK NUT 3/8-2 Not Available This part replaces 712-0296. Price: |
| 96 |
710-0201 |
HEX SCREW 3/8-16 x .625 GR5 Not Available Price: |
| 97 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 98 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
| 100 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 101 |
736-0302 |
FLAT WASHER .632 ID x .935 ODX.048 Not Available Price: |
| 102 |
750-0547 |
Spacer .628" I.D. x .875" Price: $4.83 |
| 104 |
736-0258 |
FL-Wash. .38" I.D. x 1. O.D. Price: $3.93 |
| 107 |
756-0961 |
HALF PULLEY-LOWER Not Available Price: |
| 108 |
784-9014 |
Deck Bracket Price: Call Us |
| 109 |
920-0276 |
Hand Knob This part replaces 720-0276. Price: $3.23 |
