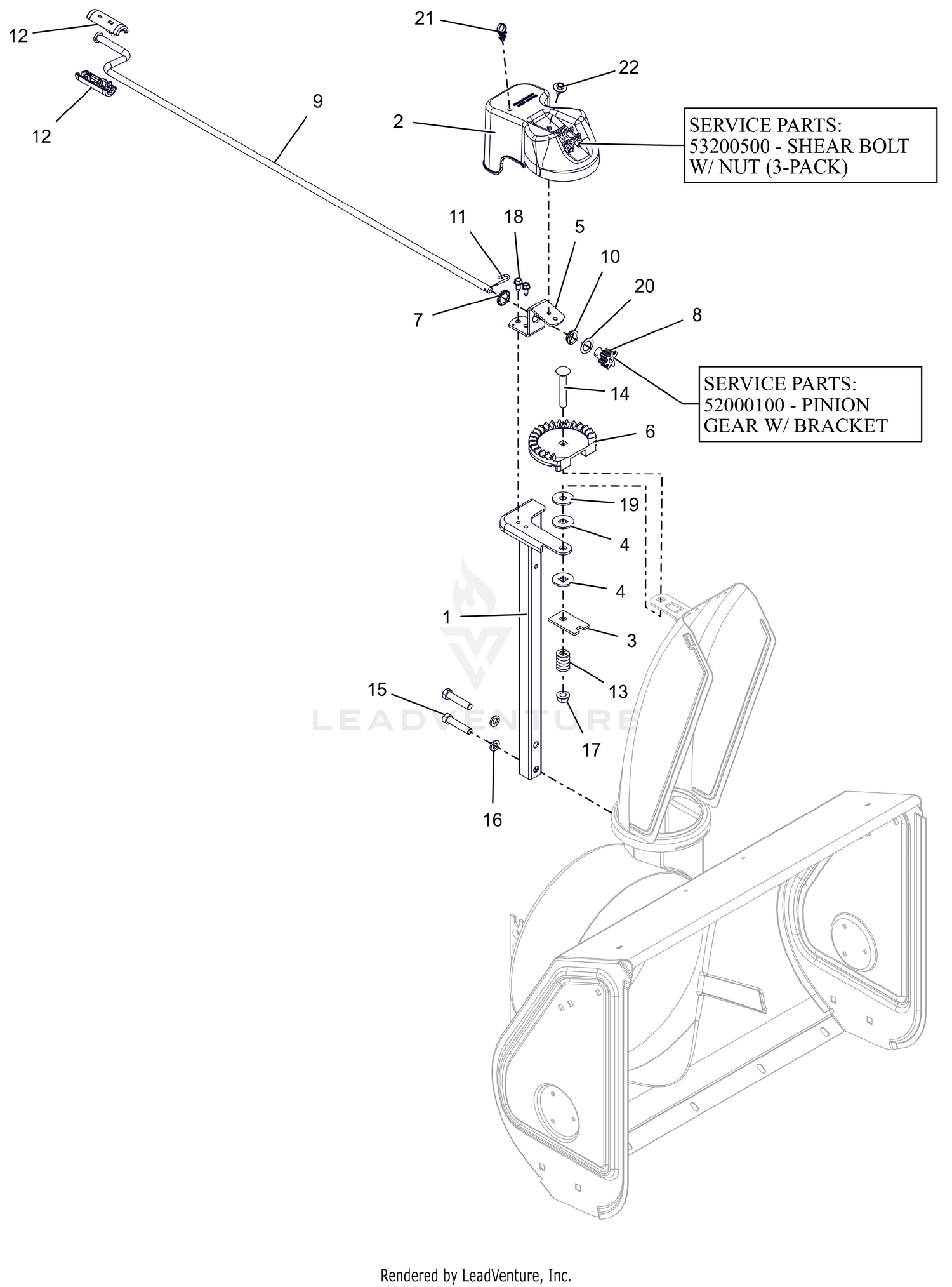

| Ref | Part Number | Description |
|---|
| 1 |
03883751 |
CHUTE PEDESTAL, TALL COMPACT Price: $36.95 |
| 2 |
04456700 |
GEAR COVER ASSY SM SHEAR BOLT Price: Call Us |
| 3 |
00398000 |
PLATE, FRICTION Price: $6.95 |
| 4 |
01123800 |
FRICTION WASHER Price: $3.95 |
| 5 |
01972400 |
BRACKET, PINION GEAR This part replaces 01972451. Price: $3.45 |
| 6 |
03222900 |
CHUTE GEAR Price: $10.45 |
| 7 |
03224300 |
PUSHNUT .625 Price: $1.95 |
| 8 |
09739601 |
PINION, GEAR CHUTE This part replaces 03735300. Price: $10.45 |
| 9 |
04338000 |
ROD, CHUTE CRANK, COMP&SNOTEK Price: $47.95 |
| 10 |
05500021 |
BUSHING, POLYLINER-.63 SNAPIN Price: $2.45 |
| 11 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 12 |
07500330 |
KNOB,CRANK-SNAP COMPACT-GRAY Price: $3.45 |
| 13 |
08320900 |
SG-COMP .187X.56X1.62 Price: $4.45 |
| 14 |
06200234 |
BLT,RHSN .38-16X2.50 G5 ZCC Price: $3.95 |
| 15 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC Price: $1.45 |
| 16 |
06300116 |
WSHR,LK-REG .375X.094 ZCC Price: $0.95 |
| 17 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 Price: $0.95 |
| 18 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 19 |
06401021 |
WSHR FL STL .406X1.25X.10ZC120 Price: $0.95 |
| 20 |
06400009 |
WSHR-THRST .625 X 1.0 X .03 Price: $1.95 |
| 21 |
04451600 |
CLIP, CABLE GUIDE Price: $1.95 |
