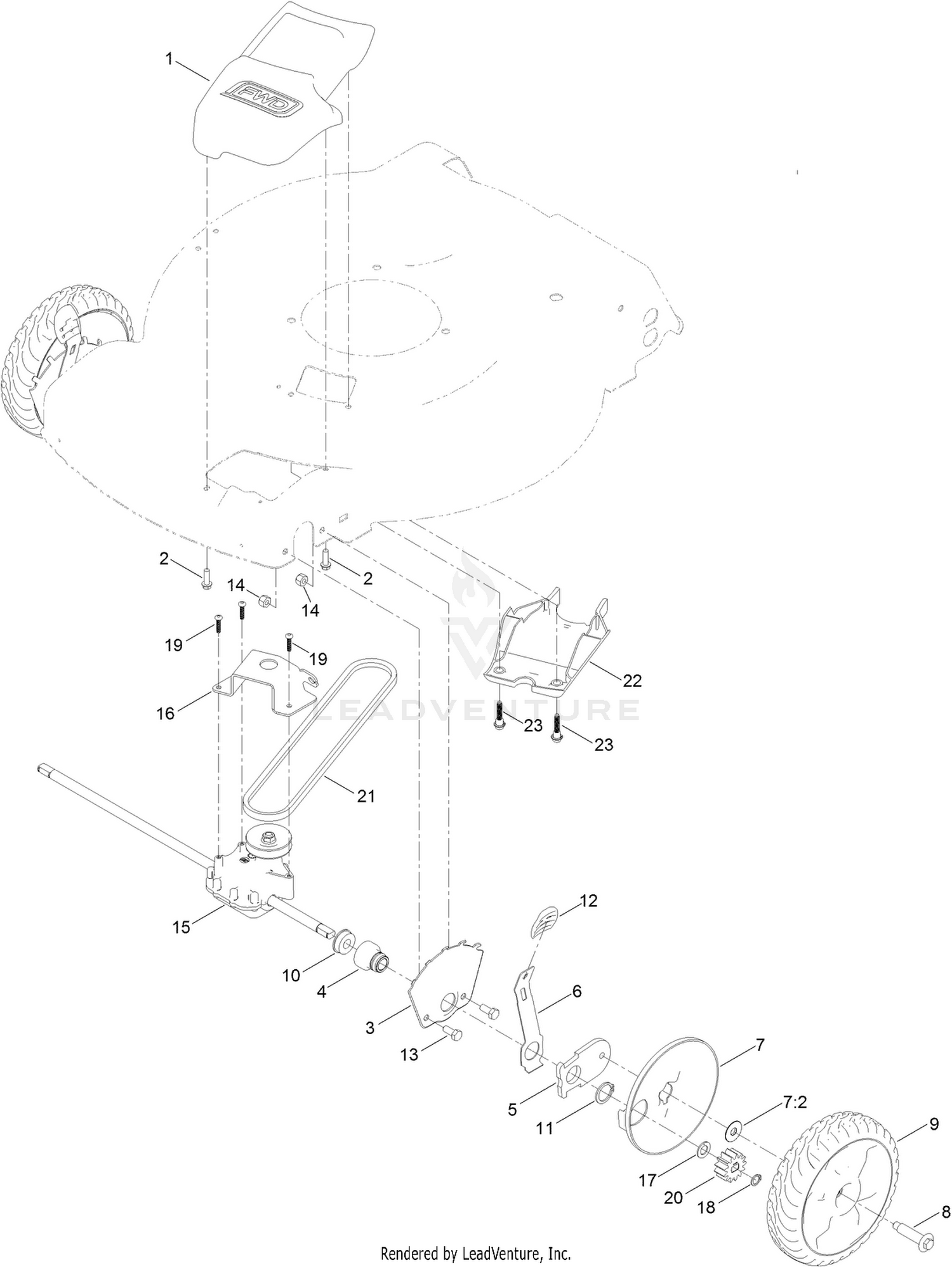

| Ref | Part Number | Description |
|---|
| 1 |
136-5907 |
COVER-BELT Price: $9.99 |
| 2 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 3 |
115-1956-03 |
PLATE-HOC, FRONT Price: $9.99 |
| 4 |
131-0836 |
RETAINER-BEARING, HOC Price: $13.99 |
| 5 |
137-9128 |
ARM-PIVOT, FRONT Price: $6.79 |
| 6 |
105-1809 |
ARM-SPRING Price: $10.99 |
| 7 |
127-6840 |
WHEEL COVER ASM Price: $5.39 |
| 8 |
614650 |
BOLT-SHOULDER Price: $3.99 |
| 10 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 11 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 12 |
105-3042 |
KNOB-LEVER, HOC Price: $4.09 |
| 13 |
322-3 |
SCREW-HH Price: $0.79 |
| 14 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
137-4822 |
TRANSMISSION Price: $105.99 |
| 16 |
114-7978-03 |
BRACKET-TRANSMISSION Price: $10.99 |
| 17 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 18 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 19 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 20 |
131-0896 |
GEAR-PINION, 13T Price: $6.49 |
| 21 |
117-1018 |
V-BELT Price: $16.99 |
| 22 |
136-5851 |
COVER-BELT, FRONT (LOWER) Price: $5.69 |
