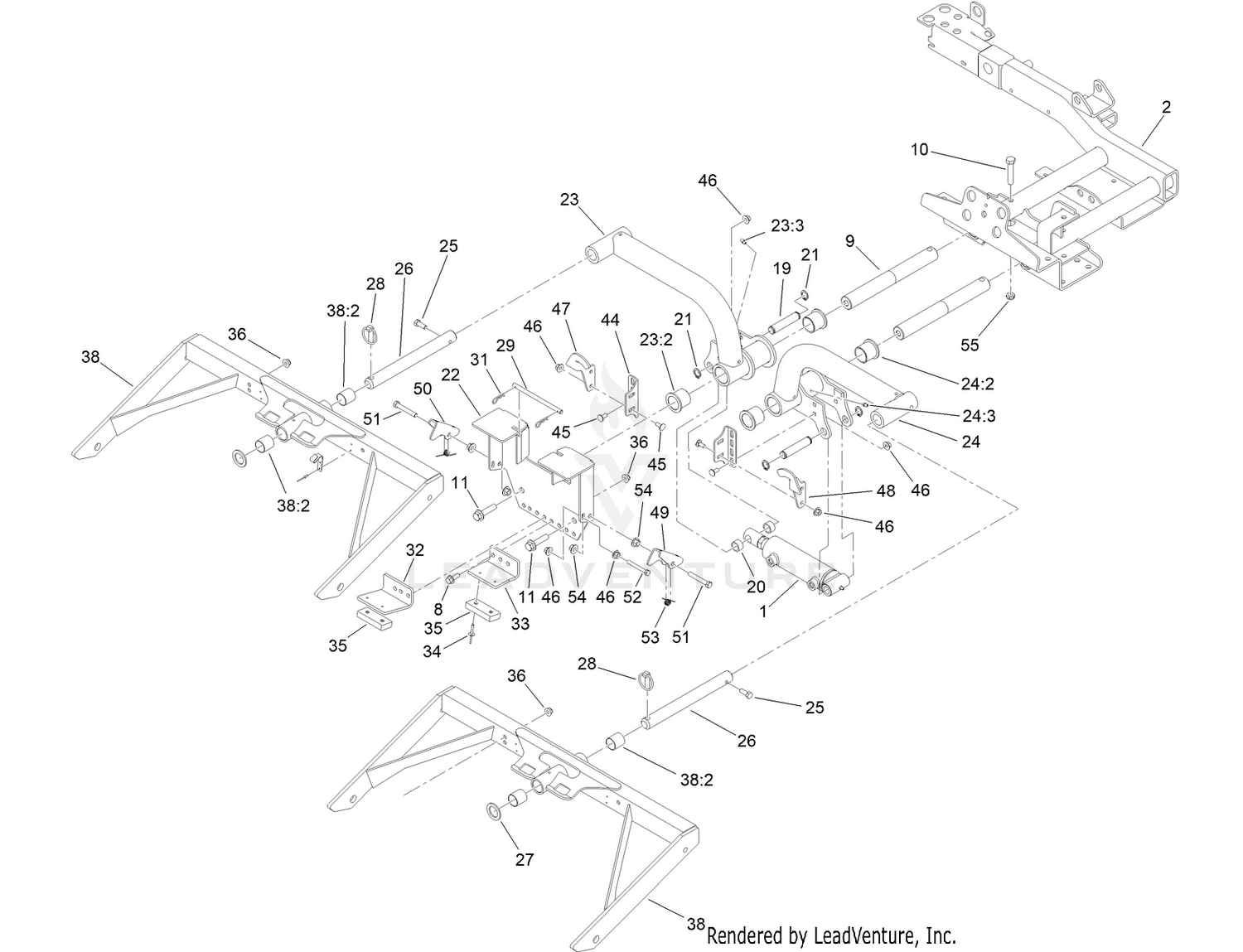

Front Lift Arm and Carrier Frame Assembly

Ref	Part Number	Description
1	112-9916	HYD CYLINDER ASM Price: $752.66
2	100-4939-03	CARRIER-SIDEWINDER Price: $1,133.42
8	3234-11	SCREW-HHF Price: $1.23
9	95-8531	SHAFT-PIVOT, LIFTARM Price: $139.66
10	325-10	SCREW-HH Price: $1.82
11	3234-27	SCREW-HHF Price: $5.97
19	95-8575	PIN-CLEVIS Price: $15.31
20	75-9590	SPACER-CYLINDER Price: $6.55
21	32120-93	RING-RETAINING Price: $2.49
22	104-4820-03	BRACKET-STOP, CARRIER Price: $200.26
23	136-3423	RH LIFTARM ASM Price: $260.70
24	136-3421	LH LIFTARM ASM Price: $260.70
25	323-6	SCREW-HH Price: $0.66
26	105-7560	SHAFT-CU PIVOT Price: $73.74
27	3-6781	WASHER-THRUST Price: $1.40
28	283-71	PIN-LYNCH Price: $2.73
29	104-0472	ROD Price: $44.63
31	3290-467	PIN-HAIR Price: $0.27
32	110-8793-03	STOP-DECK, RH Price: $37.69
33	110-8794-03	STOP-DECK, LH Price: $37.69
34	3269-11	RIVET-POP Price: $0.68
35	86-5350	BUMPER-RUBBER Price: $46.29
36	104-8301	NUT-HF, NI Price: $1.09
38	110-8787	FRONT CARRIER FRAME ASM Price: $525.65
44	104-4828-03	BRACKET-ACTUATOR Price: $21.55
45	3230-23	SCREW-CARR Price: $0.89
46	32128-44	NUT Price: $2.69
47	104-4826-03	ACTUATOR-RH Price: $30.11
48	104-4827-03	ACTUATOR-LH Price: $28.51
49	104-4819-03	BRACKET-PIVOT, LH Price: $37.66
50	104-4825-03	BRACKET-PIVOT, RH Price: $37.66
51	323-12	SCREW-HH Price: $1.14
52	32136-4	NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56
53	104-4821	SPRING-TORSION Price: $6.26
54	32128-43	NUT-FLANGE Price: $0.94
