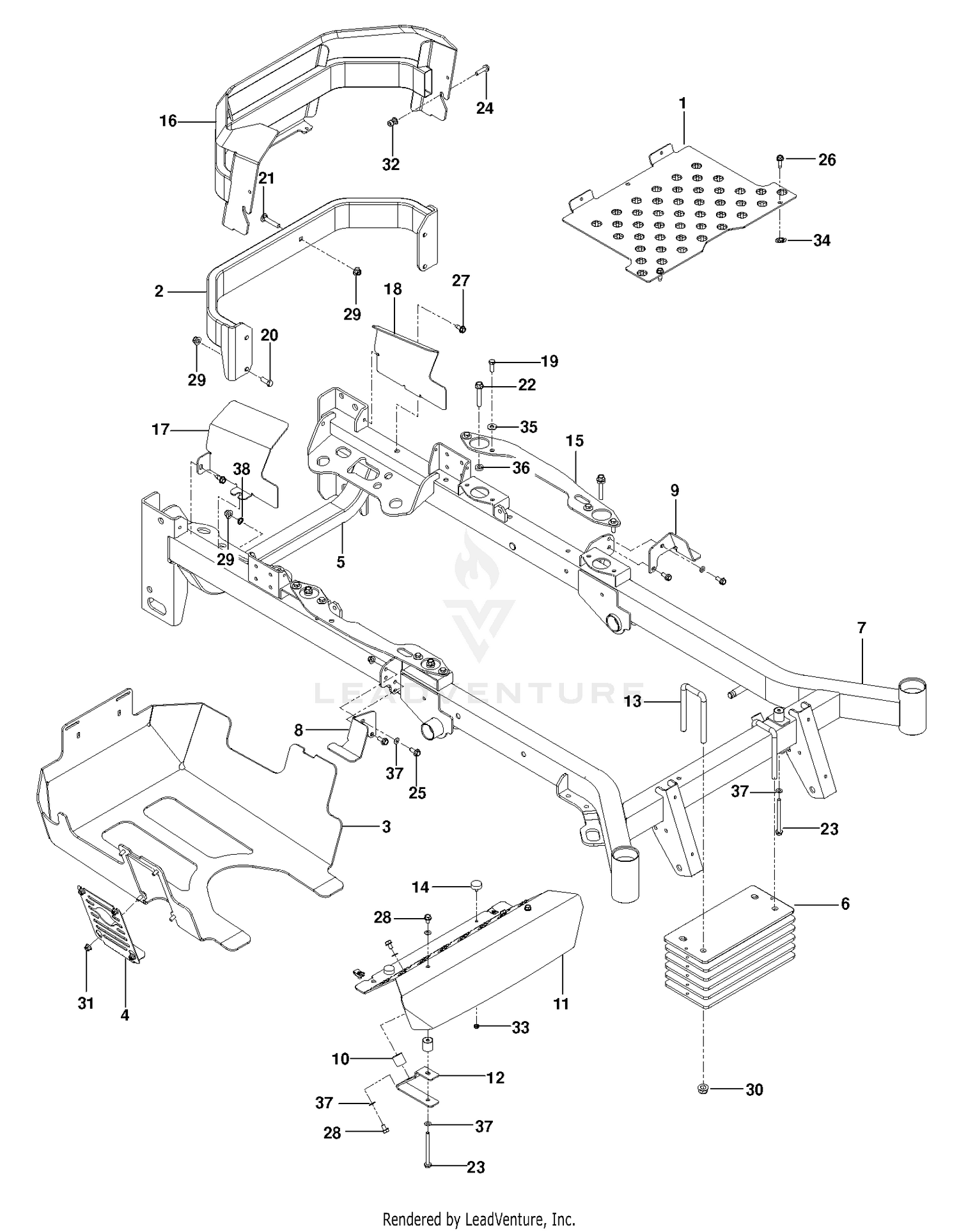

| Ref | Part Number | Description |
|---|
| 1 |
138-7949 |
COUPLER-STEER, SKID Price: $3,340.85 |
| 1 |
574215602 |
PLATE, FLOOR PAN, OR Price: $109.99 |
| 2 |
138-8069 |
COUPLER Price: $164.12 |
| 2 |
522738904 |
BUMPER.REAR.W/DECALS This part replaces 522738902. Price: $149.99 |
| 3 |
138-8070 |
HANDLE-RH Price: $222.16 |
| 3 |
577100803 |
SKID.PLATE.GRAY Price: $599.99 |
| 4 |
138-8071 |
HANDLE-LH Price: $222.16 |
| 4 |
577100902 |
PANEL.ACCESS.GRAY Price: $29.99 |
| 5 |
138-8072 |
LINKAGE Price: $106.49 |
| 6 |
138-8073 |
LATCH Price: $248.99 |
| 6 |
575880501 |
PLATE.WEIGHT.BLK.X431 This part replaces 575880502. Price: $32.99 |
| 7 |
138-8074 |
SPRING Price: $62.82 |
| 8 |
138-8075 |
BUSHING-INSERT Price: $39.22 |
| 9 |
138-8076 |
PIN-ROLL Price: $3.46 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
510083201 |
MOUNT, F/F INSERT Price: $4.99 |
| 11 |
323-10 |
SCREW-HH Price: $0.89 |
| 11 |
574215702 |
PLATE, FOOT REST, OR Price: $99.99 |
| 12 |
510040302 |
Brackets This part replaces 510040301. Price: $12.99 |
| 12 |
HDW19795 |
CARRIAGE BOLT, 3/4"-10 X 5" This part replaces 138-8078. Price: $17.72 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
575880601 |
LINKAGE, U-BOLT Price: $29.99 |
| 14 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 14 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 15 |
603773 |
LOCKNUT This part replaces 125-5069. Price: $2.09 |
| 16 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 19 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 20 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 21 |
595901401 |
Bolts This part replaces 539100145. Price: $2.99 |
| 22 |
577098301 |
HHFS 3/8-16 X 2.25 GD 8 This part replaces 574496901. Price: $5.99 |
| 23 |
596241601 |
Bolts This part replaces 539131780. Price: $1.99 |
| 24 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 25 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 26 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 27 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 28 |
596030701 |
Screws This part replaces 539990858. Price: $2.99 |
| 29 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 30 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 31 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 32 |
594977401 |
Nuts This part replaces 539111028. Price: $1.99 |
| 33 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 34 |
583400601 |
PALNUT.5/16" This part replaces 532423063. Price: $2.99 |
| 35 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 36 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
| 37 |
596565001 |
Washers This part replaces 539109600. Price: $2.99 |
| 38 |
539109603 |
WASHER 3/8 EXT STAR ZD Price: $2.99 |
