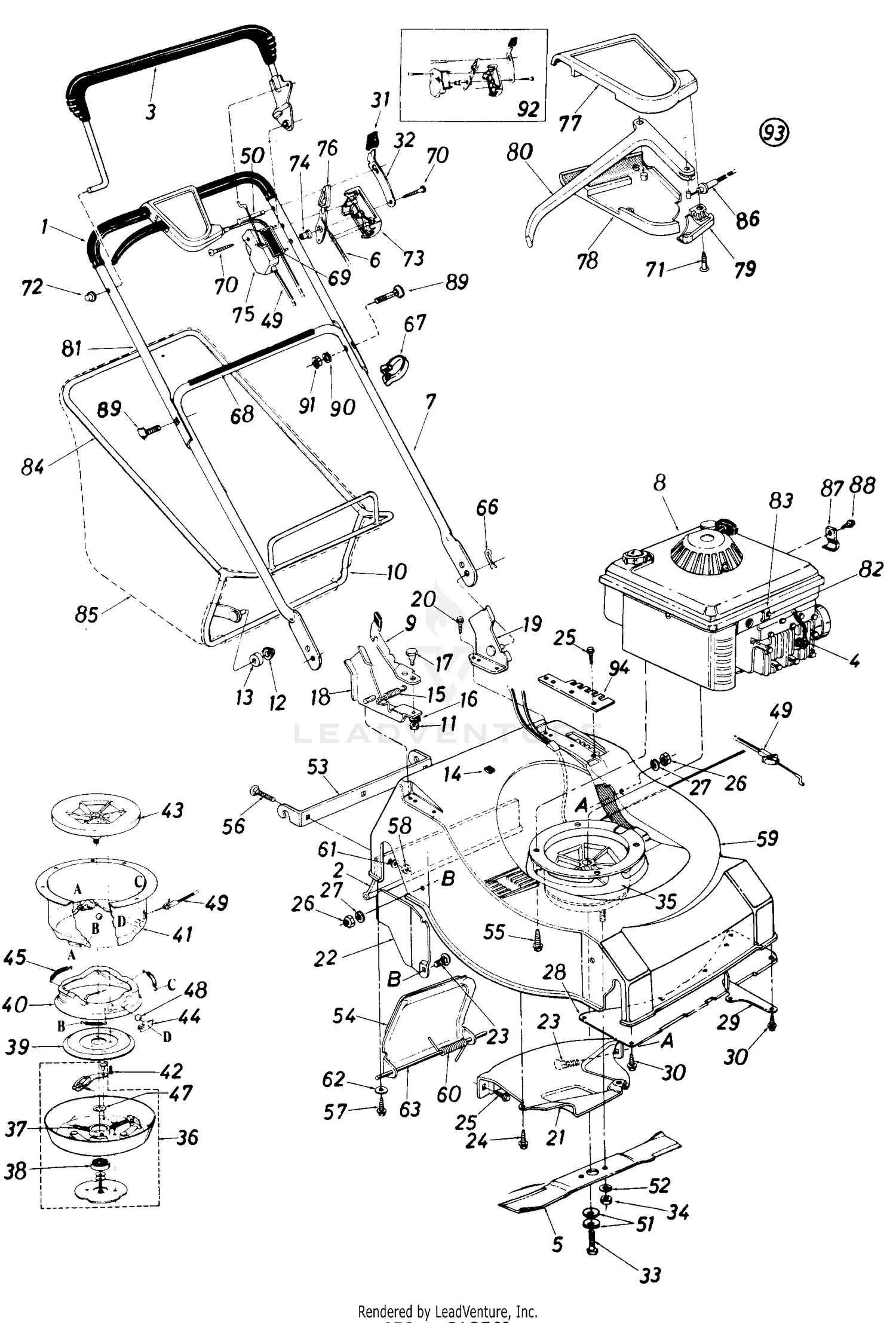

| Ref | Part Number | Description |
|---|
| 1 |
718-0145 |
Grip Price: Call Us |
| 2 |
731-0585 |
FLAP ASSEMBLY-RR Not Available Price: |
| 3 |
731-0609 |
BAIL (LH) Not Available Price: |
| 4 |
735-0639 |
INSULATOR-SPARK PLUG Not Available Price: |
| 6 |
946-0674A |
Throttle Wire-58" Lg. Not Available This part replaces 746-0472. Price: |
| 7 |
749-0907B |
Lower Handle This part replaces 749-0505. Price: $43.95 |
| 8 |
N/A |
Engine |
| 9 |
14845 |
CATCHER LOCK LEVER W/ KNOB Not Available Price: |
| 10 |
14582 |
CATCHER LOWER FRAME Not Available Price: |
| 11 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 12 |
726-0100 |
Push Nut 3/8" Rod Price: $3.75 |
| 13 |
731-0430 |
ROLLER-PLASTIC Not Available Price: |
| 14 |
731-0564 |
PLUG Not Available Price: |
| 15 |
732-0357A |
Extension Spring .33 OD x 1.12 Lg. This part replaces 732-0357. Price: $3.94 |
| 16 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 17 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 18 |
14593 |
BRACKET-HA Not Available Price: |
| 19 |
14597 |
BRACKET-HA Not Available Price: |
| 20 |
710-0788 |
Screw, Hex This part replaces 710-0588. Price: $6.20 |
| 21 |
15248 |
Rear Baffle-L.H. Price: Call Us |
| 22 |
15254 |
Side Baffle Price: Call Us |
| 23 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 24 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 25 |
710-0782 |
TAP SCREW Not Available Price: |
| 26 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 27 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 28 |
15668 |
Front Cover Plate Price: Call Us |
| 29 |
15253 |
Left Strap Price: Call Us |
| 30 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 31 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 32 |
732-0401 |
SPRING-LOCKOUT Not Available Price: |
| 33 |
710-0818 |
Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8) Price: $5.95 |
| 34 |
712-0241 |
Hex Nut 3/8-24 Thd. This part replaces 712-0328. Price: $3.86 |
| 35 |
717-0485 |
BLADE BRAKE CLUTCH ASS'Y. COMP. Not Available Price: |
| 36 |
14300 |
CLUTCH BLADE HOUSING ASS'Y. Not Available Price: |
| 37 |
732-0396 |
SPRING Not Available Price: |
| 38 |
941-0600 |
BALL BEARING This part replaces 741-0124. Price: $23.34 |
| 39 |
14304 |
CLUTCH CONE Not Available Price: |
| 40 |
14305 |
Brake Cup Cone Price: Call Us |
| 41 |
14307 |
HOUSING-CL Not Available Price: |
| 42 |
710-0875 |
Hex TT-Tap L-Scr. 1/4-20 x .75" Lg. Price: $3.64 |
| 43 |
719-0256 |
ADAPTER-FAN Not Available Price: |
| 44 |
731-0520 |
BALL-BLOCK Not Available Price: |
| 45 |
732-0397 |
EXTENSION SPRING Not Available Price: |
| 47 |
736-0333 |
FLAT WASHER .687 x 1.060 x .032 Not Available Price: |
| 48 |
741-0326 |
STEEL BALL Not Available Price: |
| 49 |
746-0400 |
CLUTCH CABLE Not Available Price: |
| 50 |
731-0607 |
LOCKING PIN Not Available Price: |
| 51 |
736-0105 |
Bell-Wash. .400" I.D. x .88"O.D. Price: $3.96 |
| 52 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 53 |
14012 |
ADAPTER-GR Not Available Price: |
| 54 |
15245 |
Chute Door Price: Call Us |
| 55 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 56 |
710-0932A |
SCREW 1/4-20 x 1 GR5 This part replaces 710-0932. Price: $3.66 |
| 57 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 58 |
712-0271 |
Sems Nut 1/4-20 Thd. Price: $3.78 |
| 60 |
732-0408 |
SPRING Not Available Price: |
| 61 |
736-0173 |
Fl-Wash. .281" I.D. x .73" O.D. x .063 Price: $3.76 |
| 62 |
736-0211 |
Fl-Wash. .285" I.D. x 1.25" O.D. x .060 Price: $5.99 |
| 63 |
747-0353 |
ROD .25" DIA. x 8.25 LG. Not Available Price: |
| 66 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 67 |
726-0192 |
CABLE TIE Not Available Price: |
| 68 |
777-3453 |
Instruction Label-Handle Price: Call Us |
| 69 |
777-5166 |
CONTROL LABEL Not Available Price: |
| 70 |
710-0796 |
Truss Mach. B-Tap Scr. #12 x 1.50" Lg. Price: $4.75 |
| 71 |
710-0841 |
Flat C-Sunk AB-Tap Scr. #10 x.75" Lg. Price: $3.95 |
| 72 |
726-0135 |
Cap Speed Nut 5/16" Rod Price: $5.94 |
| 73 |
731-0523 |
CONTROL PANEL HALF Not Available Price: |
| 74 |
731-0524 |
CONROL DISC PIN Not Available Price: |
| 75 |
731-0526 |
CLUTCH PANEL HALF Not Available Price: |
| 76 |
931-0972 |
Throttle Control Lever This part replaces 731-0528. Price: $8.84 |
| 77 |
731-0617A |
HALF COVER Not Available This part replaces 731-0617. Price: |
| 78 |
753-0833 |
Control Cover Half-Lower This part replaces 731-0618. Price: $47.34 |
| 79 |
731-0619 |
CABLE MOUNTING CAP Not Available Price: |
| 80 |
731-0620A |
Drive Control This part replaces 731-0620. Price: $13.59 |
| 81 |
749-0437 |
Upper Handle (Chrome) Price: Call Us |
| 82 |
710-0899A |
Hex Sems Scr. #10-32 x .62" Lg. This part replaces 710-0899. Price: $5.89 |
| 83 |
751-0333 |
CASING CLAMP Not Available Price: |
| 84 |
749-0278 |
FRAME-CATCHER-UPR Not Available Price: |
| 85 |
764-0171 |
GRASSBAG Not Available Price: |
| 86 |
746-0463 |
CABLE-CLUTCH Not Available Price: |
| 87 |
12894 |
CABLE CLAMP Not Available Price: |
| 88 |
910-0429 |
Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20 |
| 89 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 90 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 91 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 92 |
753-0361 |
KIT-THROTTLE Not Available Price: |
| 93 |
753-0362 |
KIT-CLUTCH CONTROL Not Available Price: |
| 94 |
15879 |
Reinforcing Brkt. Price: Call Us |
