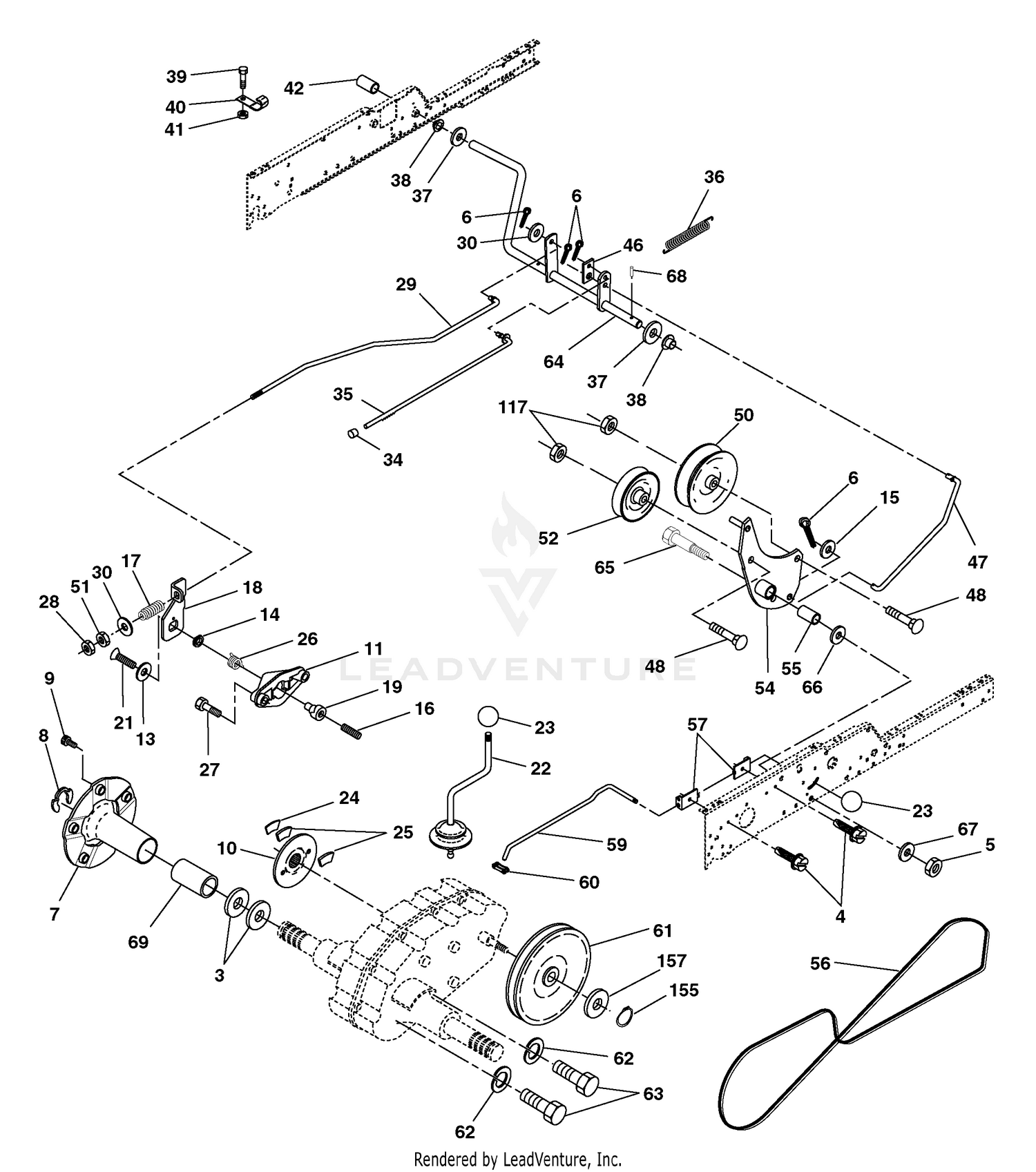

| Ref | Part Number | Description |
|---|
| 1 |
94-2602 |
ACTUATOR-JOYSTICK Price: $13.14 |
| 2 |
94-2601 |
MICROSWITCH Price: $74.70 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
93-9196 |
JOYSTICK-6 POSITION Price: $2,343.29 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 4 |
94-3045 |
COLLAR-INTERLOCK,JOYSTICK Price: $92.05 |
| 5 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 5 |
94-3046 |
DISCONTINUED Price: Call Us |
| 6 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 6 |
94-2600 |
BOOT-JOYSTICK Price: $84.16 |
| 7 |
532634692 |
HUB.ASSEMBLY.WHEEL.REAR This part replaces 532149176. Price: $42.99 |
| 7 |
94-3055 |
CAP - LOWER, JOYSTICK Price: $26.29 |
| 8 |
812000034 |
Klip, Ring Price: $2.99 |
| 8 |
94-3056 |
DISCONTINUED Price: Call Us |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 9 |
94-3057 |
SPRING-COMPRESS,JOYSTICK Price: $15.18 |
| 10 |
532142509 |
DISC BRAKE Price: $17.99 |
| 10 |
94-3058 |
DISCONTINUED Price: Call Us |
| 11 |
532136927 |
YOKE-BRAKE DISC Price: $9.99 |
| 11 |
93-6689 |
DECAL-NO RIDERS This part replaces 75-5190. Price: $9.75 |
| 12 |
94-6348 |
Decal-Fuse Price: Call Us |
| 12 |
94-6349 |
DECAL-FUSES Price: $11.05 |
| 13 |
532139419 |
WASHER Price: $4.99 |
| 13 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
532138901 |
BUSHING Price: $4.99 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
3217-26 |
NUT-HEX Price: $0.25 |
| 16 |
532143012 |
SET SCREW Price: $2.99 |
| 17 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 17 |
532126909 |
SPRING,ROD BRAKE Price: $4.99 |
| 18 |
532137104 |
BRAKE LEVER Price: $5.99 |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 19 |
532136926 |
BRAKE DISC CAM Price: $11.99 |
| 21 |
823260412 |
Screw, Flat Head 1/4-28 x 3/4 Price: $3.99 |
| 22 |
532194121 |
LEVER.ASM.SHIFT Price: $64.99 |
| 22 |
93-1268 |
DECAL-HOC SELECTOR This part replaces 94-2633. Price: $31.62 |
| 23 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 23 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 24 |
3220-24 |
NUT-HEX Price: $0.96 |
| 24 |
532136925 |
BRAKE PUCK SUPPORT Price: $3.99 |
| 25 |
532136923 |
BRAKE PUCK TOP Price: $14.99 |
| 25 |
75-1010 |
SWITCH-REEL Price: $84.90 |
| 26 |
532137552 |
RETURN SPRING Price: $4.99 |
| 26 |
94-2613 |
DISCONTINUED Price: Call Us |
| 27 |
218-498 |
NUT-LOCK Price: $0.68 |
| 27 |
532193135 |
SCREW Price: $2.66 |
| 28 |
3256-75 |
WASHER-FLAT Price: $0.79 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532137213 |
ROD BRAKE ZINC GT Price: $20.99 |
| 29 |
93-8497 |
DISCONTINUED Price: Call Us |
| 30 |
3250-31 |
SCREW-PPH Price: $0.25 |
| 30 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 31 |
3290-489 |
KNOB Price: $46.30 |
| 32 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 33 |
93-7484 |
CLUSTER-LAMP Price: $121.39 |
| 34 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 34 |
93-7483 |
LAMP-CLUSTER Price: $97.05 |
| 35 |
532137648 |
PARKING BRAKE ROD Price: $9.99 |
| 35 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 36 |
3254-20 |
WASHER-LOCK, INT This part replaces 218-589. Price: $1.29 |
| 36 |
532149412 |
SPRING DRIVE GROUND Price: $4.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 37 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 38 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 38 |
532150035 |
NYLINER Price: $3.99 |
| 39 |
218-446 |
NUT-HEX Price: $6.09 |
| 39 |
874321016 |
Screw, Fin. #10-24 x 1 Price: $2.99 |
| 40 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 40 |
532178575 |
ACTUATOR INTERLOCK SWITCH Price: $3.99 |
| 41 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 41 |
873931000 |
Nut, Centerlock #10-24 Price: $4.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 42 |
93-1260 |
DISCONTINUED Price: Call Us |
| 42 |
94-1400 |
DISCONTINUED Price: Call Us |
| 43 |
94-1401-03 |
DISCONTINUED This part replaces 94-1401. Price: Call Us |
| 44 |
109355 |
FUSE-BLADE, 15 AMP This part replaces 218-581. Price: $3.09 |
| 44 |
218-594 |
FUSE-20 AMP Price: $3.02 |
| 46 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 46 |
532145170 |
RETAINER SPRING Price: $3.99 |
| 47 |
27-2360 |
SWITCH Price: $46.56 |
| 47 |
532138228 |
CLUTCH ROD Price: $6.99 |
| 48 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 48 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 49 |
85-4480 |
KNOB Price: $16.02 |
| 50 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 50 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 51 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 51 |
93-7587 |
BRACKET-FUSE BLOCK/PANEL Price: $19.16 |
| 52 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 52 |
532139123 |
PULLEY.IDLER.V. Price: $32.99 |
| 53 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 54 |
104-4235 |
POTENTIOMETER ASM This part replaces 85-4470. Price: $260.80 |
| 54 |
532161590 |
CLUTCH.ARM.ASM.IDLER.98 Price: $18.99 |
| 55 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 55 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 56 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 56 |
532137153 |
V-BELT GROUND DRIVE Price: $59.99 |
| 57 |
321-39 |
SCREW-HH Price: $0.42 |
| 57 |
532141756 |
BRACKET SHIFT ROD Price: $3.99 |
| 58 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 59 |
2412-126 |
R-CLAMP Price: $2.51 |
| 59 |
532122253 |
ROD SHIFT HI LO Price: $14.99 |
| 60 |
532122268 |
CONNECTING LINK Price: $4.99 |
| 60 |
92-7632 |
HARNESS - WIRE Price: $758.90 |
| 61 |
532184787 |
PULLEY.TRANSAXLE Price: $59.99 |
| 61 |
75-5740-03 |
BOX-CONTROL ASM This part replaces 75-5740. Price: $261.87 |
| 62 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 63 |
874780720 |
BOLT, HEX Price: $5.99 |
| 64 |
532154752 |
SHAFT CLUTCH/BRAKE PEDAL Price: $39.99 |
| 65 |
532179613 |
BOLT.SHLDR.3/8-16 Price: $4.99 |
| 66 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 67 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 68 |
532005142 |
ROLL PIN STD Price: $3.99 |
| 69 |
532136327 |
COVER.HUB.BLACK Price: $4.99 |
| 117 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 155 |
812000028 |
RETAINING RING LT Price: $1.99 |
