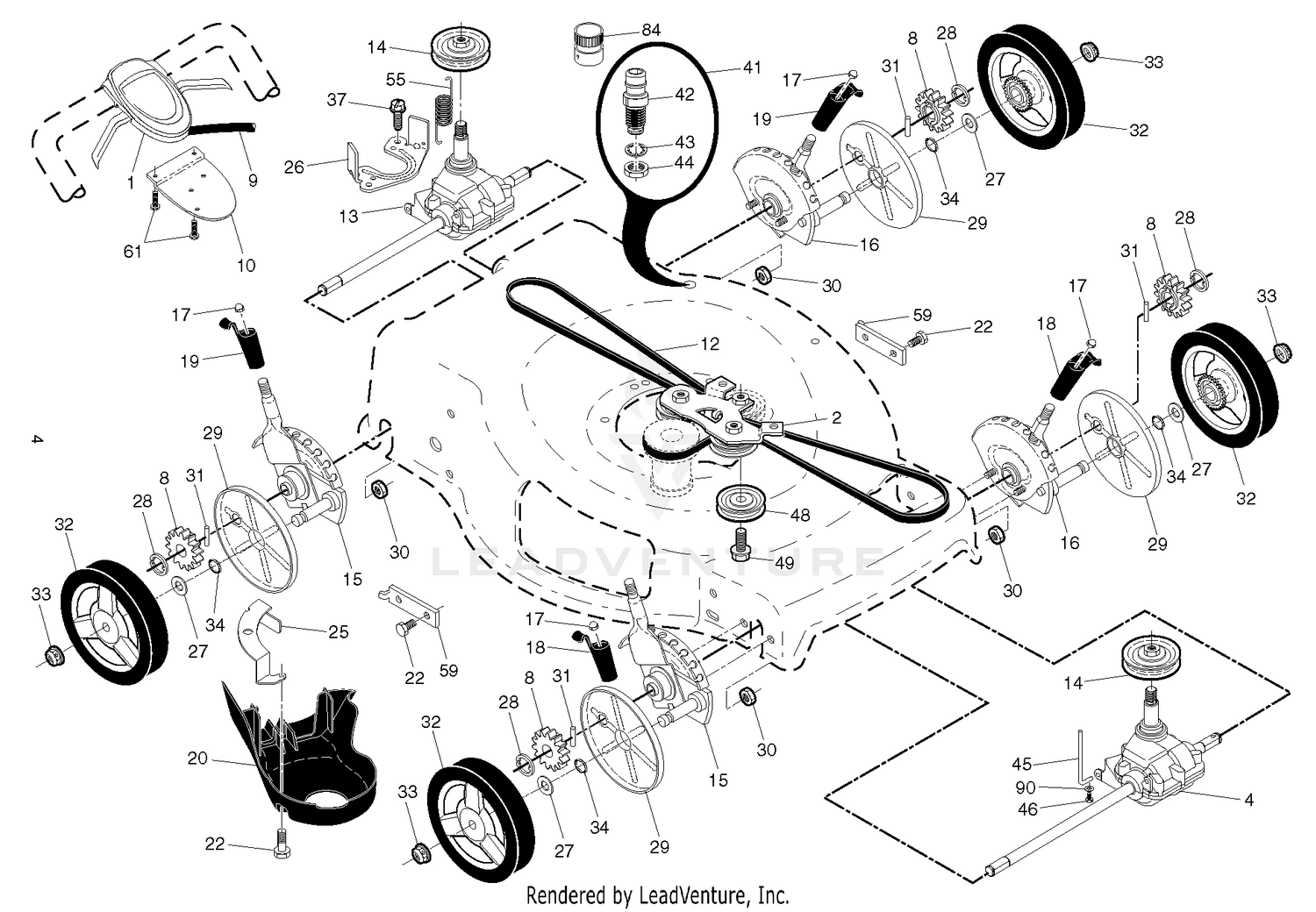

| Ref | Part Number | Description |
|---|
| 1 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $169.99 |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 4 |
76-9690-03 |
ROD-BRAKE This part replaces 76-9690. Price: $52.07 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 8 |
82-5190-03 |
PEDAL-TRACTION This part replaces 82-5190. Price: $140.00 |
| 9 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 10 |
63-9751 |
DISCONTINUED Price: Call Us |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 11 |
82-5290 |
CONTROL ROD *B Price: $111.27 |
| 12 |
3274-19 |
SCREW-HSH Price: $1.42 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 13 |
92-1367 |
LEVER-TRACTION Price: $84.25 |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 15 |
82-4960 |
PAD-FOOT, BRAKE Price: $27.27 |
| 16 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 17 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $37.99 |
| 18 |
76-9680 |
HUB-BRAKE Price: $54.35 |
| 19 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 20 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 21 |
76-8890 |
L/H BRAKE PEDAL WA *B Price: $157.84 |
| 22 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 23 |
76-8930 |
R/H BRAKE PEDAL WA *B Price: $179.24 |
| 24 |
92-2586-01 |
LEVER-BRAKE This part replaces 92-1379. Price: $75.15 |
| 25 |
32121-25 |
PIN-ROLL Price: $0.61 |
| 26 |
76-9720 |
BRAKE SHAFT WA *BO Price: $570.65 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 29 |
323-12 |
SCREW-HH Price: $1.14 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
76-9030 |
BRAKE SUPPORT ASM Price: $116.55 |
| 31 |
321-9 |
SCREW-HH Price: $0.27 |
| 32 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 34 |
63-8410 |
WASHER Price: $1.76 |
| 35 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 36 |
32128-20 |
NUT-HF Price: $0.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 38 |
74-6110 |
STOP-TRACTION Price: $21.73 |
| 39 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 39 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 40 |
3218-2 |
NUT-JAM Price: $0.25 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
322-4 |
SCREW-HH Price: $0.35 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 42 |
532441425 |
STEERING.BOOT.HUSQ.LT This part replaces 532411139. Price: $7.99 |
| 42 |
76-8810 |
DECAL - GENERAL SAFE Price: $34.47 |
| 43 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532199978. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 97 |
874780564 |
BOLT Price: $4.99 |
