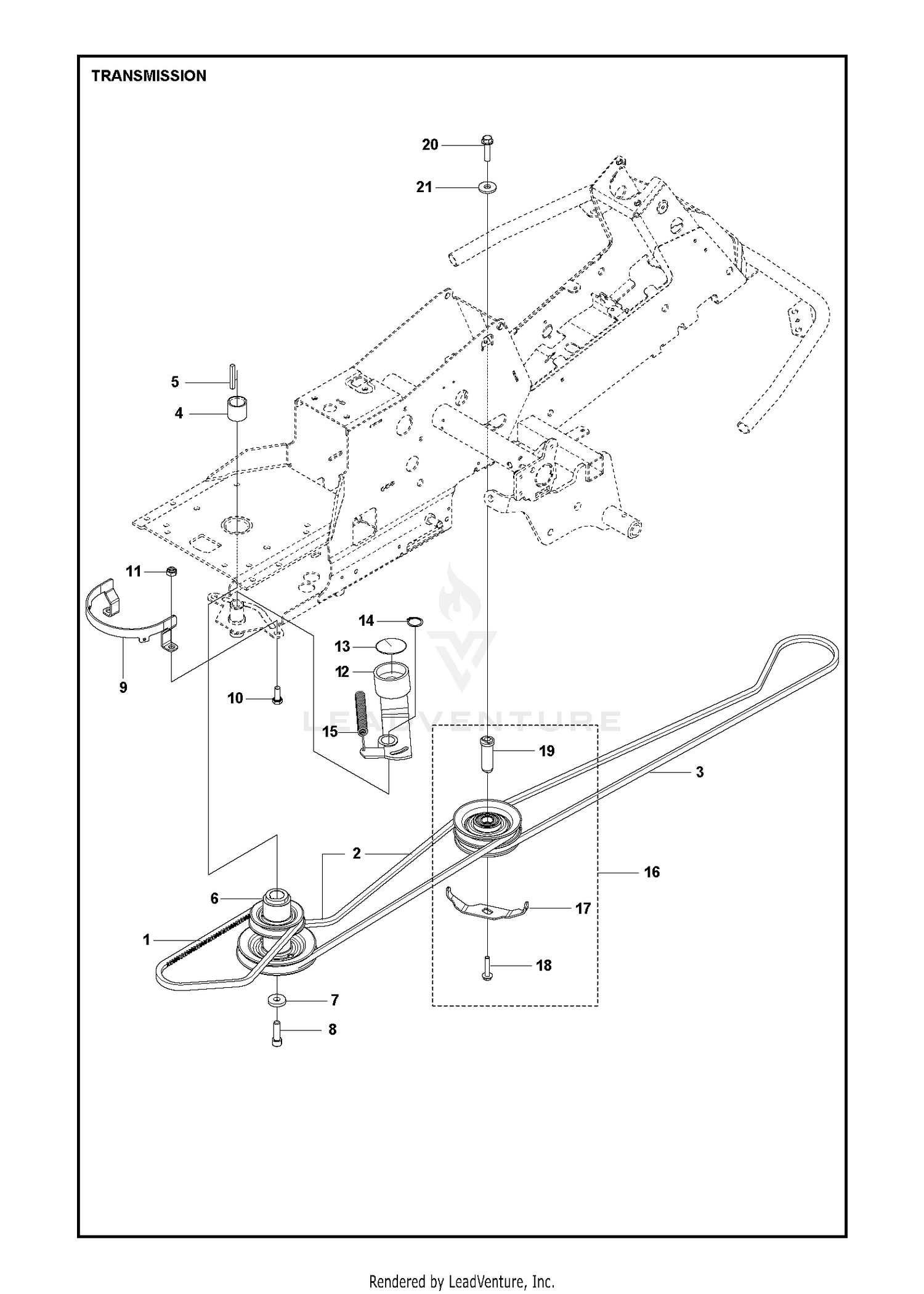

TRANSMISSION 2
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3230-23 | SCREW-CARR Price: $0.89 |
| 1 | 589531201 | BELT Price: $27.99 |
| 2 | 119-0000-03 | CHANNEL-SUPPORT Price: $42.04 |
| 2 | 599675902 | BELT KIT This part replaces 589530401. Price: $44.99 |
| 3 | 112-7449 | STRAP-SUPPORT This part replaces 112-7449-03. Price: $7.18 |
| 3 | 594977801 | Belts Price: $34.99 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 506509203 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 3212-8 | SCREW-HH Price: $5.69 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 7 | 117-4798-03 | ARM-SUPPORT Price: $114.47 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 108-8646 | SCREW-HH, LOCK Price: $2.85 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 112-7405 | NUT-HEX, COUPLING Price: $33.55 |
| 9 | 587425201 | Price: Call Us |
| 10 | 17-7190 | SPACER-FINGER Price: $6.51 |
| 10 | 725249371 | Screw M10x25 Price: $1.82 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 11 | 732212001 | NUT Price: $3.99 |
| 12 | 110-0413 | SEATBELT-RETRACTABLE Price: $286.99 |
| 12 | 535484401 | TENSIONER Price: $54.99 |
| 13 | 3212-4 | SCREW-HH Price: $2.73 |
| 13 | 535485001 | Seals Price: $11.99 |
| 14 | 120-9017-0P | LATCH-SEAT This part replaces 120-9017-03. Price: $19.73 |
| 14 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 15 | 119-1415 | PIN-COTTER, LOCKING Price: $0.22 |
| 15 | 506665601 | SPRING Price: $24.99 |
| 16 | 120-9018 | ROD-LATCH Price: $28.13 |
| 16 | 581916301 | NEEDS DESCRIPTION Price: Call Us |
| 17 | 119-1414 | PIN-COTTER, LOCKING Price: $0.54 |
| 17 | 544405301 | BELT GUIDE Price: $6.99 |
| 18 | 283-57 | PIN-CLEVIS Price: $1.15 |
| 18 | 586320401 | Price: Call Us |
| 19 | 581916401 | SHAFT Price: $19.99 |
| 19 | 83-1040 | WASHER-FLAT Price: $2.31 |
| 20 | 323-9 | SCREW-HH Price: $1.29 |
| 20 | 506675402 | BOLT Price: $5.99 |
| 21 | 112-7264 | SCREW-HH Price: $3.11 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 23 | 110-5954 | MOUNT-CENTER, BONDED Price: $65.28 |
| 24 | 115-5519 | WASHER-PLAIN Price: $7.28 |
| 25 | 99-5107 | NUT-LOCK Price: $1.77 |
| 26 | 93-5338 | ROD-PROP Price: $124.99 |
| 27 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 28 | 3272-5 | PIN-COTTER Price: $1.39 |
| 29 | 325-18 | SCREW-HH Price: $3.19 |
| 30 | 3296-45 | NUT-HEX Price: $3.79 |
| 31 | 702093 | SCREW-HH Price: Call Us |
| 32 | 130-2701 | SEAT AND SUSPENSION ASM Price: $3,063.06 |
| 33 | 3256-82 | WASHER-FLAT Price: $0.47 |
| 34 | 5979 | BUSHING-NYLINER Price: $3.19 |
| 35 | 95-1821 | SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 36 | 137-5475-03 | PLATE-SEAT Price: $332.94 |
| 37 | 2412-133 | CLAMP-R Price: $3.19 |
| 38 | 32104-116 | SCREW-HWHTF Price: $0.55 |
| 39 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 40 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 41 | 3255-8 | WASHER-LOCK Price: $0.31 |
| 42 | 322-3 | SCREW-HH Price: $0.79 |
| 43 | 117-4059 | NUT-HEX Price: $1.84 |
