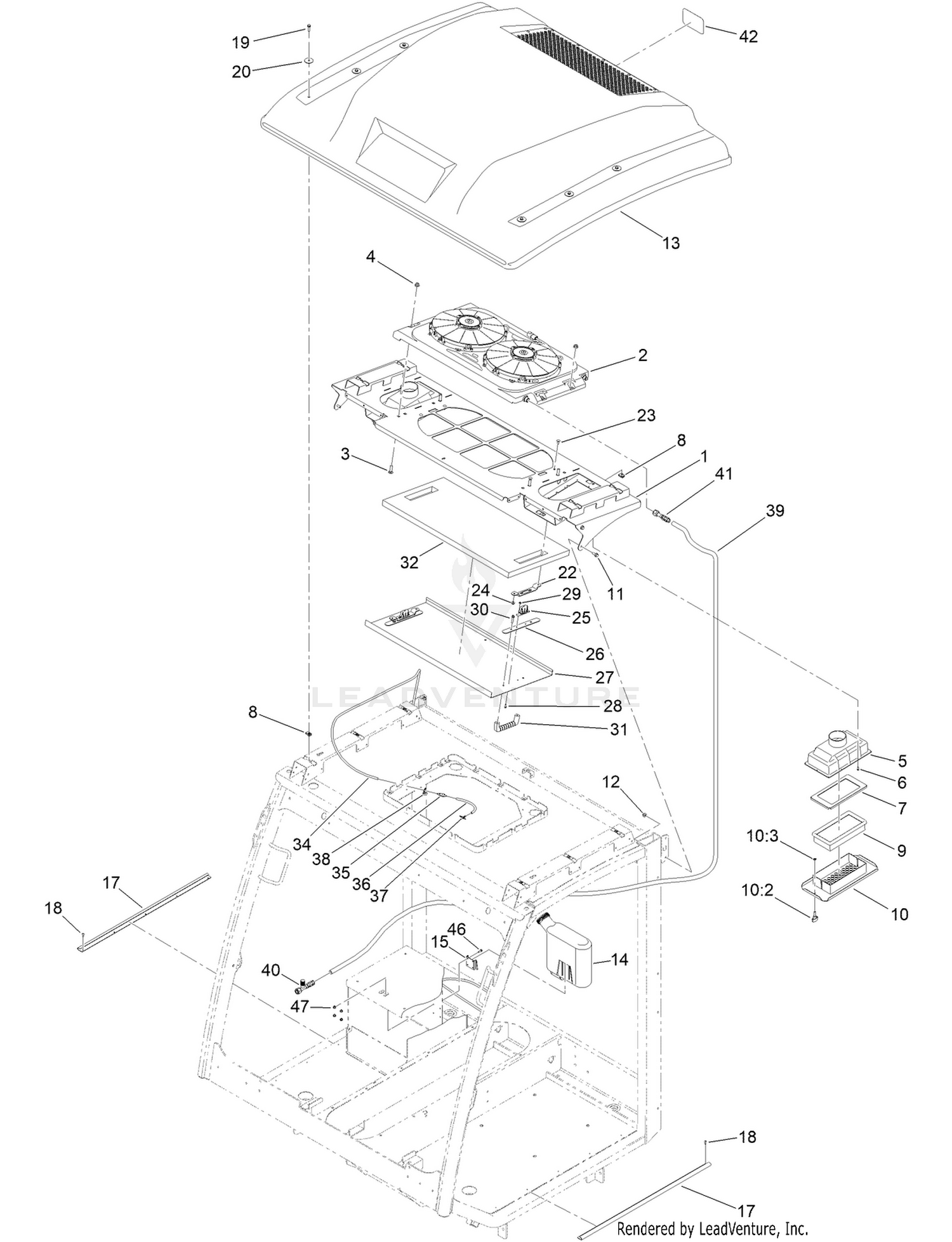

| Ref | Part Number | Description |
|---|
| 1 |
137-1257-03 |
WING-REAR Price: $757.61 |
| 2 |
138-2907 |
CONDENSER Price: $1,487.20 |
| 3 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
137-1281 |
BOX-INTAKE, AIR Price: $35.77 |
| 6 |
363-8245 |
SCREW-TAP Price: $0.66 |
| 7 |
132-3474 |
INSERT-SEAL, FILTER Price: $68.15 |
| 8 |
107069 |
CLIP Price: $1.79 |
| 9 |
121-8457 |
FILTER-AIR Price: $34.12 |
| 10 |
137-1397 |
FILTER COVER ASM Price: $121.03 |
| 11 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 12 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
138-2718 |
LONG ROOF ASM Price: $500.84 |
| 14 |
138-2771 |
TANK-WASHER Price: $107.33 |
| 15 |
138-2772 |
BRACKET Price: $7.90 |
| 17 |
138-2774-03 |
BRACKET-RETAINER Price: $54.15 |
| 18 |
105-6849 |
SCREW-FORMING, THREAD Price: $0.60 |
| 19 |
120-4654 |
SCREW-HHF Price: $0.34 |
| 20 |
136-7176 |
WASHER-FENDER Price: $0.73 |
| 22 |
138-2742 |
MOUNT-LATCH This part replaces 138-2742-03. Price: $27.57 |
| 23 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 24 |
104-7201 |
NUT-HF Price: $0.69 |
| 25 |
130-0643 |
LATCH-PUSH TO CLOSE Price: $42.13 |
| 26 |
138-2744-03 |
PLATE-BACKING Price: $9.74 |
| 27 |
138-2743-03 |
PRE-FILTER, SCREEN Price: $225.06 |
| 28 |
112-3169 |
SCREW-HHF, SERRATED Price: $0.27 |
| 29 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 30 |
137-3101 |
SCREW-PLASTIC, HWH Price: $0.59 |
| 31 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 32 |
138-2745 |
FILTER-PRESCREEN Price: $92.38 |
| 34 |
138-3013 |
HOSE-WASHER, FLUID Price: $34.56 |
| 35 |
138-2830 |
VALVE-CHECK Price: $22.59 |
| 36 |
138-2854 |
HOSE-WASHER, FLUID Price: $408.30 |
| 37 |
138-3009 |
BARB-HOSE, TEE Price: $4.27 |
| 38 |
32180-139 |
MOUNT-TIE WRAP, MAGNETIC Price: $21.57 |
| 39 |
138-2918 |
HOSE-REFRIGERANT Price: $223.90 |
| 40 |
130-5757 |
FITTING-STRAIGHT, FEMALE Price: $83.49 |
| 41 |
138-2962 |
FITTING-STRAIGHT, FEMALE Price: $30.62 |
| 42 |
108-8452 |
DECAL-LOGO Price: $18.00 |
| 46 |
120-9641 |
SCREW-HHF Price: $0.95 |
