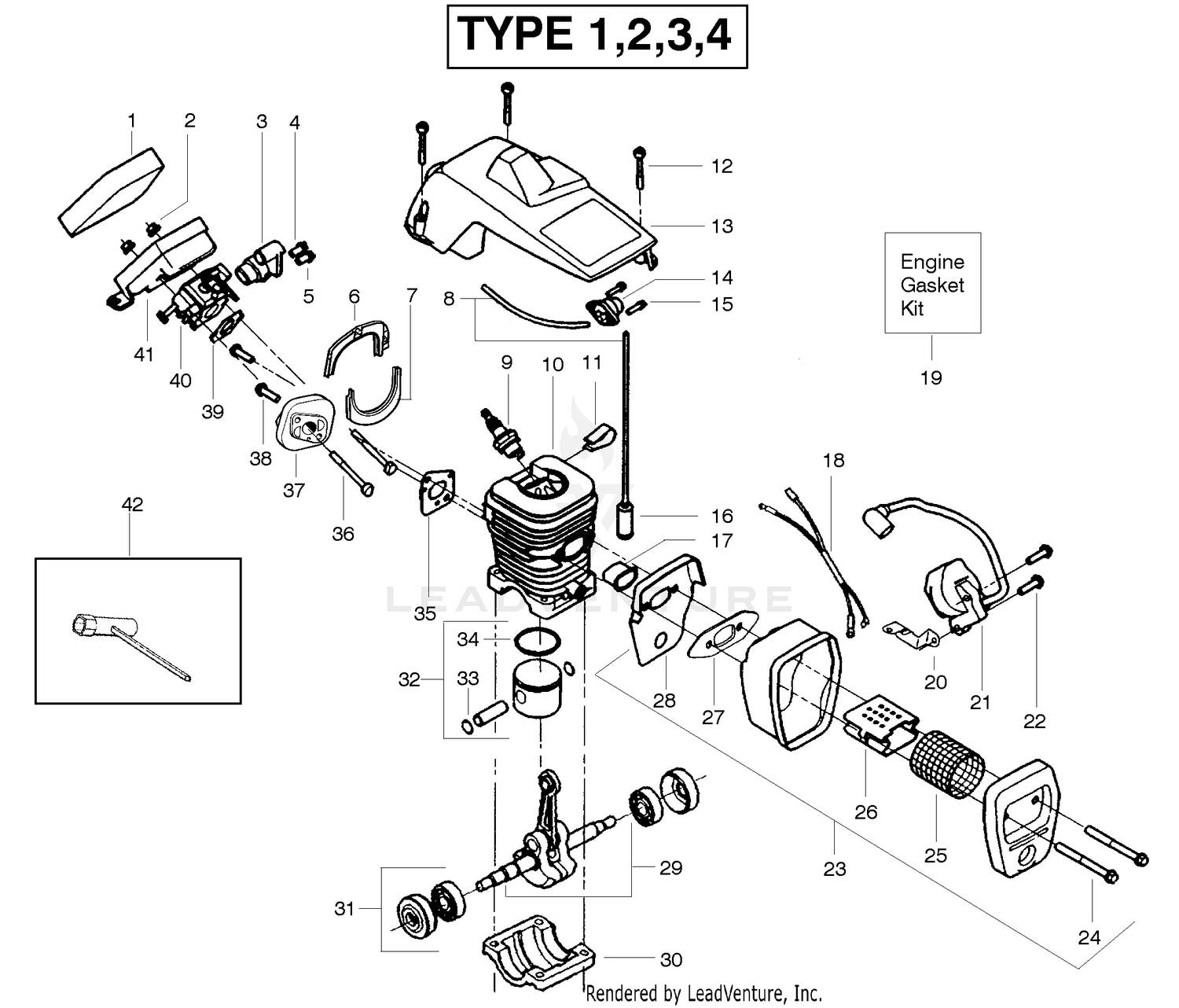

| Ref | Part Number | Description |
|---|
| 1 |
530037793 |
Foam- Air Filter Price: $1.99 |
| 2 |
530016101 |
Nut Price: $1.99 |
| 3 |
530049244 |
Grommet-Carb Adjust Price: $1.99 |
| 4 |
530038479 |
Limiter Cap-High (red) Price: $1.99 |
| 5 |
530038478 |
Limiter Cap-Low(blue) Price: $1.99 |
| 8 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 9 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 10 |
530071579 |
CYLINDER This part replaces 530069606. Price: $29.99 |
| 10 |
99-3582 |
THERMOSWITCH Price: $110.05 |
| 11 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 12 |
530016153 |
Screw Price: $1.99 |
| 13 |
530055187 |
Shield-Cylinder 2075c Price: $17.99 |
| 13 |
530056047 |
Shield-Cylinder 2075oc Price: $17.99 |
| 13 |
530071310 |
Shield-Cylinder 2075 Price: $9.99 |
| 14 |
530071835 |
Kit- Air Purge This part replaces 530047213. Price: $5.99 |
| 15 |
530015780 |
Screw Price: $1.99 |
| 16 |
530095646 |
Assy-Fuel Pick-up Price: $2.69 |
| 17 |
530037652 |
Insulator-Heat Price: $1.99 |
| 18 |
530052296 |
Assy. -Wire Harness Price: $4.99 |
| 20 |
530047442 |
Strap-Ground Price: $1.99 |
| 21 |
530039198 |
Ignition Module This part replaces 530052277. Price: $29.99 |
| 22 |
530015814 |
Screw Price: $1.49 |
| 24 |
530016132 |
Screw Price: $1.99 |
| 25 |
530036103 |
Screen-Spark Price: Call Us |
| 26 |
530037813 |
Diffuser-Muffler Price: $1.99 |
| 27 |
530069608 |
Gasket-Muffler Price: $5.99 |
| 28 |
530049870 |
Backplate-Muffler Price: $3.99 |
| 29 |
530047062 |
Assy.-Crankshaft Price: $72.99 |
| 30 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 31 |
530056363 |
Assy.-Seal & Bearing Price: $11.99 |
| 33 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 34 |
530029805 |
Ring-Piston Price: $2.99 |
| 35 |
530069608 |
Gasket-Carb. Adapter Price: $5.99 |
| 36 |
530016187 |
Screw Price: $1.99 |
| 37 |
530049700 |
Adapter -Carb. 2075c, 2075oc Price: $3.99 |
| 37 |
530071310 |
Adapter -Carb. 2075 (Kit) Price: $9.99 |
| 38 |
530016386 |
Screw Price: $5.99 |
| 39 |
530069608 |
Gasket-Carburetor Price: $5.99 |
| 41 |
530057480 |
Air Filter Housing This part replaces 530037804. Price: $4.99 |
| 42 |
530031163 |
Wrench-Bar Price: $4.99 |
