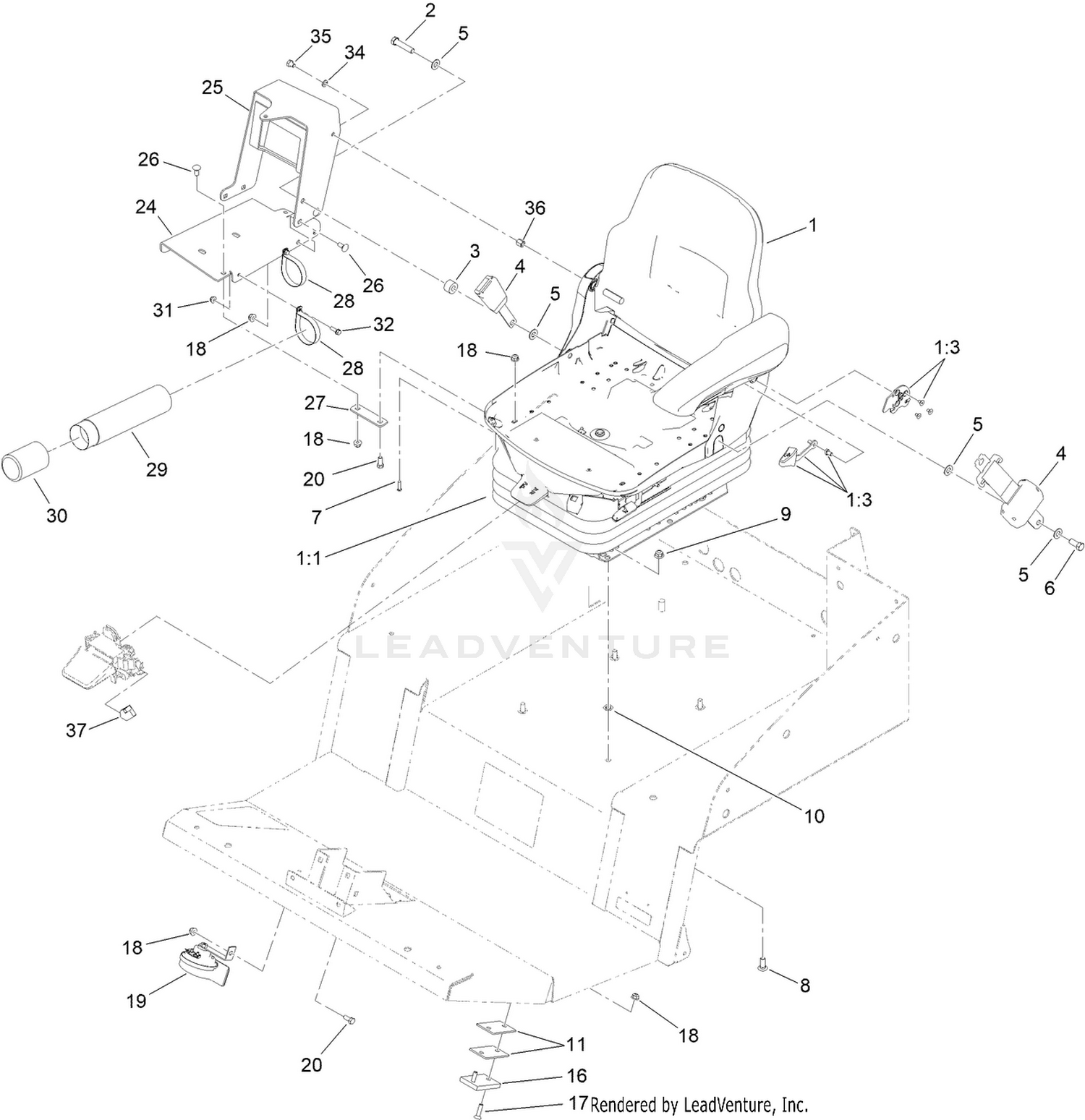

Seat Mount Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 3212-8 | SCREW-HH Price: $5.69 |
| 3 | 17-7190 | SPACER-FINGER Price: $6.51 |
| 4 | 110-0413 | SEATBELT-RETRACTABLE Price: $286.99 |
| 5 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 6 | 3212-4 | SCREW-HH Price: $2.73 |
| 7 | 119-7742 | SCREW-CUSHION Price: $9.68 |
| 8 | 3231-22 | SCREW-CARR Price: $0.72 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 107-3154 | NUT-PUSH Price: $0.99 |
| 11 | 114-5553 | SHIM-PAD Price: $7.94 |
| 16 | 69-9290 | PAD-BUMPER Price: $9.52 |
| 17 | 32108-103 | SCREW-FH Price: $0.68 |
| 18 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 19 | 116749 | HORN Price: $130.99 |
| 20 | 322-3 | SCREW-HH Price: $0.79 |
| 24 | 131-2355-03 | SUPPORT-ARM Price: $136.02 |
| 25 | 131-2352-03 | CHANNEL-SUPPORT Price: $60.02 |
| 26 | 3230-1 | BOLT-CARR Price: $1.49 |
| 27 | 131-2351 | STRAP-SUPPORT Price: $3.76 |
| 28 | 107-1865 | R-Clamp Price: $6.86 |
| 29 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 30 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 31 | 104-7201 | NUT-HF Price: $0.69 |
| 32 | 32105-15 | SCREW-HWH Price: $1.79 |
| 34 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 35 | 33114-010 | SCREW-HH Price: $1.56 |
| 36 | 112-7405 | NUT-HEX, COUPLING Price: $33.55 |
