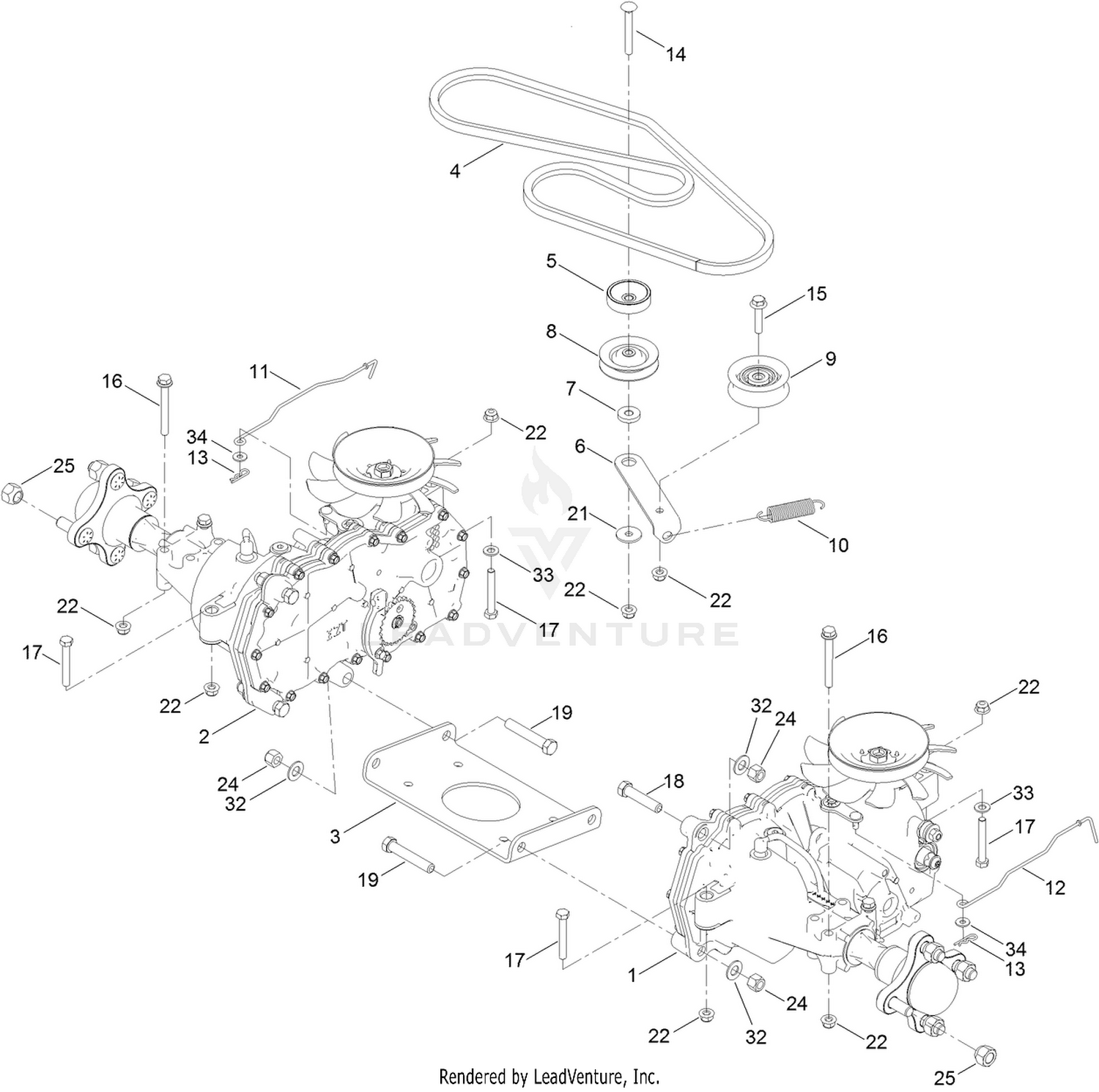

| Ref | Part Number | Description |
|---|
| 1 |
139-7460 |
LH HYDRO TRANSAXLE ASM Price: $876.54 |
| 2 |
139-7461 |
RH HYDRO TRANSAXLE ASM Price: $876.54 |
| 3 |
138-2571-03 |
CROSSPLATE-HYDRO Price: $17.89 |
| 4 |
139-2399 |
V-BELT Price: $25.73 |
| 5 |
138-9809 |
SPACER Price: $3.68 |
| 6 |
138-7276 |
ARM-IDLER Price: $3.74 |
| 7 |
138-7277 |
SPACER-ARM, IDLER Price: $1.01 |
| 8 |
68-0030-03 |
IDLER This part replaces 68-0030. Price: $17.98 |
| 9 |
138-7597 |
PULLEY-IDLER, FLAT Price: $10.22 |
| 10 |
137-7040 |
SPRING-RETURN, PEDAL Price: $4.89 |
| 11 |
138-7245 |
ROD-BYPASS, RH Price: $5.32 |
| 12 |
138-7243 |
ROD-BYPASS, LH Price: $5.32 |
| 13 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 14 |
3230-8 |
SCREW-CARR Price: $1.00 |
| 15 |
115-1794 |
SCREW-HHF Price: $1.73 |
| 16 |
138-7590 |
SCREW-HHF Price: $1.10 |
| 17 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 18 |
324-8 |
SCREW-HH Price: $4.29 |
| 19 |
324-10 |
SCREW-HH Price: $1.97 |
| 21 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 22 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 24 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 25 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 32 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 33 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
