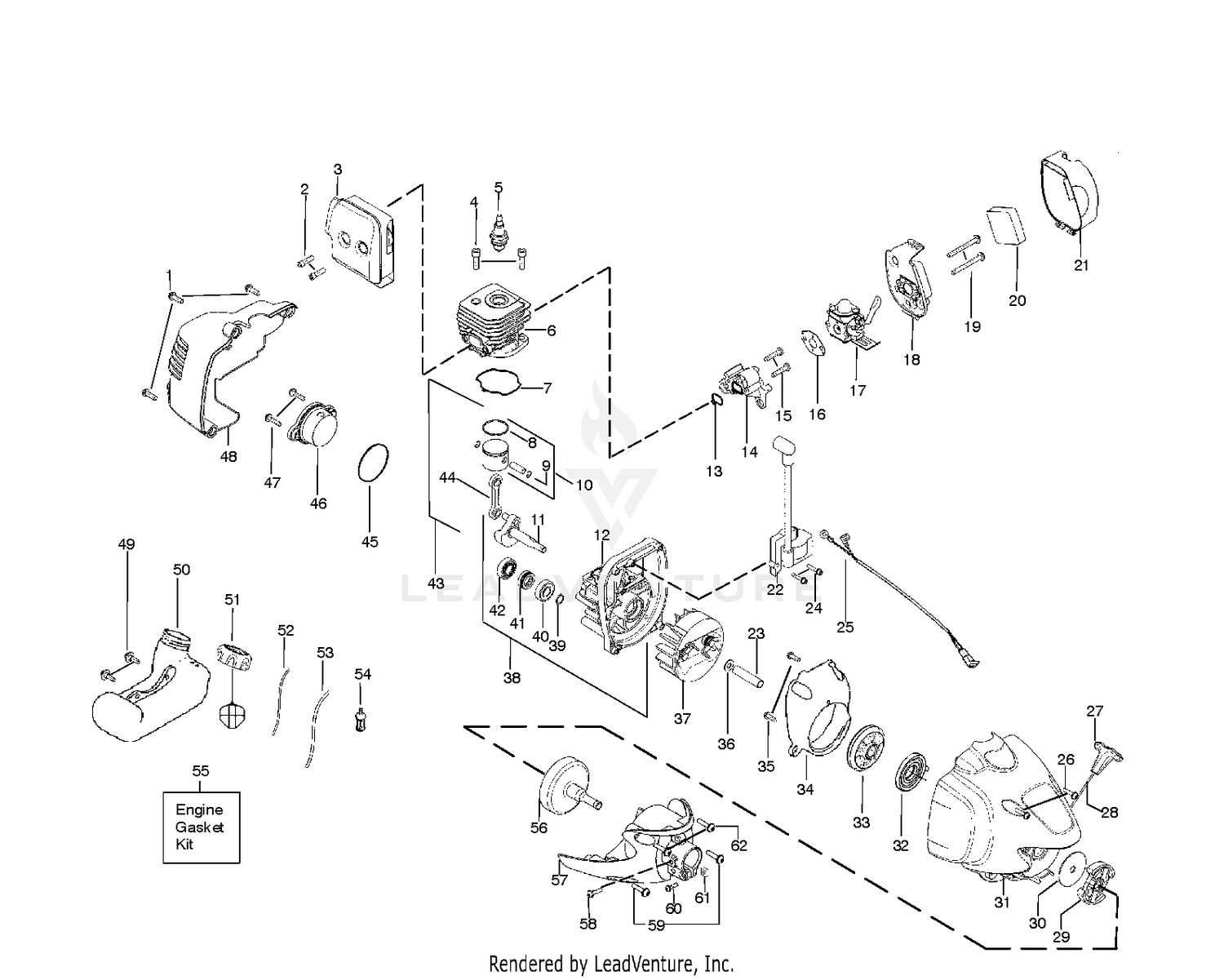

| Ref | Part Number | Description |
|---|
| 1 |
530015880 |
Screw - Line Limiter Price: $1.99 |
| 2 |
530058982 |
Bolt - Muffler Price: $1.99 |
| 3 |
591429901 |
NEEDS DESCRIPTION Price: Call Us |
| 4 |
530015953 |
Screw - Cylinder Price: $1.99 |
| 5 |
503235111 |
BPMR7A NGK SPARK PLUG Price: $3.99 |
| 6 |
530012541 |
Cylinder - Machined (25cc) Price: $11.99 |
| 7 |
530071750 |
Seal-Cyl/Carb. (kit) Price: $8.99 |
| 8 |
545154008 |
NEEDS DESCRIPTION Price: Call Us |
| 9 |
530015162 |
Retainer - Wrist Pin (PRO150 Only) Price: $1.99 |
| 10 |
530071833 |
Kit - Piston Price: $22.99 |
| 11 |
545145802 |
ASSY CRANKSHAFT Price: $17.99 |
| 12 |
530012582 |
Assy - Crankcase Price: $12.99 |
| 13 |
530071750 |
Seal-Cyl/Carb. (kit) Price: $8.99 |
| 14 |
530057547 |
ADAPTOR CARBURETOR Price: $7.99 |
| 15 |
530016441 |
Screw .20 x 32 Price: $1.99 |
| 16 |
530071750 |
Seal-Cyl/Carb. (kit) Price: $8.99 |
| 17 |
530071811 |
Kit-Carb. Zama (C1U-W18) Price: $32.99 |
| 18 |
545077501 |
BASE AIR BOX PP GOLD Price: $7.99 |
| 19 |
530016428 |
Screw Price: $1.99 |
| 21 |
530057545 |
COVER AIR BOX FE Price: $3.99 |
| 22 |
545081826 |
Kit - Ignition Module This part replaces 530039229. Price: $32.99 |
| 23 |
530059758 |
Spacer-Flywheel Price: $4.99 |
| 24 |
530016357 |
Screw-Ignition Module Price: $1.99 |
| 25 |
530047278 |
Assy-Lead Wire New Style (type 2) Price: $4.99 |
| 26 |
530016386 |
Screw-Fan Housing/Shroud Price: $5.99 |
| 27 |
530054834 |
HANDLE STARTER BLK Price: $1.99 |
| 28 |
545050409 |
Kit - Rope Price: $4.99 |
| 29 |
530055122 |
ASSEMBLY CLUTCH Price: $8.99 |
| 30 |
530094189 |
Clutch Washer-Models HP22T, HP30SB Price: $2.99 |
| 31 |
576622101 |
ASSY FAN HSG BLACK Price: $19.99 |
| 32 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 33 |
545050407 |
Kit - Starter Pulley Price: $11.99 |
| 34 |
545080601 |
BAFFLE FAN Price: $6.99 |
| 35 |
530015880 |
Screw - Line Limiter Price: $1.99 |
| 36 |
530016463 |
Washer-Clutch Flat Price: $1.99 |
| 37 |
577235901 |
ASSY FLYWHEEL Price: $9.99 |
| 38 |
545102101 |
ASSY CRANKCASE & CRANKSHAFT This part replaces 530071951. Price: $19.99 |
| 39 |
530015941 |
Ring - Crankshaft Retainer Price: $1.99 |
| 40 |
530055728 |
Bearing - Outer Price: $6.99 |
| 41 |
530019264 |
Seal - Crankshaft Price: $2.99 |
| 42 |
530032125 |
Bearing - Inner Price: $11.99 |
| 43 |
530071785 |
Kit - Piston and Rod Price: $29.99 |
| 44 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 45 |
530071750 |
Seal-Cyl/Carb. (kit) Price: $8.99 |
| 46 |
530057954 |
Assy-Plug (incl.45) Price: $3.99 |
| 47 |
530016386 |
Screw-Fan Housing/Shroud Price: $5.99 |
| 48 |
530057539 |
SHROUD REAR BLACK Price: $7.99 |
| 49 |
530016445 |
Screw - Fuel Tank Retainer Price: $1.99 |
| 51 |
578931604 |
FUEL CAP ASSY LOW PERMEATION Price: $4.99 |
| 55 |
530071750 |
Seal-Cyl/Carb. (kit) Price: $8.99 |
| 56 |
530150247 |
ASSY CLUTCH DRUM W/ADPT Price: $17.99 |
| 57 |
545077301 |
Assy-Clutch Cover Price: $5.99 |
| 58 |
530016319 |
Screw-Align Price: $1.99 |
| 59 |
530015772 |
SCREW-10-24 X 1" (TAP.) Price: $1.99 |
| 60 |
530016381 |
SCREW 12-24 X 5/8 Price: $2.99 |
| 61 |
530016382 |
NUT SQUARE 12-24 Price: $2.99 |
| 62 |
530015814 |
Screw-Shroud/Blower Hsg. Price: $1.99 |
