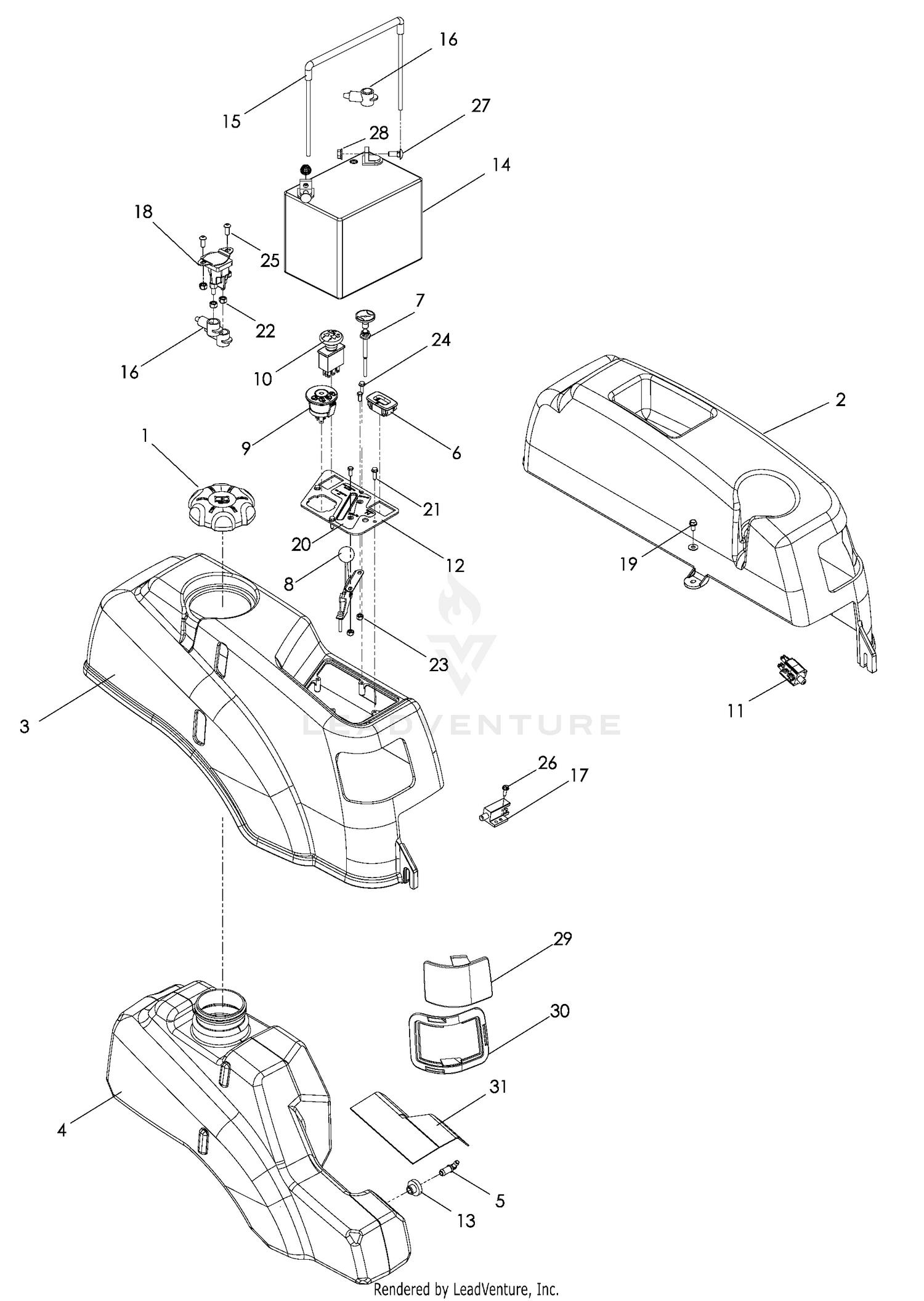

| Ref | Part Number | Description |
|---|
| 1 |
3211-17 |
SCREW-HH Price: Call Us |
| 1 |
539130393 |
FUEL CAP, HTC Price: $19.99 |
| 2 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 2 |
539130374 |
FENDER, LT Price: $74.99 |
| 3 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 3 |
539130375 |
RP.FENDER, RT Price: $44.99 |
| 4 |
3219-3 |
NUT-HEX Price: $0.34 |
| 4 |
522524801 |
TANK, FUEL Price: $84.99 |
| 5 |
5-1730 |
DISCONTINUED Price: Call Us |
| 5 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 6 |
5-1727 |
DISCONTINUED Price: Call Us |
| 6 |
576179401 |
HOUR METER This part replaces 539110074. Price: $27.99 |
| 7 |
5-1744 |
DISCONTINUED Price: Call Us |
| 7 |
539112439 |
CHOKE CABLE This part replaces 539130209. Price: $29.99 |
| 8 |
3220-7 |
NUT-JAM Price: $4.09 |
| 8 |
539112734 |
THROTTLE CABLE Price: $29.99 |
| 9 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 9 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 10 |
5-1743 |
DISCONTINUED Price: Call Us |
| 10 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 539101768. Price: $24.99 |
| 11 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 11 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 12 |
5-1752 |
DISCONTINUED Price: Call Us |
| 12 |
539112735 |
CONSOLE.PLATE.BLACK Price: $9.99 |
| 13 |
287-5 |
DISCONTINUED Price: Call Us |
| 13 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 14 |
5-1746 |
DISCONTINUED Price: Call Us |
| 14 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 15 |
5-1751 |
DISCONTINUED Price: Call Us |
| 15 |
539131209 |
BATTERY TIE DOWN ASSEMBLY Price: $27.99 |
| 16 |
3257-14 |
KEY Price: $6.19 |
| 16 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 17 |
271-10 |
DISCONTINUED Price: Call Us |
| 17 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 18 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 18 |
539101714 |
SOLENOID Price: $22.99 |
| 19 |
3-4751 |
DISCONTINUED Price: Call Us |
| 19 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 20 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 20 |
539112740 |
DECAL, IGNITION CONSOLE Price: $4.99 |
| 21 |
236-1 |
DISCONTINUED Price: Call Us |
| 21 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 22 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 22 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 23 |
4P-7A |
Bushing Price: Call Us |
| 23 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 24 |
59-9740 |
FLEX DRAW LATCH ASM This part replaces 2-4939. Price: $36.89 |
| 24 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 25 |
5-1745 |
DISCONTINUED Price: Call Us |
| 25 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 26 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 26 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 27 |
5-1741 |
DISCONTINUED Price: Call Us |
| 27 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 28 |
5-1742 |
DISCONTINUED Price: Call Us |
| 28 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 29 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 29 |
539110457 |
LEFT HEADLIGHT LENS This part replaces 539110056. Price: $4.99 |
| 30 |
321-5 |
SCREW-HH Price: $0.22 |
| 30 |
539110453 |
RT HEADLIGHT LENS This part replaces 539110057. Price: $4.99 |
| 31 |
3217-6 |
NUT-HEX Price: $1.19 |
| 31 |
539110455 |
LEFT HEADLIGHT RIM GREY Price: $4.99 |
| 32 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 33 |
3-4805 |
DISCONTINUED Price: Call Us |
| 34 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 35 |
3219-2 |
NUT-HEX Price: $0.37 |
| 36 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 37 |
3210-4 |
SCREW-HH Price: $0.81 |
| 38 |
5-1756 |
DISCONTINUED Price: Call Us |
| 39 |
5-1755 |
DISCONTINUED Price: Call Us |
| 40 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 41 |
5-1757 |
DISCONTINUED Price: Call Us |
| 42 |
5-1758 |
DISCONTINUED Price: Call Us |
| 43 |
3258-53 |
Screw Price: Call Us |
| 44 |
3220-1 |
NUT-JAM Price: $0.99 |
| 45 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 46 |
251-165 |
BEARING-BALL Price: $104.65 |
| 47 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 48 |
323-5 |
SCREW-HH Price: $0.41 |
| 49 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 522559101 |
SHIELD, |
HEAT Price: $32.99 522559101 |
| 539102733 |
CHOKE |
CONTROL, COMPLETE This part replaces 539130207. Price: $49.99 539102733 |
| 539103275 |
THROTTLE |
CABLE Price: $27.99 539103275 |
| 539110451 |
RT |
HEADLIGHT RIM GREY Price: $4.99 539110451 |
