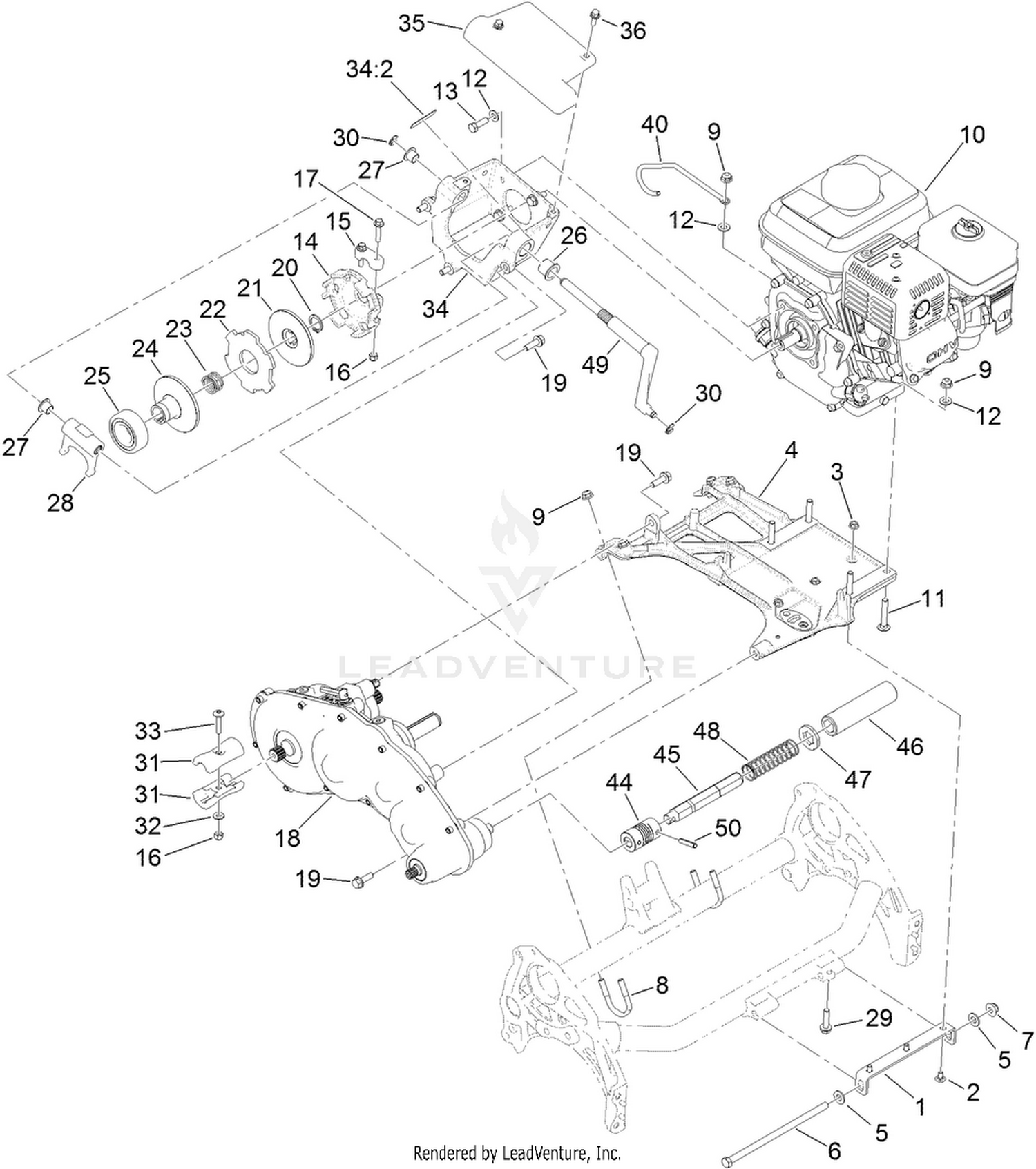

| Ref | Part Number | Description |
|---|
| 1 |
138-1623-01 |
BRACKET-MOUNT, ENGINE Price: $10.82 |
| 2 |
116-5611 |
Bolt-Carriage 1/4-20 x 1/2 short neck Price: $3.32 |
| 3 |
32128-10 |
NUT-LOCK, HHF Price: $0.27 |
| 4 |
138-5517 |
BASE-ENGINE Price: $116.91 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
323-30 |
SCREW-HH Price: $22.99 |
| 7 |
119-4042 |
NUT-HF, NI Price: $0.69 |
| 8 |
137-0301 |
CLAMP-TUBE Price: $9.09 |
| 9 |
119-4041 |
NUT-HF Price: $0.48 |
| 11 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
131-5919 |
SCREW-HH, PATCH Price: $0.54 |
| 14 |
138-3542 |
HUB-CLUTCH, EXTERNAL Price: $71.23 |
| 15 |
138-5522 |
CLAMP-HUB, CLUTCH Price: $13.57 |
| 16 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 17 |
127-8639 |
SCREW-HHF Price: $0.49 |
| 18 |
140-9324 |
KIT-TRANSMISSION REPLACEMENT This part replaces 130-6820. Price: $2,180.47 |
| 19 |
115-5142 |
SCREW-HHF Price: $0.82 |
| 20 |
32151-33 |
RING-RETAINING, EXT Price: $3.09 |
| 21 |
133-9095 |
DISC-CLUTCH Price: $34.68 |
| 22 |
133-9094 |
PLATE-FRICTION Price: $57.87 |
| 23 |
133-9123 |
SPRING-COMPRESSION, CLUTCH Price: $3.78 |
| 24 |
138-1508 |
DISC-CLUTCH, SLIDER Price: $39.53 |
| 25 |
138-1505 |
BEARING-SEALED, SELF ALIGNING Price: $18.21 |
| 26 |
132-4089 |
BUSHING Price: $4.45 |
| 27 |
125-5239 |
BUSHING-FLANGE Price: $4.21 |
| 28 |
138-3548 |
FORK-CLUTCH Price: $380.46 |
| 29 |
112-6913 |
SCREW-HHF Price: $6.28 |
| 30 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 31 |
133-9100 |
COUPLER-SPLINED, 4 TOOTH Price: $10.76 |
| 32 |
119-8952 |
WASHER Price: $0.77 |
| 33 |
126-8232 |
SCREW-TRUSS Price: $1.02 |
| 34 |
139-4301 |
BELL HOUSING ASM Price: $127.15 |
| 35 |
138-5545 |
COVER-CLUTCH Price: $73.83 |
| 36 |
120-9678 |
SCREW-HHF Price: $0.42 |
| 40 |
139-4309 |
GUIDE-CABLE Price: $11.25 |
| 44 |
133-2341 |
COUPLING-HELICAL Price: $267.48 |
| 45 |
139-7379 |
SHAFT-COUPLER Price: $42.58 |
| 46 |
110-2390 |
TUBE-HEX Price: $83.11 |
| 47 |
139-7391 |
COLLAR-LOCK Price: $2.73 |
| 48 |
139-7390 |
SPRING-COMPRESSION Price: $5.84 |
| 49 |
138-3549 |
SHAFT-FORK Price: $144.02 |
