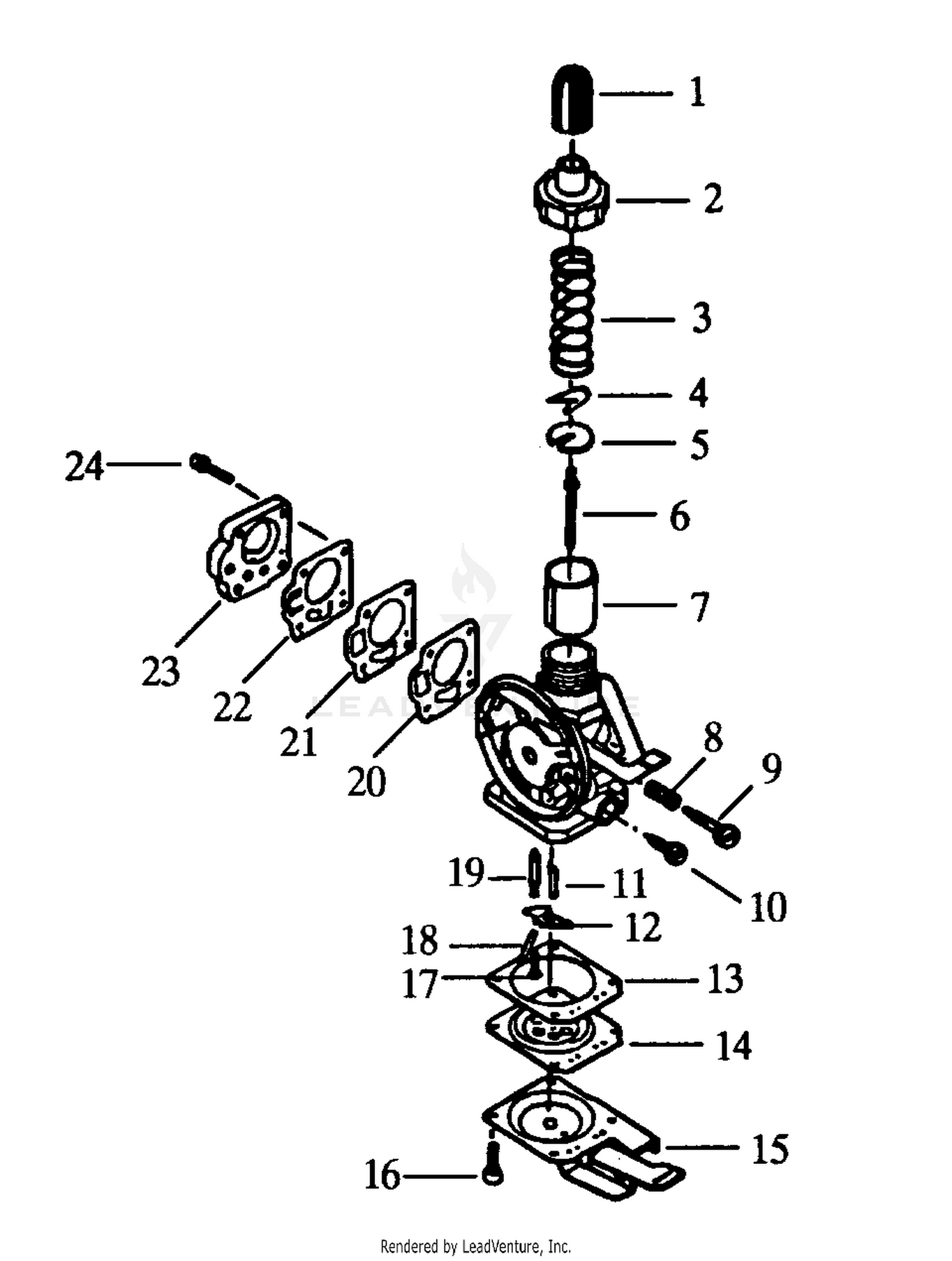

CARBURETOR
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530089268 | Cap Price: $2.88 |
| 1 | SGH08701-03 | HEAD-TINE, ADAPTER Price: $272.95 |
| 2 | 530089269 | Cap Price: $10.48 |
| 3 | 530089270 | Spring Price: $1.72 |
| 4 | 530089271 | Clip Price: $8.99 |
| 5 | 530089272 | Retainer Price: $1.52 |
| 6 | 530089273 | Jet Needle Price: $22.99 |
| 7 | 530089274 | Throttle Valve Price: $22.99 |
| 8 | 530089275 | Spring Price: $4.60 |
| 9 | 530089344 | Screw Price: $6.99 |
| 10 | 530089276 | Jet Needle Price: $3.33 |
| 11 | 530089277 | Spring Price: $5.99 |
| 12 | 530089265 | Arm Float Price: $3.33 |
| 13 | 530089278 | Gasket Price: $3.33 |
| 14 | 530089267 | Cover Price: $22.99 |
| 15 | 530089279 | Diaphragm Price: $3.33 |
| 16 | 530089343 | Screw&Washer Price: $0.28 |
| 17 | 530089342 | Screw Price: $0.20 |
| 18 | 530089266 | Pin Float Price: $2.32 |
| 19 | 530089264 | Needle Valve Price: $3.33 |
| 20 | 530089263 | Gasket Price: $2.99 |
| 21 | 530089262 | Check Valve Price: $3.33 |
| 22 | 530089261 | Diaphragm Price: $3.33 |
| 23 | 530089260 | Pump Cover Price: $25.64 |
