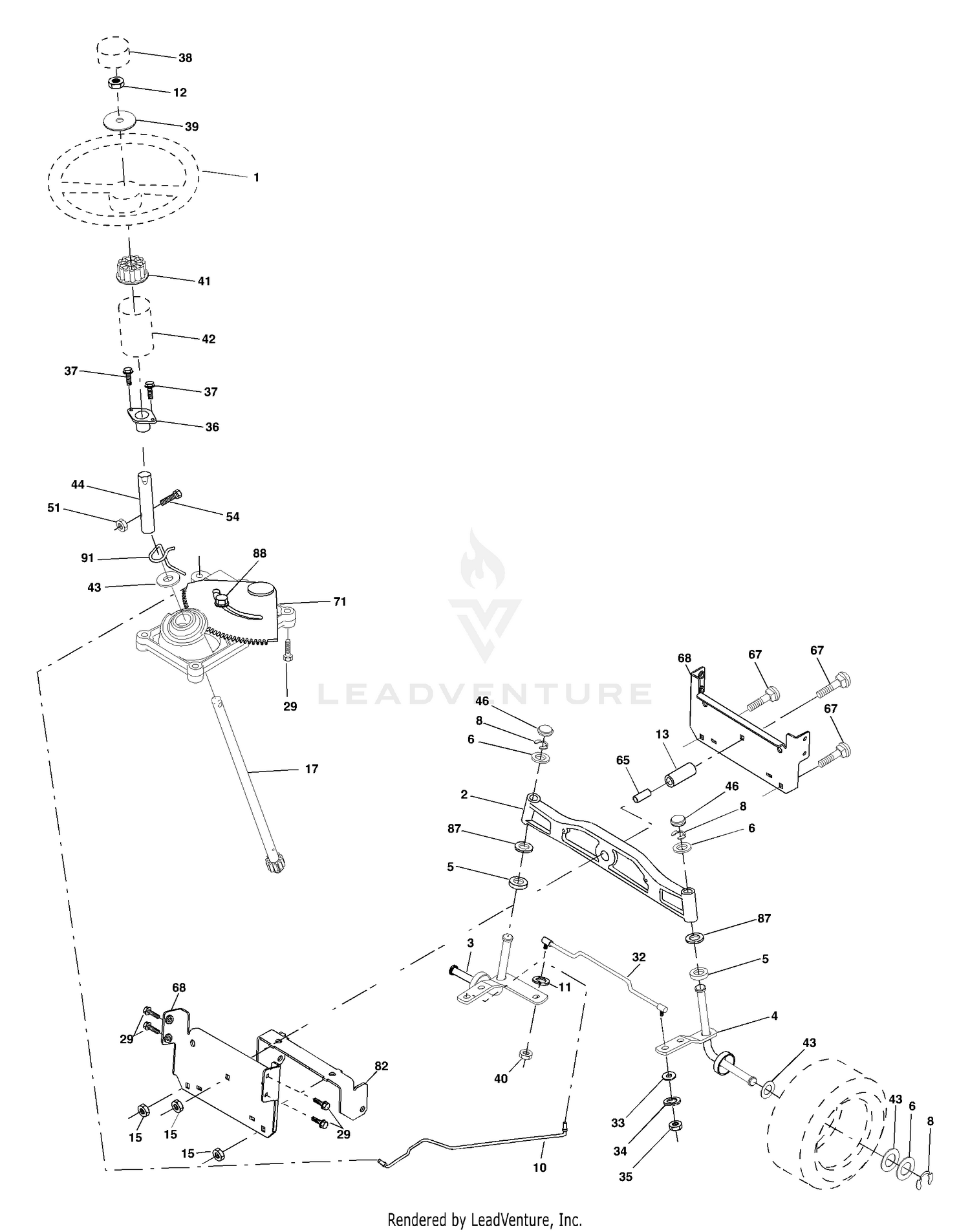

| Ref | Part Number | Description |
|---|
| 1 |
159944X428 |
Wheel Steering Price: Call Us |
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 2 |
172393 |
Axle Asm Cast Iron LT Price: Call Us |
| 2 |
321-9 |
SCREW-HH Price: $0.27 |
| 3 |
115-6668 |
LEVER-PUMP This part replaces 108-6555-03. Price: $209.01 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 5 |
32105-21 |
SCREW-HH Price: $1.09 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 6 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 7 |
3219-2 |
NUT-HEX Price: $0.37 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
29-6120-03 |
PUMP PLATE ASM Price: $93.02 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 12 |
110-9650 |
LEAF SPRING ASM Price: $33.06 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 13 |
136518 |
Spacer Brg Axle Front Price: Call Us |
| 13 |
321-6 |
SCREW-HH Price: $0.25 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
251-259 |
BEARING-BALL Price: $13.67 |
| 16 |
3210-7 |
SCREW-HH Price: $0.61 |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 17 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 19 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 21 |
3296-9 |
NUT-HEX Price: $0.25 |
| 29 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 33 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 34 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 35 |
73540500 |
Crownlock Nut 5/16-24 Unf Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 39 |
19182411 |
Washer 9/16 ID X 1-1/2 OD 11 Ga Price: Call Us |
| 40 |
7810H |
Lock nut Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Steering Shaft LR/LT Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28unf x 1-1/4 Ga. 8 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1 1/2 x .14 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
