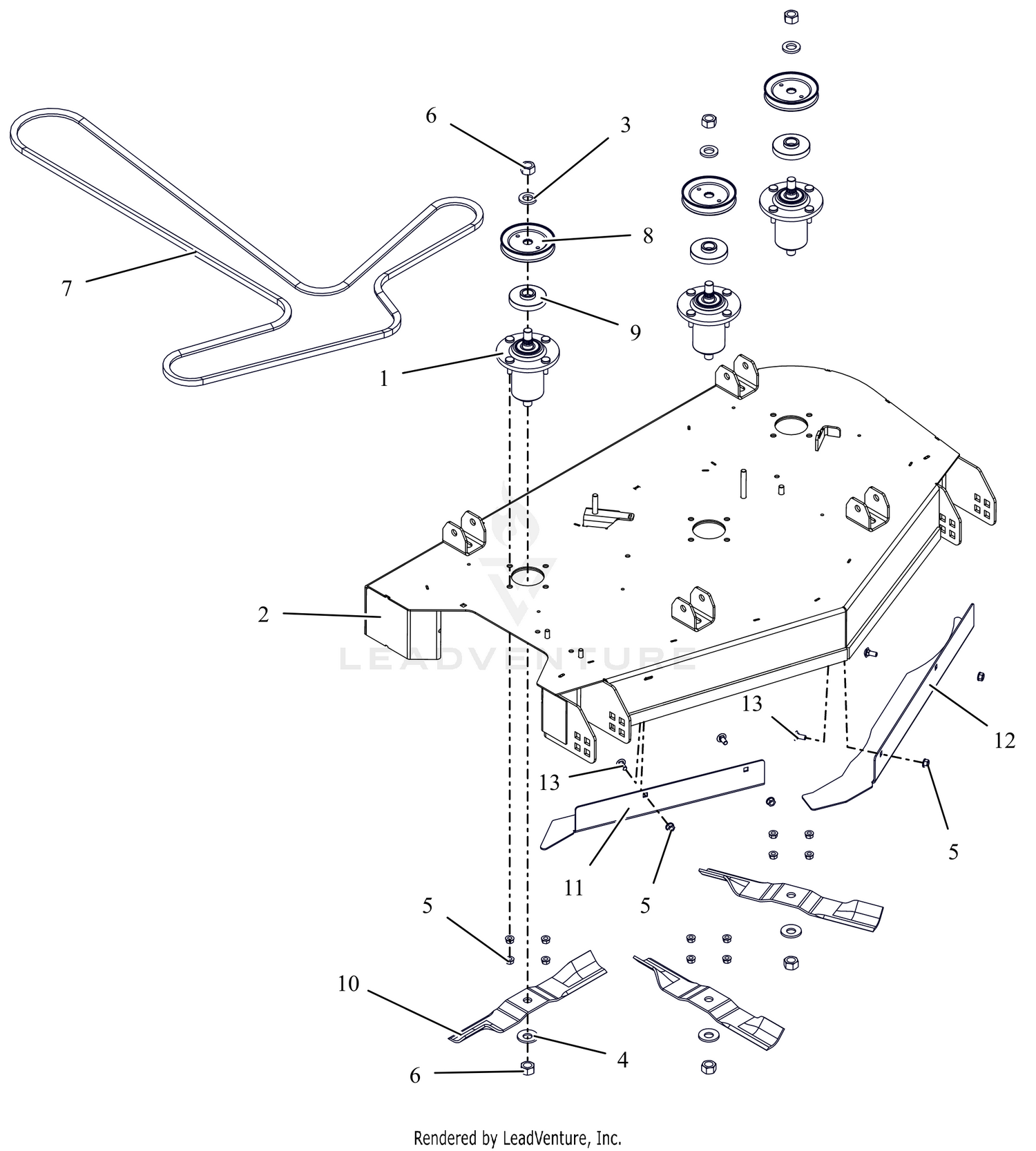

| Ref | Part Number | Description |
|---|
| 1 |
30138800 |
ASM, ALUMINUM SPINDLE SUB Price: $87.95 |
| 2 |
51800100 |
KIT,ARIENS DECK 42" WITH DECALS Price: $479.45 |
| 3 |
05501510 |
SPACER Price: $6.45 |
| 4 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 5 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 6 |
06500920 |
NUT-STD .625-18 ZCC Price: $1.95 |
| 7 |
07200436 |
V-BELT, HA-WRAPPED Price: $68.95 |
| 8 |
07351600 |
PULLEY, V-4.00 ODX.625 SPLINE ID Price: $12.45 |
| 9 |
09482000 |
SHIELD, DUST Price: $8.45 |
| 10 |
09658900 |
BLADE, MOWER 14.5" Price: $20.95 |
| 11 |
30203559 |
BAFFLE, 42" RH VACUUM (ORANGE) Price: $12.45 |
| 12 |
30203659 |
BAFFLE, 42" LH VACUUM (ORANGE) Price: $18.45 |
