Home / OPE / Riding Products / 30659, LT-F3000 Heavy-Duty Triple Turf Flail Mower, (SN 405250001-405500000) / Seat Pan Assembly

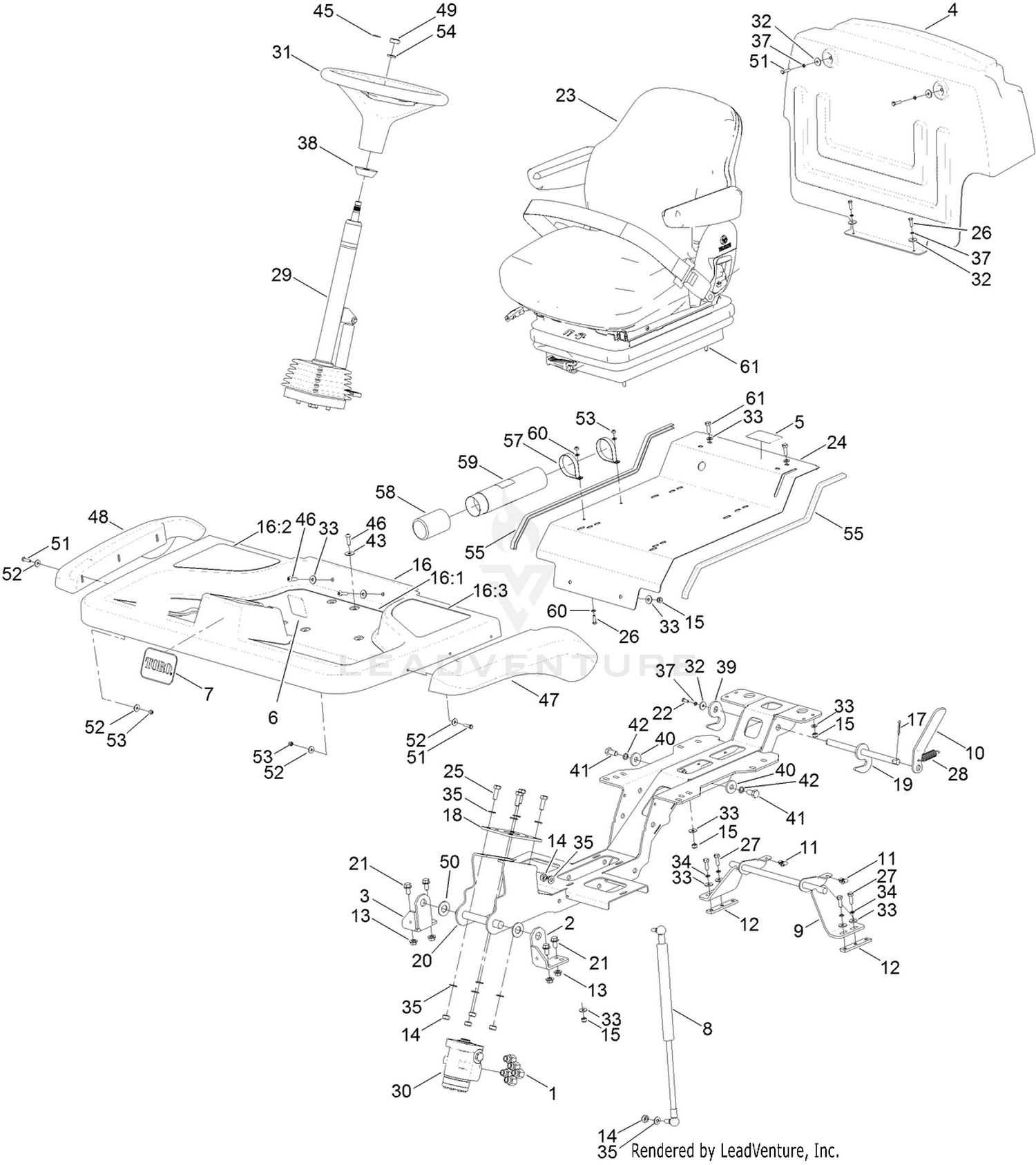

Seat Pan Assembly

Seat Pan Assembly

Parts (58)

RefPart NumberDescription
1 111-3509 ADAPTOR 3/8" BSP - T1FQLD Price: $15.31
2 111-3243-03 BRACKET PLATFORM PIVOT LH Price: $29.30
3 111-2665-03 BRACKET PLATFORM PIVOT RH Price: $28.32
4 111-8497 BULKHEAD Price: $227.36
5 111-3566 PLATFORM LATCH DECAL Price: $22.64
6 111-3562 DECAL Price: $21.00
7 67-1300 DECAL Price: $29.99
8 111-9857 GAS STRUT Price: $184.98
9 111-3140-03 LATCH BAR WELDED ASSEMBLY Price: $114.50
10 111-3269-03 LEVER PLATFORM LATCH Price: $16.31
11 410076 LUG NUT Price: $1.56
12 111-3281 NUT BAR Price: $18.16
13 63-11-015 FLANGED NUT(12.9)M10 Price: $2.54
14 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
15 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
16 111-9744 OPERATOR PLATFORM ASM Price: $510.26
17 70-11-004 SPLIT PIN 4 DIA*40 Price: $5.90
18 111-2899-03 PLATE STEERING PUMP MOUNT Price: $14.60
19 111-3266 PLATFORM LATCH W/A Price: $57.99
20 111-9565-03 SUPPORT-PLATFORM Price: $381.39
21 63-11-018 HEX HED. SCREW (DURLOCK)M10*20 Price: $7.62
22 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
23 134-0260 SEAT ASM (INCL. SEAT BELT) Price: $1,307.11
24 111-3069-03 SEAT PAN Price: $97.51
25 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
26 09363 SETSCREW M6 X 20 Price: $1.31
27 03162 STEEL BOLT Price: $1.39
28 70-07-063 EXTENSION SPRING Price: $12.85
29 111-6756 STEERING COLUMN ASM Price: $858.60
30 111-7464 VALVE-CONTROL, STEERING Price: $765.32
31 98-1471 WHEEL-STEERING Price: $145.99
32 09263 WASHER 1/4 X 7/8 X .08" THK Price: $1.34
33 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
34 03469 WASHER M8 SC SPRING Price: $1.40
35 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
37 09474 WASHER M6 SC SPRING Price: $1.34
38 93-5429 COLLAR-FOAM Price: $36.18
39 111-3268 PLATE PLATFORM LATCH Price: $53.93
40 63-01-115 WASHER Price: $2.67
41 09415 BOLT M12 X 30 GD. 8.8 PLATED Price: $1.40
42 09599 WASHER Price: $1.42
43 09270 WASHER PLAIN 5/16 X 1 X 16G Price: $1.39
45 98-1459 DECAL Price: $3.93
46 ZHS1H025U SCREW SOC HD BUTTON M8*25 Price: $1.38
47 111-4921 MUDGUARD-LH Price: $98.20
48 111-4922 MUDGUARD-RH Price: $98.20
49 09827 NUT UNF 5/8"-18 THIN Price: $1.40
50 09499 WASHER M20 PLAIN Price: $1.40
51 09364 SETSCREW M6 X 25 Price: $1.34
52 09262 WASHER 1/4 X 3/4 GALV ROOFING Price: $1.40
53 09438 NUT M6 X 1.5 PLAIN Price: $1.39
54 HY4200 WASHER Price: $1.34
55 50-08-001 MOULDING Price: $9.43
57 107-1865 R-Clamp Price: $6.86
58 104-7048 CAP-HOUSING Price: $5.21
59 104-7050 TUBE-MANUAL Price: $8.76
60 09472 WASHER-PLAIN Price: $1.25
61 09368 SCREW Price: $1.40
